Description

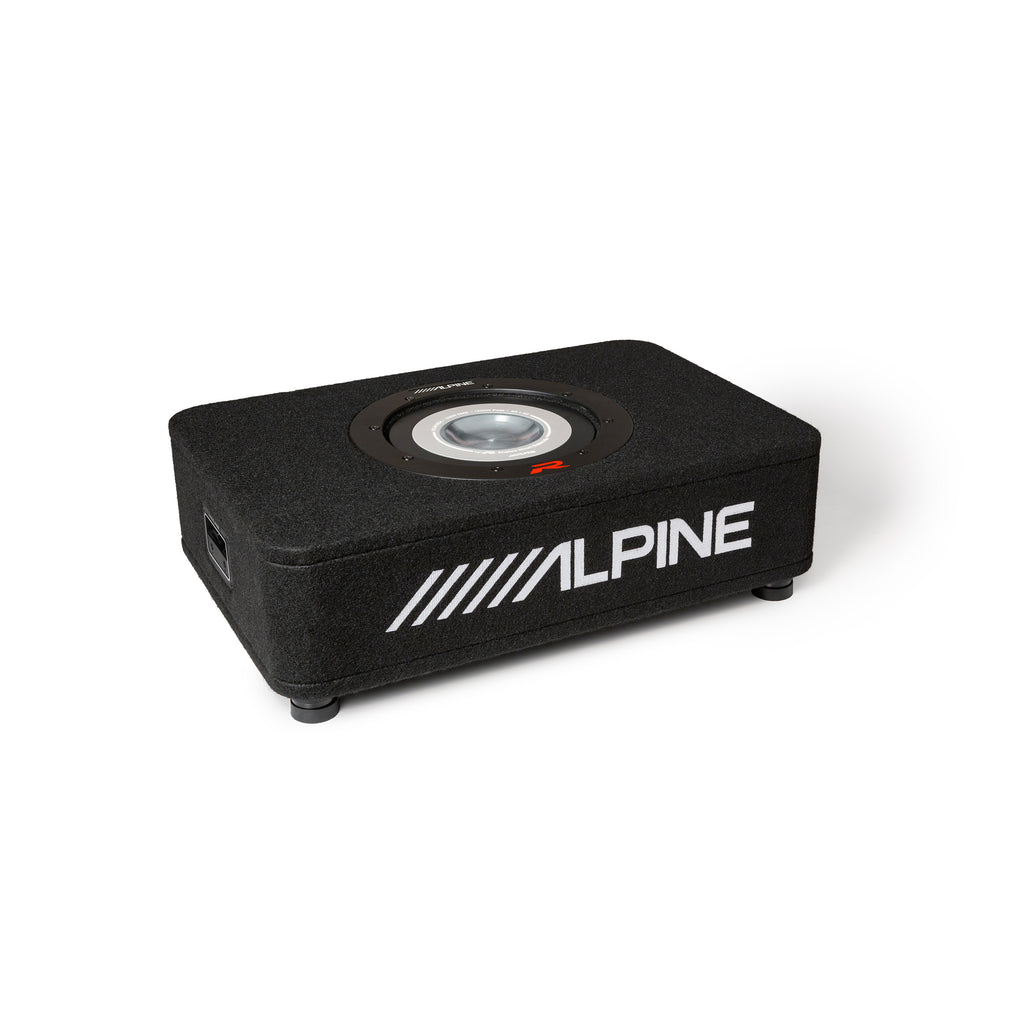

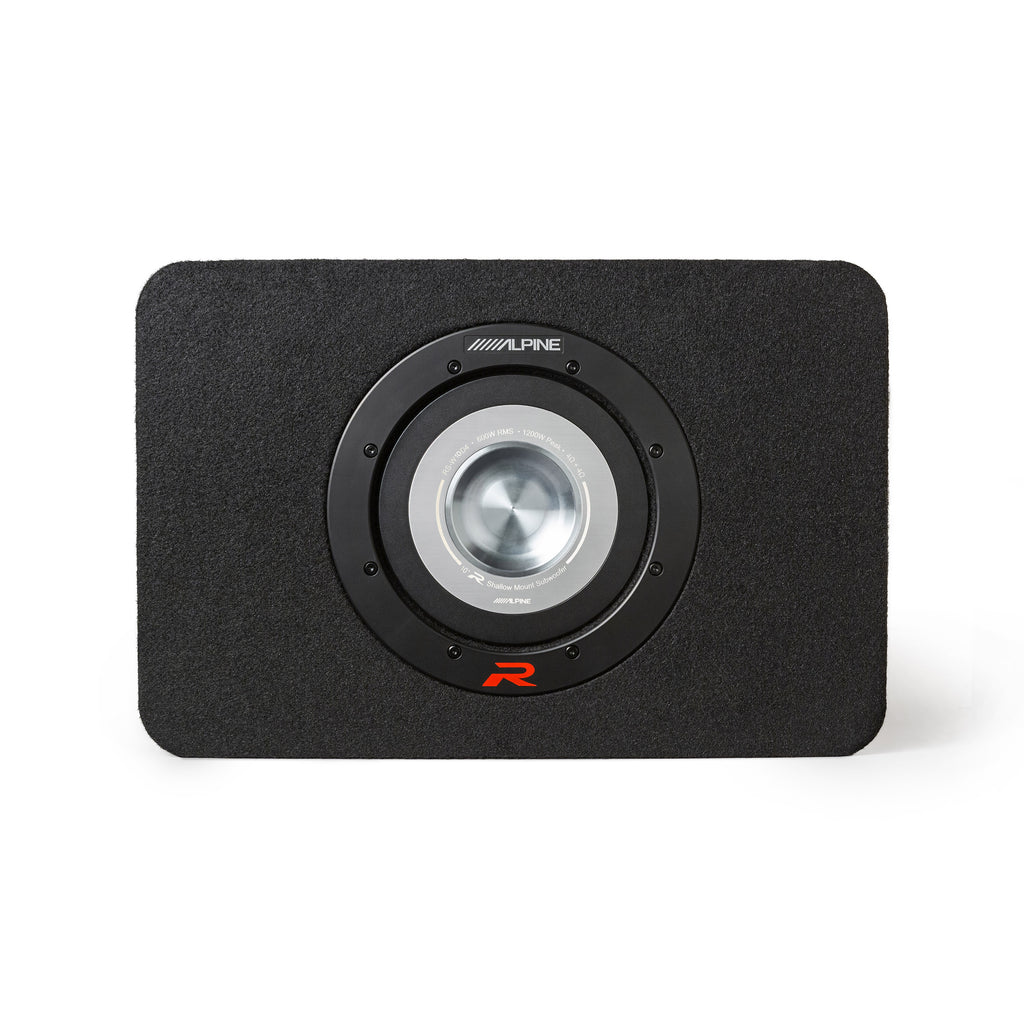

With an ultra-shallow enclosure design and powerful sound output, the R-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.

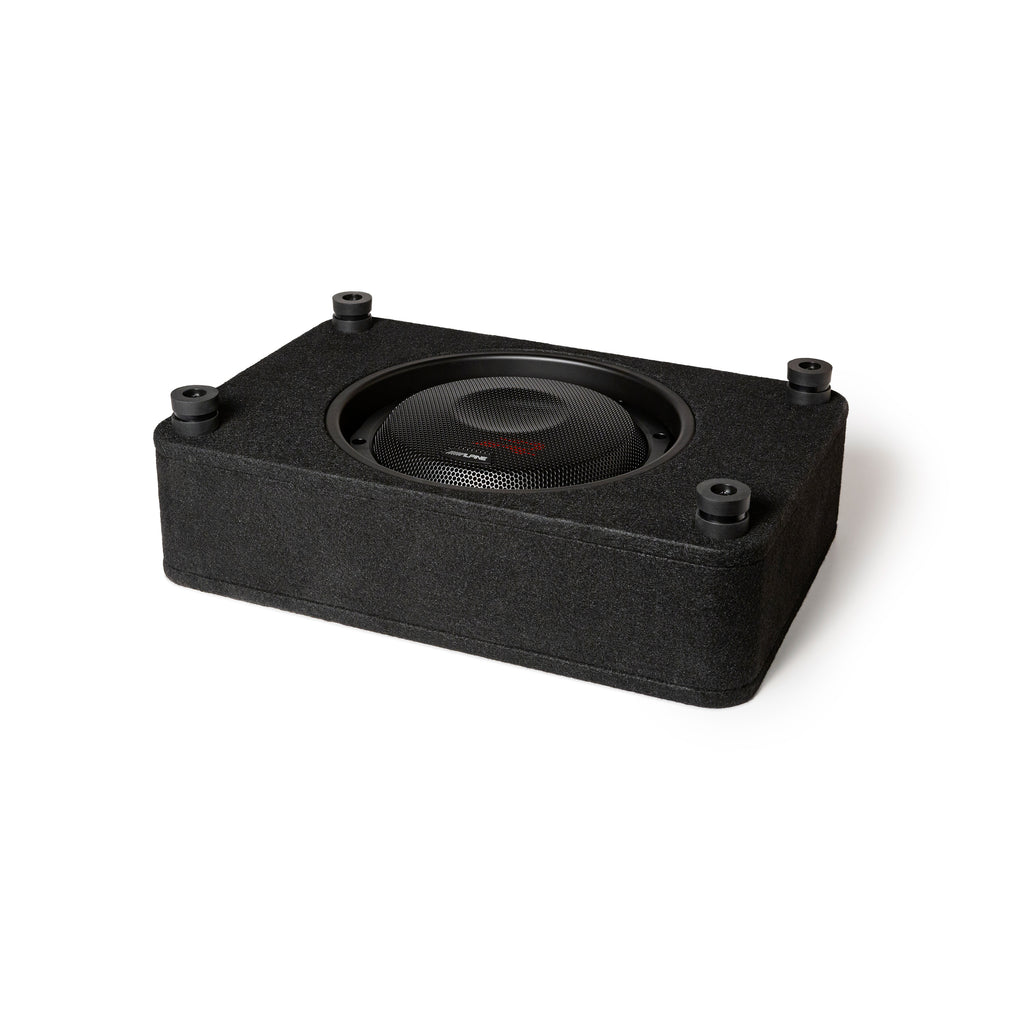

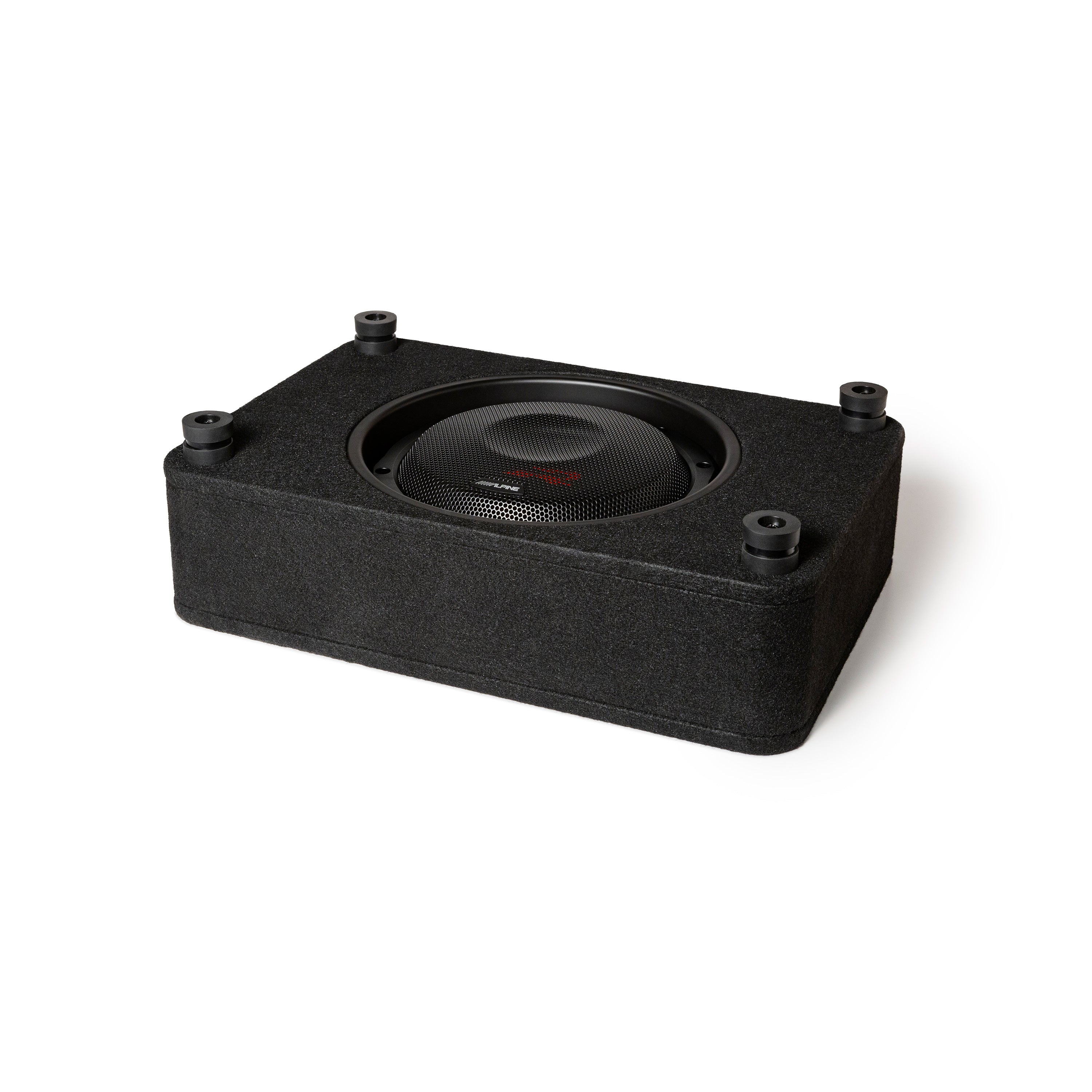

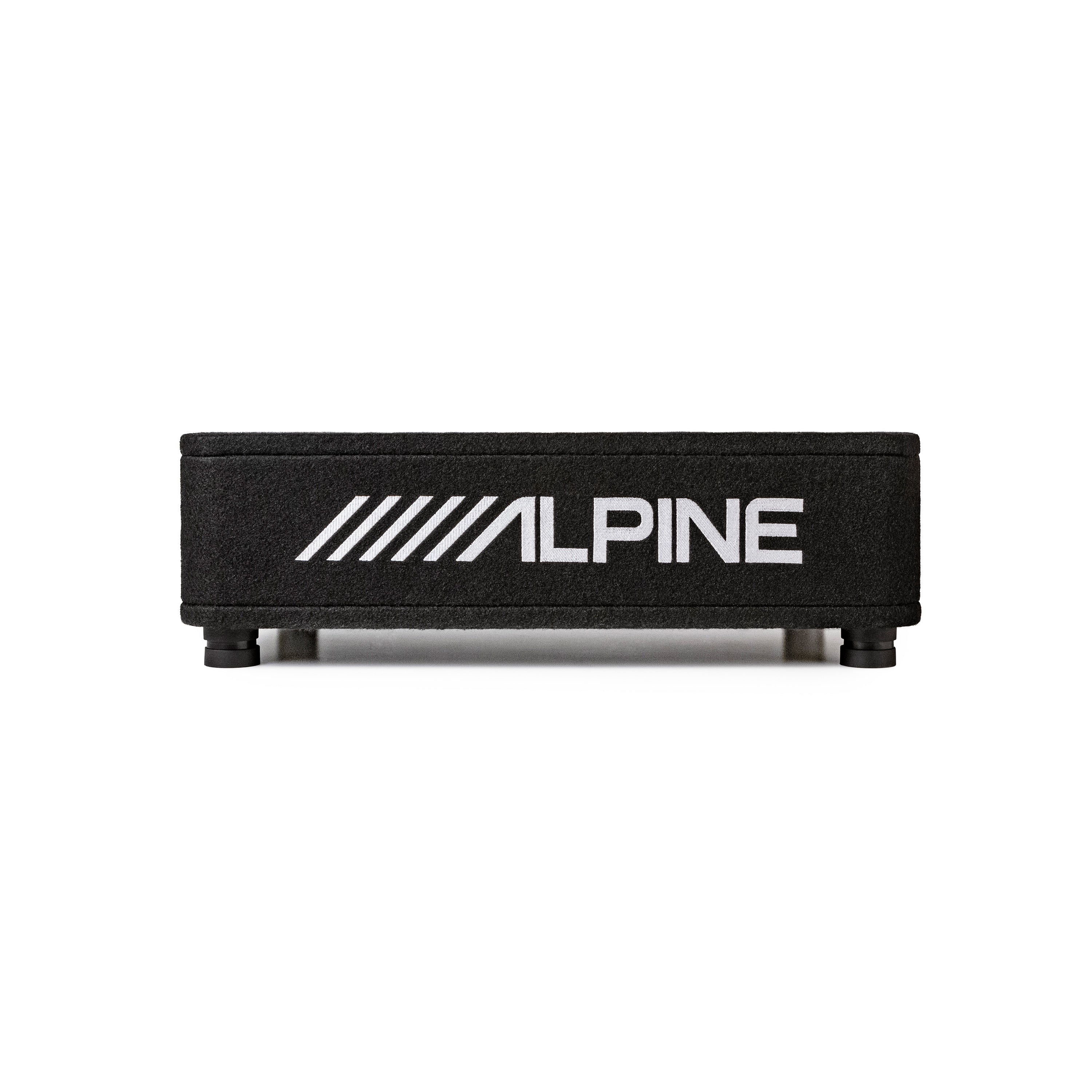

Alpine’s R-Series Alpine Halo Shallow Preloaded Subwoofer Enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
The enclosures feature the same motor movement (20MM of excursion) as the full-size R2-Series Subwoofers for extreme output in a shallow woofer design.
At the heart of the R-Series Shallow Subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime.
The Unique CoolMount™ Dual-panel mount subwoofer motor enhances cooling.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control.
The preloaded enclosures use the subwoofer frame as bracing for a more rigid design and better bass response.
A lightweight yet rigid aluminum dust cap allows the R-Series Shallow Subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance.

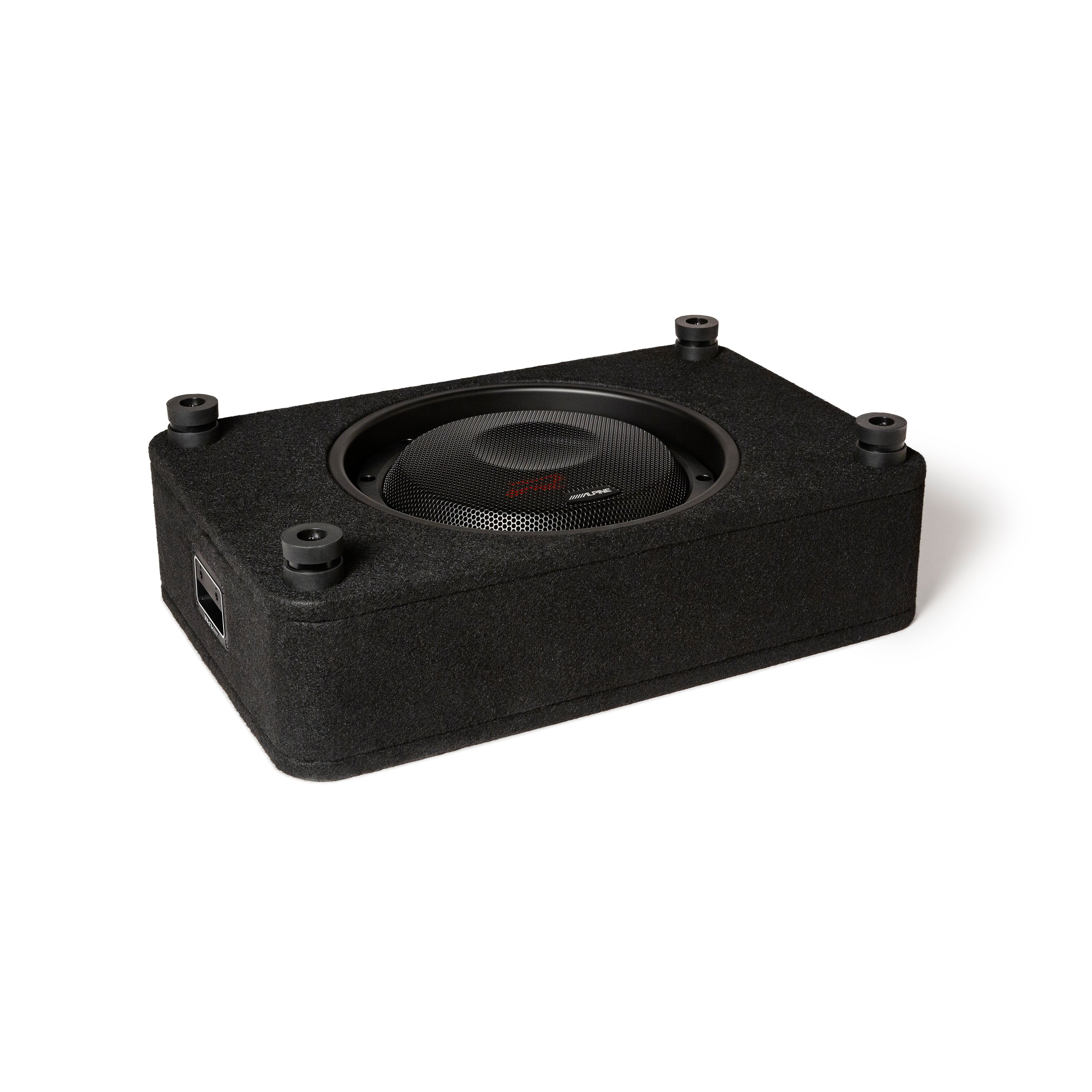

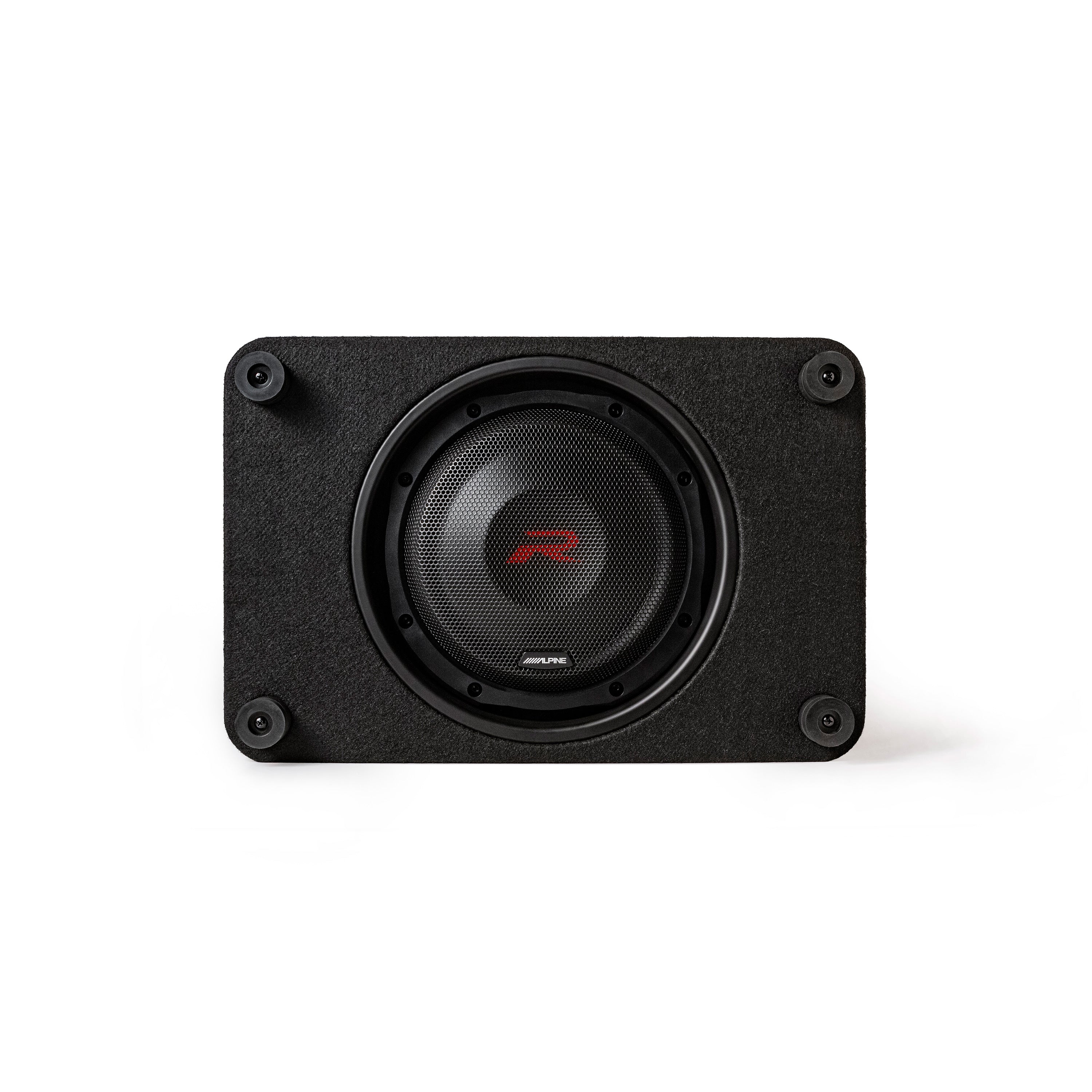

The included adjustable mounting brackets allow for down fire mount configuration.
The enclosure pulls design cues from the Alpine Halo Display with unique, curved edges.
The ¾” MDF enclosures are covered in a premium, Alpine embroidered black carpet and a protective grill is included to finish the look.
With a preloaded R-Series 10” Shallow Subwoofer that’s tuned to XXHz, the enclosure is optimized to perform with Alpine’s R-Series sound system line.
Dual voice coils are wired in parallel for a 2Ω load that’s compatible with Alpine’s S-A60M amplifier.
- Groundbreaking Shallow Alpine Halo Design
- Optimal sealed cabinet quality
- Aluminum Dust Cap
- Unique CoolMount™ Dual-panel mount
- Neodymium Magnet
- Alpine Gen2 DD Linear Magnetic Circuit
- CARB compliant ¾” MDF construction
- Premium Alpine embroidered black carpet
- Alpine-branded terminal cup
- Pre-installed steel mesh grille
- Includes a 10” R-Shallow Subwoofer
- Rubber, modular stackable foot design
- 600W RMS Power Handling
- Frequency response: 29Hz – 200Hz
- Sensitivity:
- Dual 4Ω voice coils wired in parallel for a 2Ω load (compatible with S-A60M)
- Nominal Impedance: 2Ω
- Voice Coil: 4”(101.6mm)
- Dimensions: 21.15” W x 5.25” H x 16” L
- Sealed Cabinet with (1) 10” R-Series Shallow Subwoofer
- Mounting Brackets
- Owner’s Manual
- Warranty Information
- Online product registration information
