Description
The weather-resistant HCE-C2600FD will help you steer away from obstacles in front of and on the sides of your vehicle, even in the off-road elements.
High Dynamic Range (HDR) drive assist cameras have incredible image quality in varying levels of light that eliminates image wash-out common when going from areas of heavy shade into areas with bright sunlight.
The HCE-C2600FD has three viewing modes to show obstacles on the sides and in front of your vehicle from different angles: Panorama, Corner and Ground Views.
The camera system includes automatic imaging functions such as metering and white balance adjustment for clearer viewing.
The HCE-C2600FD is compatible solely with Alpine in-dash multimedia receivers. The direct connection ensures the highest picture quality day or night. If you’re using the HCE-C2600FD along with an Alpine rear-view camera system, you need to add the KCX-C250MC Multi-Camera Selector Interface (sold separately) to switch back and forth between the images from the various cameras.
The HCE-C2600FD pairs perfectly with Alpine’s License Plate Camera Mounting Kit (KTX-C10LP – sold separately). The KTX-C10LP has a direct mount for the HCE-C1100 and a built-in LED light for extra brightness.
The HCE-C2600FD is rated at IP68 (International Protection Rating), so it’s protected from dust and water immersion up to one meter.
The HCE-C2600FD was designed to help with the unique challenges when offroading with your Jeep®. The HCE-C2600FD can also be installed as a forward-facing application underneath your Jeep®. This allows you to position the camera so it can be used to monitor the suspension or front wheels, giving you immediate viewing of these items from your Alpine touch screen.
- HDR (High Dynamic Range) technology enhances detail in light and dark conditions
- Selectable 3 View Modes (Panorama/Corner/Ground) with select Alpine head units via Direct Connection and Multi-Camera Selector
- 180-degree horizontal, 125-degree vertical viewing angles
- Automatic exposure and white balance adjustment
- Wide Illumination Range (1.5 to 100,000 Lux)

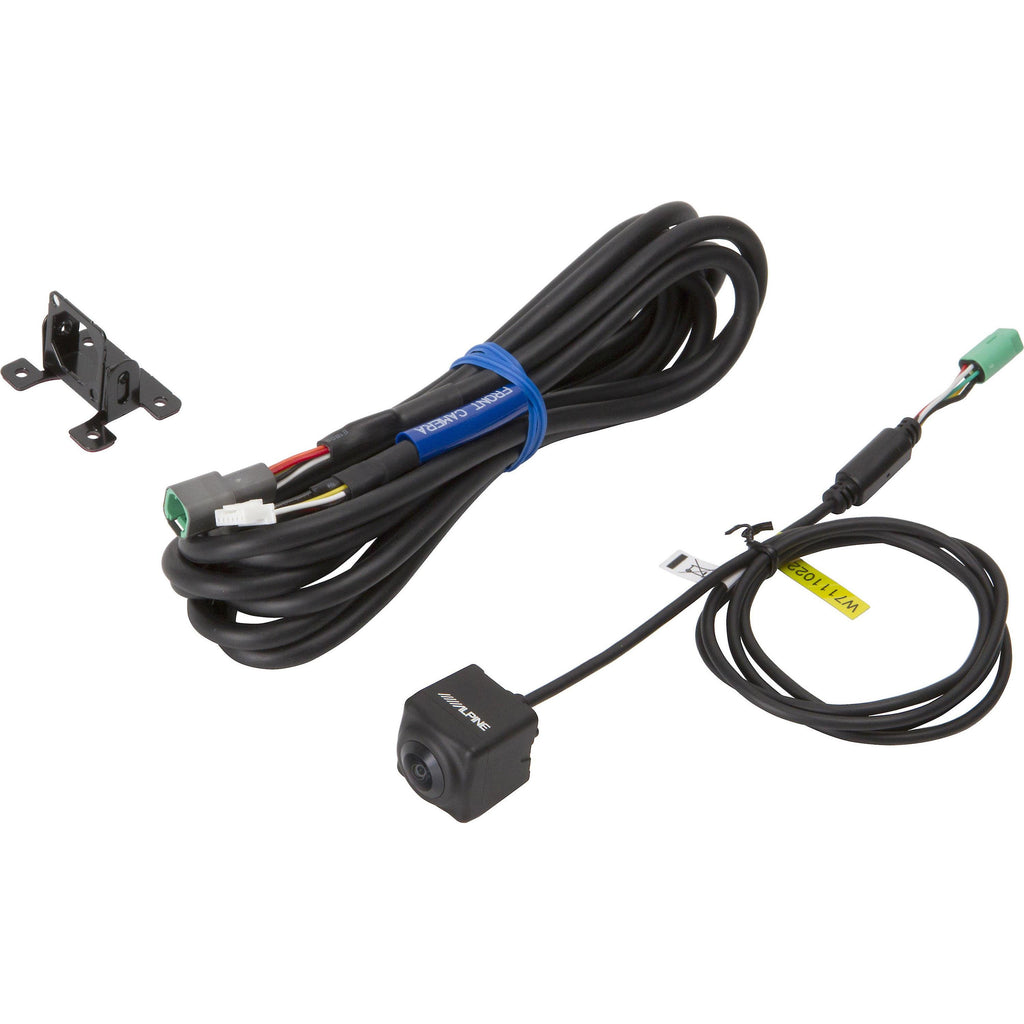

- Universal Mounting Bracket and 10ft Waterproof Direct Extension Cable Included
- Compatible with Multi-Camera Selector (KCX-C250MC or KCX-C2600B sold separately)
- Compatible with License Plate Camera Mounting Kit (KTX-C10LP sold separately)
- Wide Illumination Range (1.5 to 100,000 Lux)
- 1/4 inch CMOS Image Sensor (1280 x 960, 1.2M pixels)
- IP 68 Water and Dust-proof
- Universal Mounting Bracket and 33ft Direct Extension Cable Included
- Mounting bracket included for direct fit into compatible Smittybilt bumper (HCE-C2600FD4)
