Description
Expertly engineered for the discerning audiophile, this subwoofer isn’t merely an addition to your car audio system—it’s an investment in unparalleled sound quality that transforms every drive into a live concert experience.
Featuring the revolutionary Alpine HAMR (High Amplitude Multi-Roll) Surround technology, this subwoofer ensures maximum excursion and performance without compromising on sound quality.

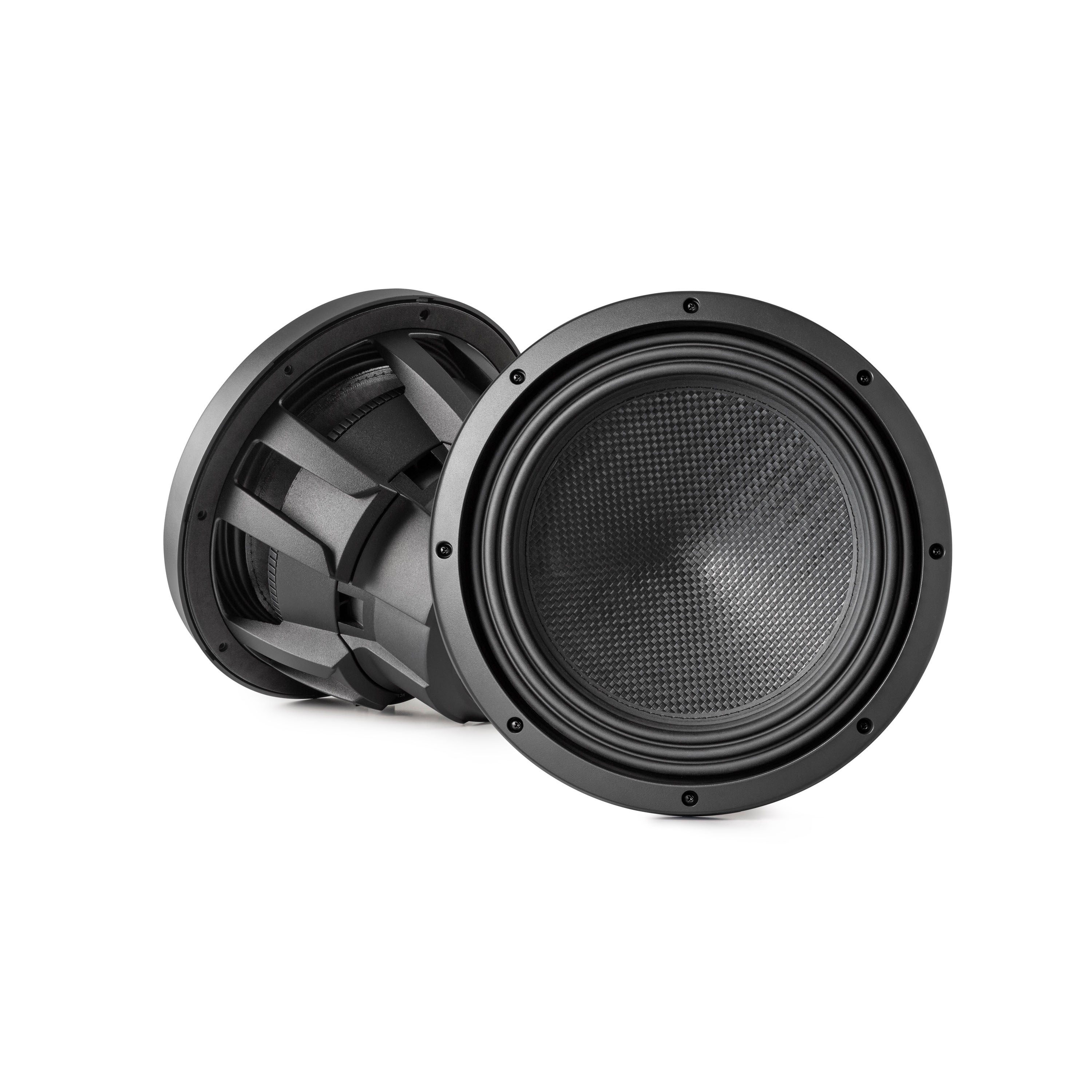

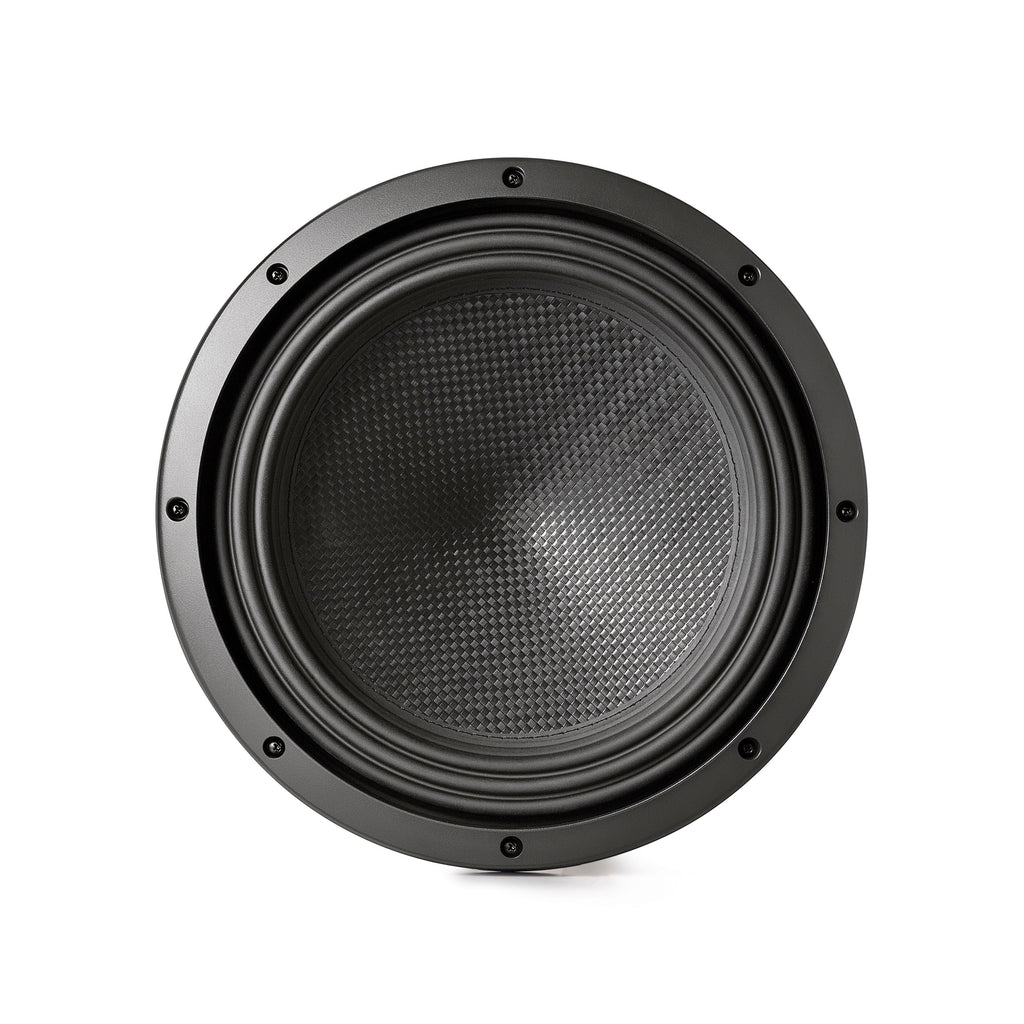

The carbon fiber dust cap and pulp-mica cone body are meticulously crafted to deliver durability and crystal-clear bass, even at high volumes.
Power through your tracks with the robust 800W RMS (2400W peak) power handling.
Coupled with triple-stacked high-power strontium ferrite magnets, this subwoofer ensures impeccable control and responsiveness, delivering deep, resonating bass for a truly immersive listening experience.
Engineered with a cast aluminum frame and premium aluminum trim ring, every detail is crafted to merge style with endurance.

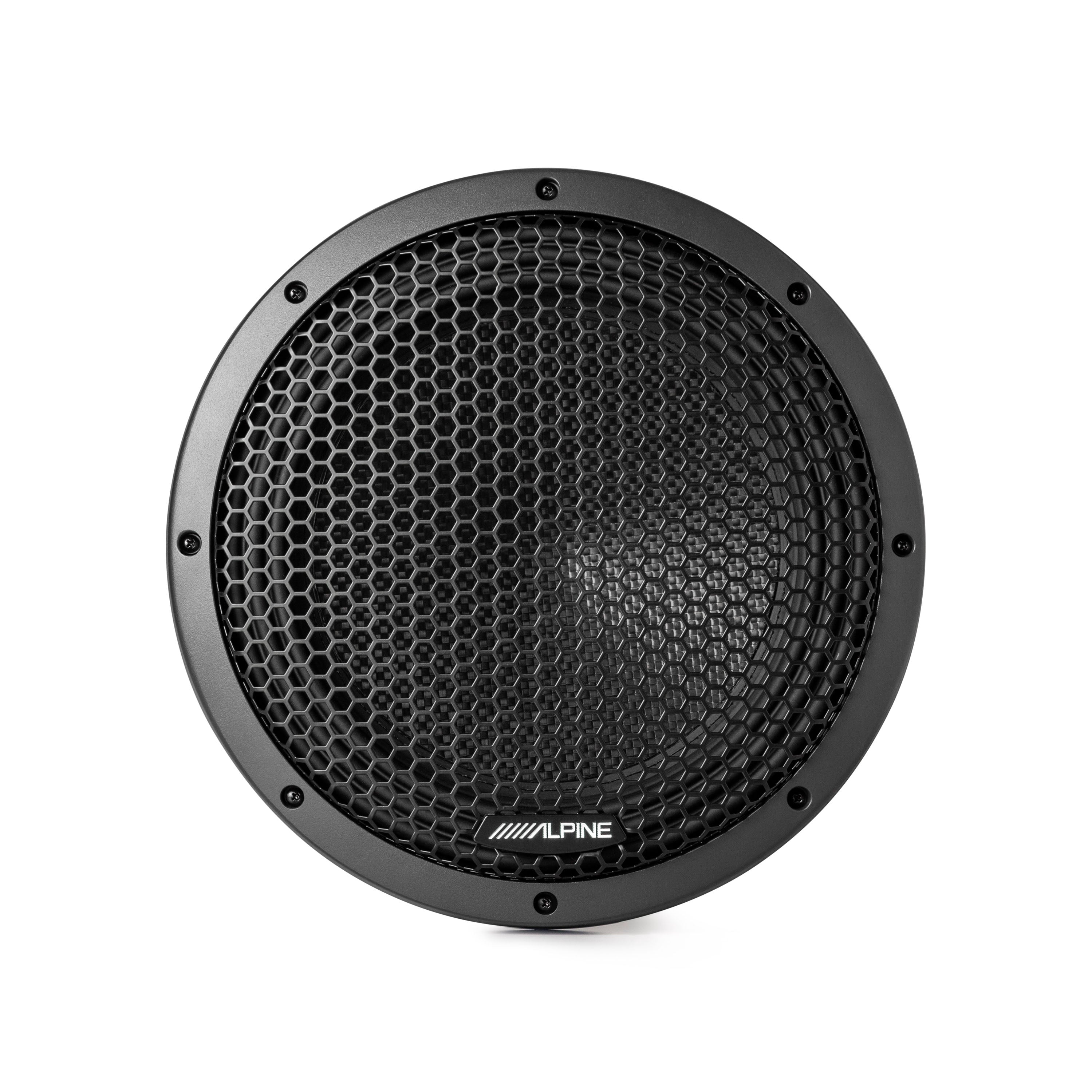

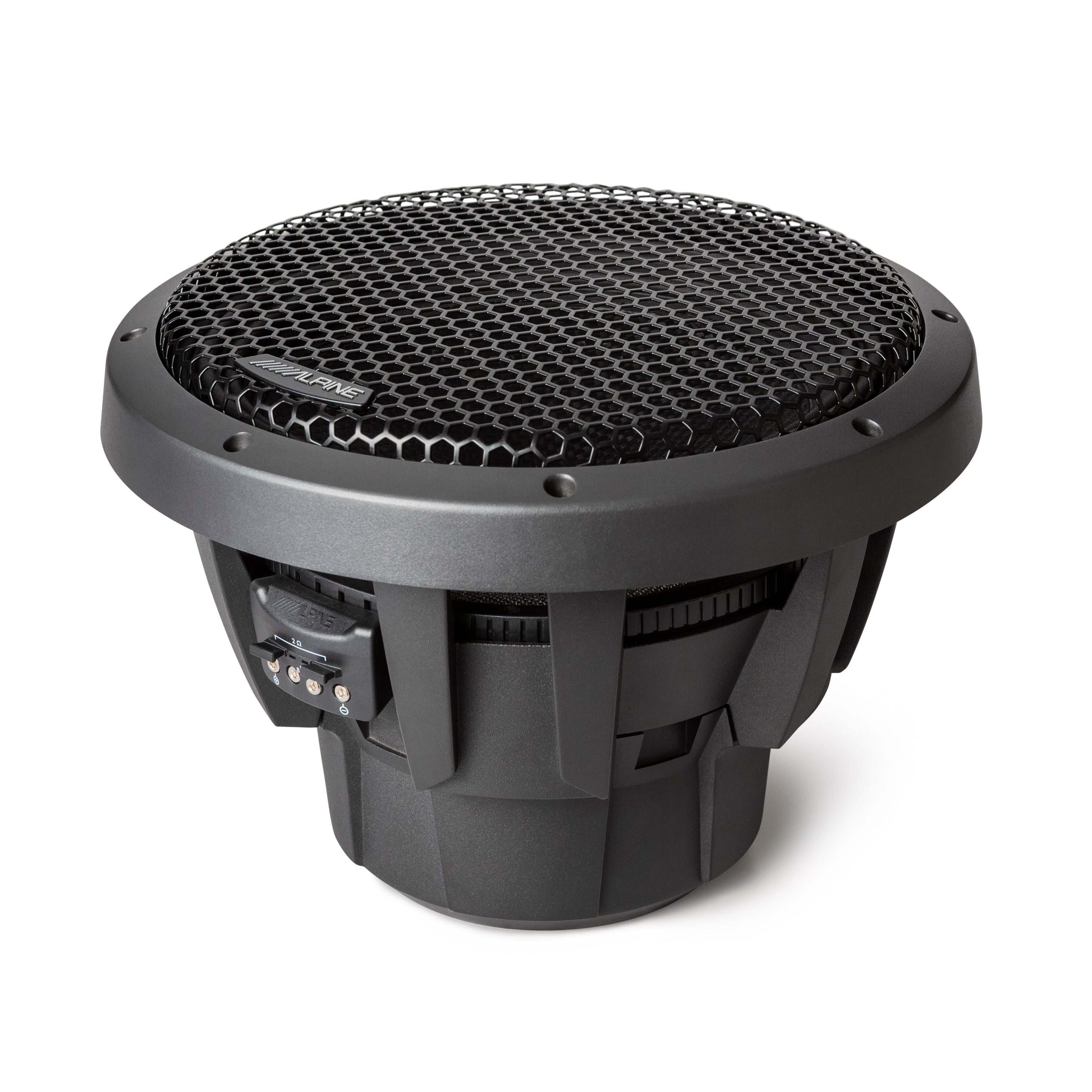

The addition of an open mesh style protective grille not only enhances its durability but also ensures your subwoofer remains safeguarded without compromising appearance.
With its unmatched performance and sophisticated design, the Alpine Status subwoofer elevates your car audio experience to new heights of excellence
- Pulp-Mica cone body
- Dual progressive spiders with integrated tinsel leads
- High-Amplitude Multi-Roll (HAMR) Surround

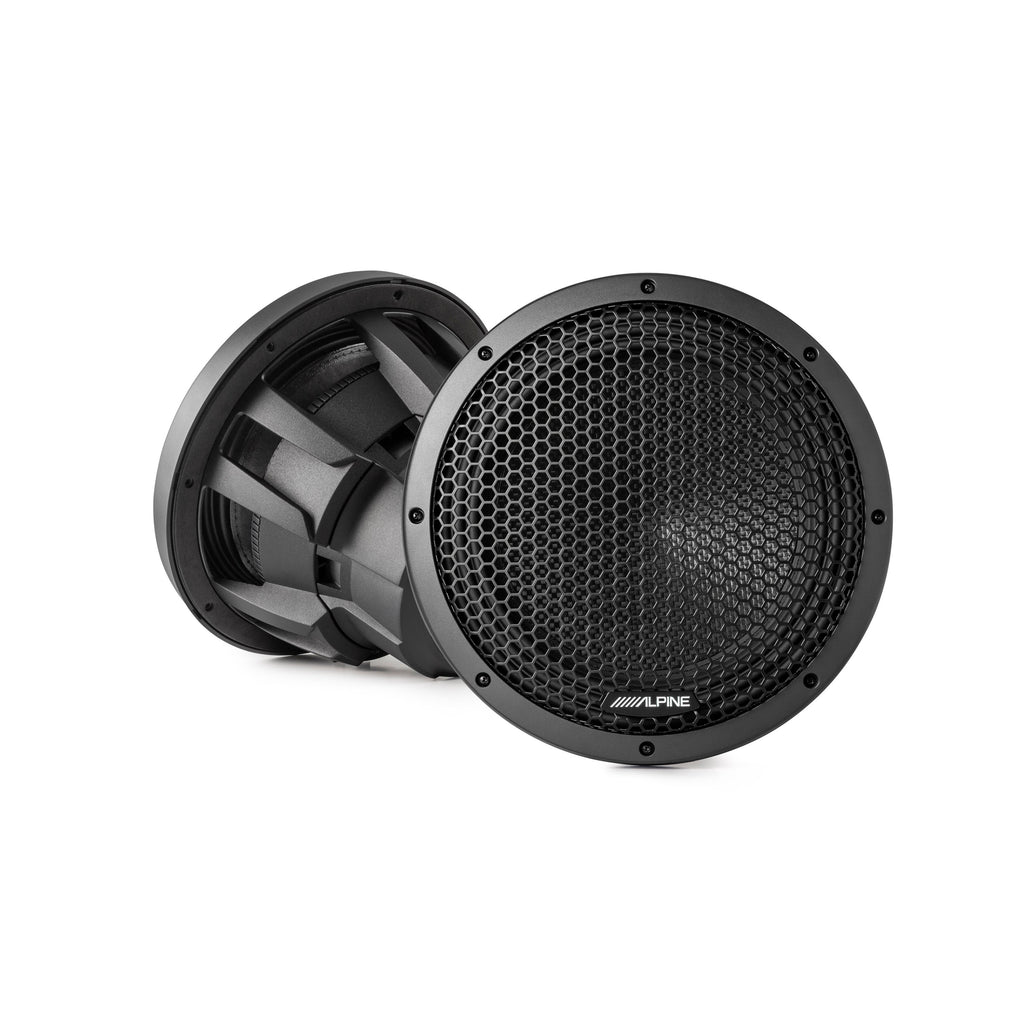

- Included mesh grille with aluminum trim ring
- Mounting depth: 9-2/8"
- X-Max: 20mm
- Voice coil: 65.5 mm
- Frequency response: 24Hz-200Hz
- Sensitivity: 83.7dB
- Nominal impedance: 4ohm + 4ohm
- Power handling: 800W RMS / 2400W Peak
- Carbon Fiber dust cap
- Cast aluminum frame
- Triple stacked high-power Strontium ferrite magnets (174oz x 3)
