Product Setup Information
Description

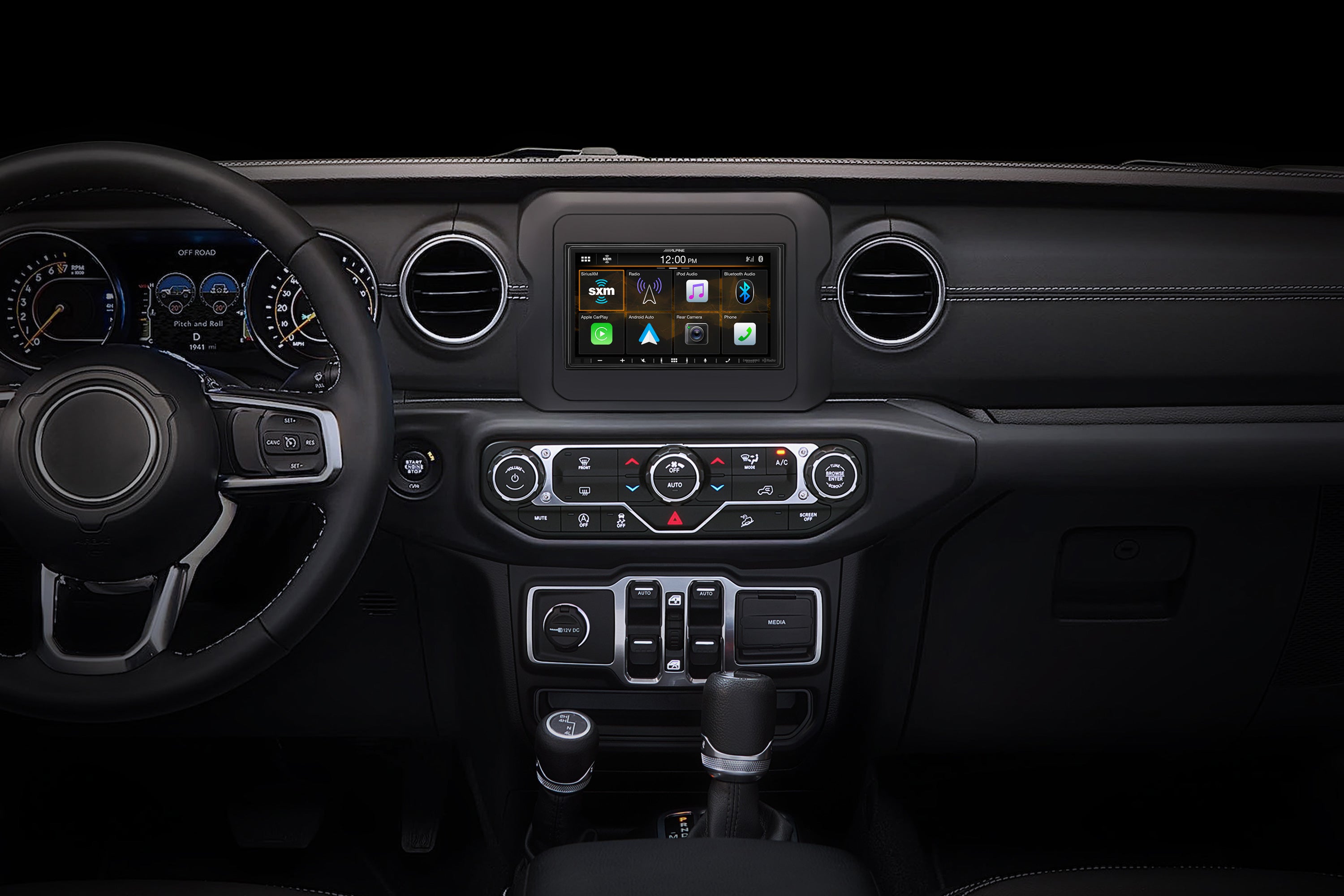

Enhance your adventures with this custom-designed dash solution that gives you HD Radio, HDMI, and Maestro Compatibility in your Jeep® Wrangler or Jeep® Gladiator.

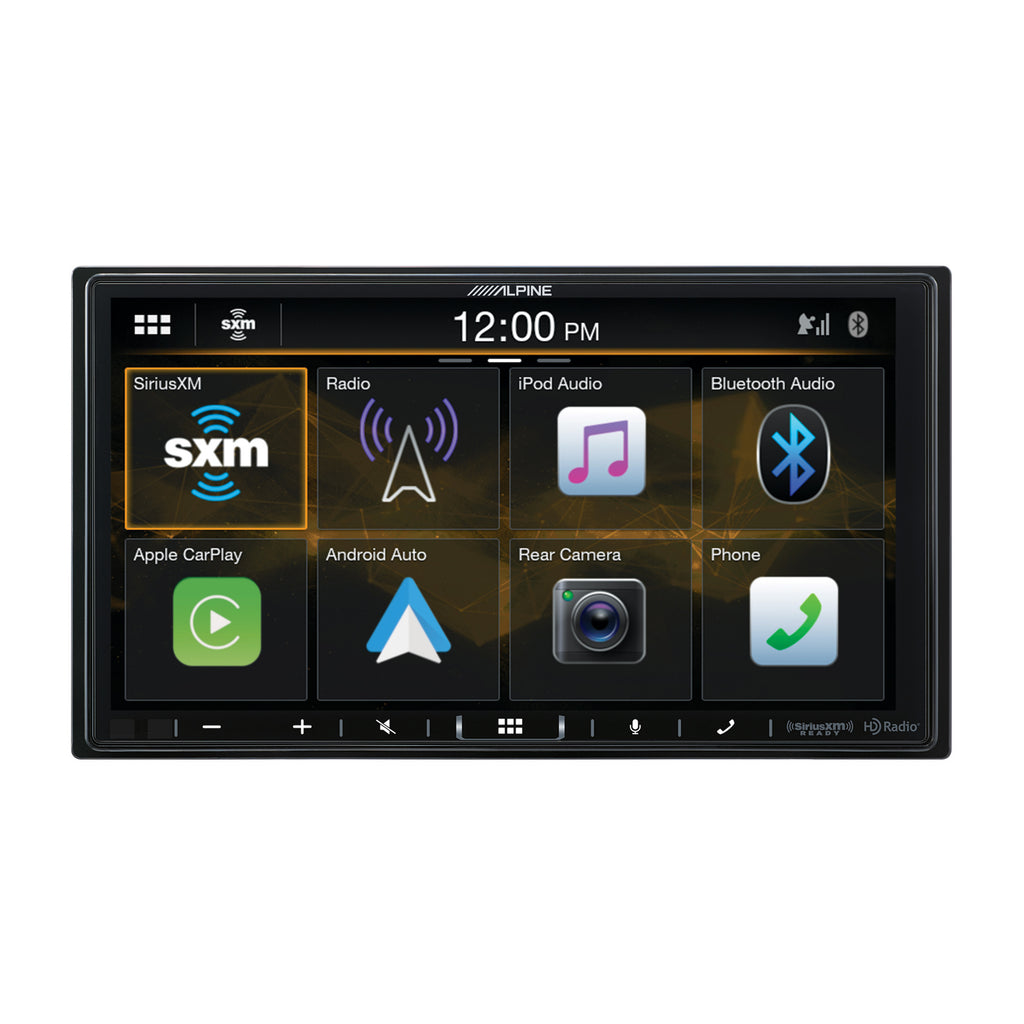

This custom-designed dash solution gives you the latest smartphone and entertainment features, all on an intuitive, 7-inch, capacitive touchscreen display.
An HDMI input is available to connect a CD or DVD player for an all-digital audio and video connection through a single cable.
A rear USB port allows you to listen to your music via smartphone or USB. Built-in HD Radio and SiriusXM (tuner and subscription required) give you all the entertainment options you need.
Jeep®-specific wiring adapters plug directly into your factory setup for Plug-and-Play installation.
Features include Apple CarPlay®, Android Auto™, and built-in Bluetooth® hands-free calling with audio streaming.
Use your smartphone for third-party navigation apps like Google Maps or Waze.
Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets.
Keep the factory controls you use the most, like voice-activated media player, Bluetooth® technology, steering wheel controls with the included iDataLink Maestro Module.
The iDatalink adapter can integrate with the Jeep® diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the touch screen.
The i407-WRA-JL retains the factory backup camera with rear-guideline display.
Retain the Alpine OEM Premium Amplified System with the KCX-F200INT Premium Audio System Interface (sold separately).
- 7-inch Anti-glare 2-DIN Touchscreen Display
- Premium Quality OEM-fit Dash System
- Plug-and-Play Installation
- Shallow Mount Design (2-6/16" Depth)
- Customizable User Interface (29 available widgets/apps)
- Customizable Background/Wallpaper
- Works with Apple CarPlay®
- The Google Assistant is available on Android Auto™
- Bluetooth® built-in for hands-free calling and audio streaming
- SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
- Built-in HD Radio®
- HDMI Input
- iDatalink® Maestro Connectivity (retains factory controls)
- 2 RCA Camera Inputs
- Rearview Camera Distance Guide Display
- MediaXpander®
- Retain the Alpine OEM Premium Amplified System with the KCX-F200INT Premium Audio System Interface (sold separately)
- 7” Touchscreen Receiver/Monitor
- Jeep® JL Dash Kit/Mounting Bracket
- Jeep® Compatible Wiring harness
- iDatalink® Maestro® Module
- Preout/Camera harness
- USB Extension Cable
- Microphone (w/ attached 12.5’ cable)
- Quick Reference Guide
- Installation Manual
- Online Registration Information
- Width: 7" (178mm)
- Height: 4" (100mm)
- Depth: 2-6/16" (60mm)
- Screen Size: 7"
- Screen Resolution: WVGA 800 x 480px
- HDMI Input: 1
- Camera Input: 2 RCA
- USB Input: 1
- 4V Pre-Outs: 3
- Built-in Amplifier: 16W RMS/50W peak x 4
- EQ: 5-Band Graphic
- DAC: 24 Bit
- Subwoofer level control
- High pass crossover/ low pass crossover
- 6-channel time correction
- Audio Playback: AAC, FLAC, MP3, WMA, WAV
- Photo Playback: JPG, PNG, BMP
- Video Playback: AVI, MP4, MPG, MOV, WMV
- CTA-2006 compliant
