Alpine KCX-C250MC Multi-Camera Selector Interface

The Alpine KCX-C250MC Multi-Camera Selector Interface allows as many as three Alpine camera systems (Front Rear & Side) to be connected to and controlled from select Alpine in-dash navigation receivers.

• Compatibility: The KCX-C250MC Multi-Camera Selector Interface is compatible with select Alpine navigation receivers and cameras.
• Head Units: The Multi-Camera Selector Interface is compatible with 2016-up Alpine 10 Restyle navigation receivers (X110-SLV for 2014-up Chevrolet Silverado / X110-SRA for 2014-up GMC Sierra) 9 Restyle navigation receivers (X109-WRA for 2011-up Jeep Wrangler / X109D for various trucks and SUVs) 8 navigation receivers (X108U for various trucks and SUVs) and 7 navigation receiver (INE-W967HD for universal applications) .
• Cameras: The KCX-C250MC is only compatible with select Alpine cameras which feature a proprietary multi-pin camera connector (not composite video). You can connect up to 3 proprietary Alpine cameras (Rear Front & Side).
• Note: The KCX-C250MC Multi-Camera Selector Interface is only compatible with select Alpine navigation receivers and proprietary Alpine camera systems.
• Touchscreen Control: The KCX-C250MC Multi-Camera Selector allows you to control your Alpine multiple camera system from your compatible Alpine navigation receivers touchscreen. The names of the connected camera systems (Front Side & Rear) appear on the touchscreen so you can simply select the camera system you want to use. You can then choose the viewing option from that camera to be displayed on the receivers LCD touchscreen.
• Note: When your vehicles reverse gear is selected the image from the rearview camera is displayed first. You can then select to view front or side cameras.

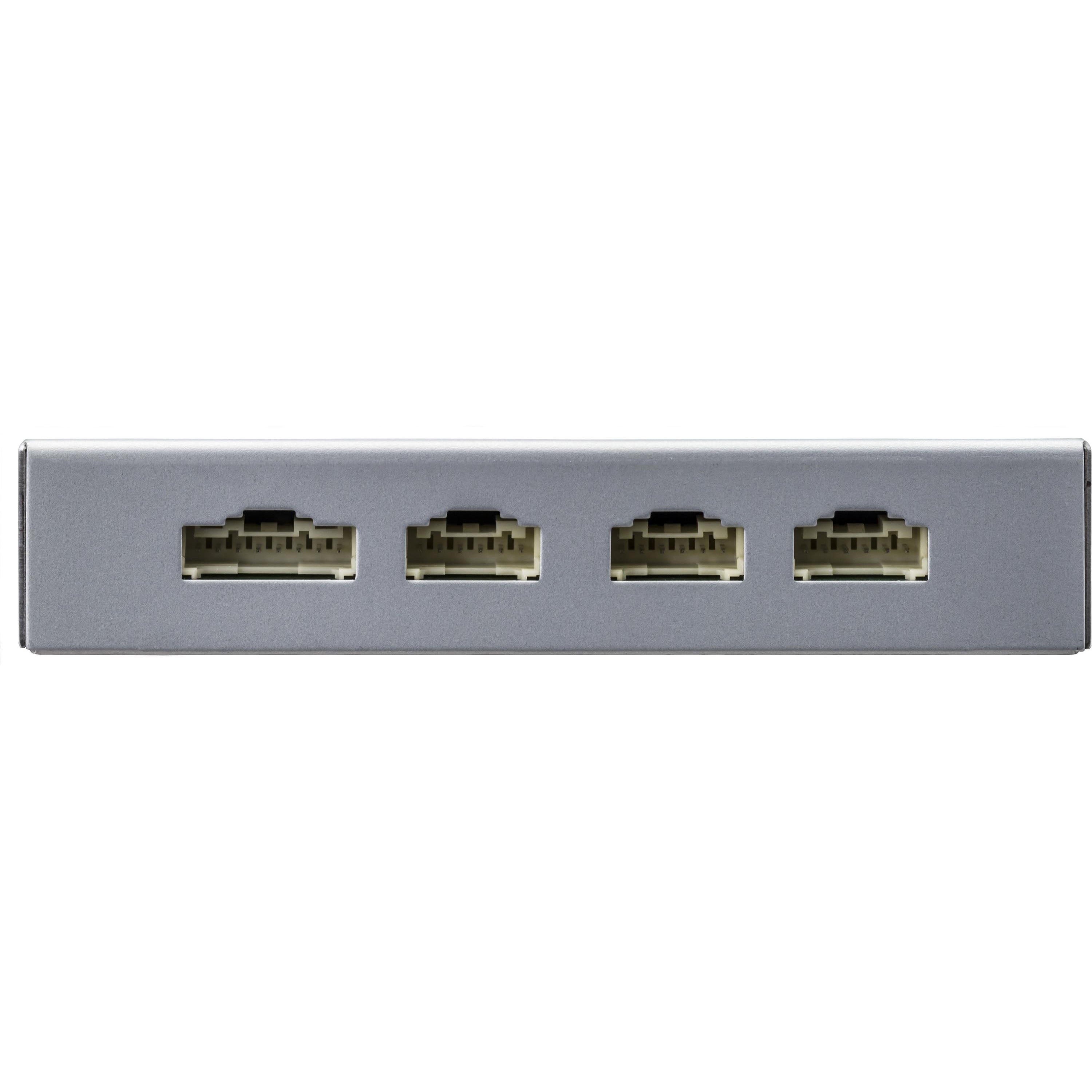

• Proprietary Connectors: The KCX-C250MC is fitted with 3 proprietary camera inputs (labeled Rear Camera Front Camera and Side Camera) which will be used to plug in your compatible Alpine camera systems proprietary harness. The KCX-C250MC is also fitted with a proprietary video output connectors (labeled Power/V.Out) which is used to connect the multi-camera selector interface to your compatible Alpine navigation receivers proprietary camera input using the included wiring harness.
• Power & Ground: The Alpine KCX-C250MC Multi-Camera Selector Interface will require a separate +12V switched and ground hardwired connection inside the vehicle.
