Description

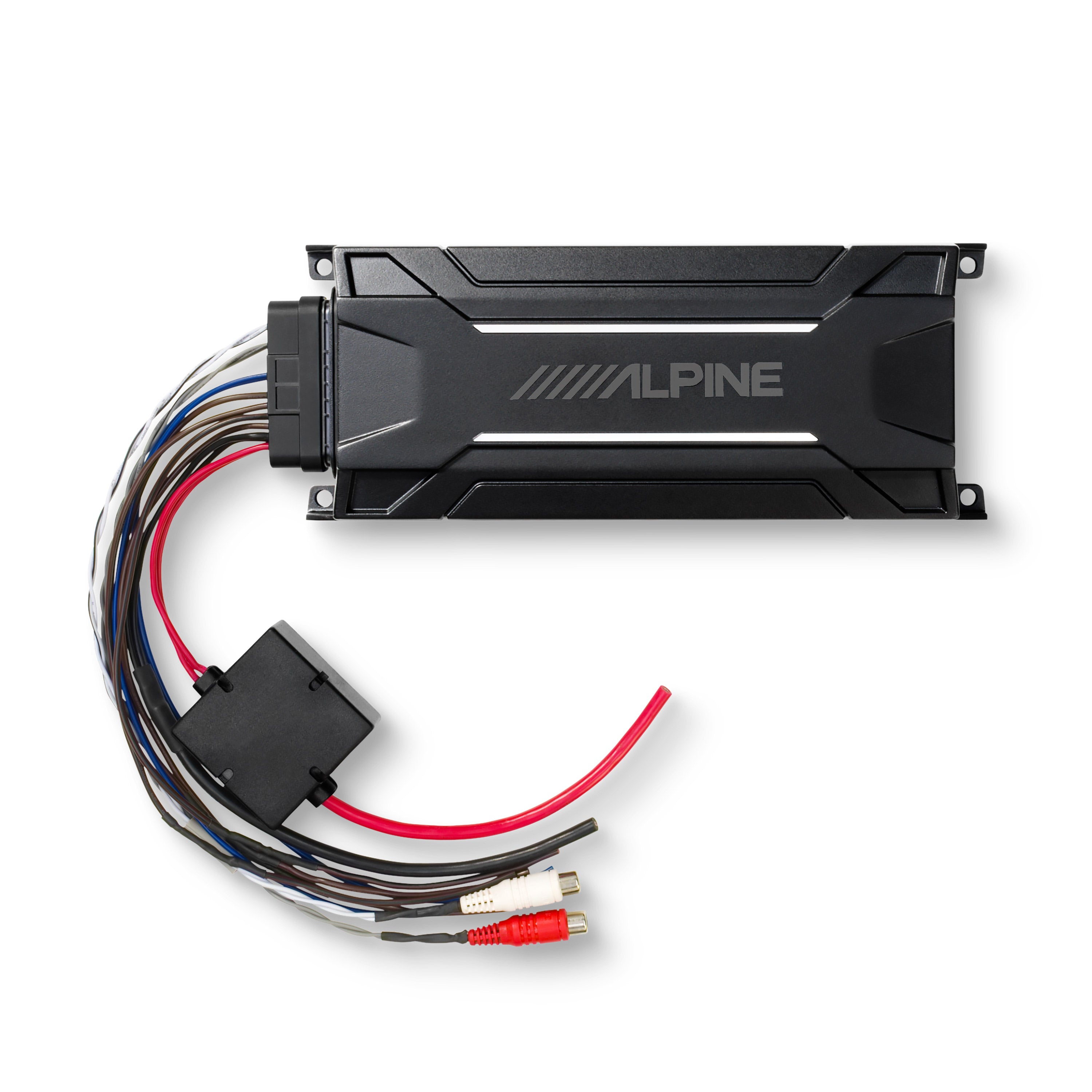

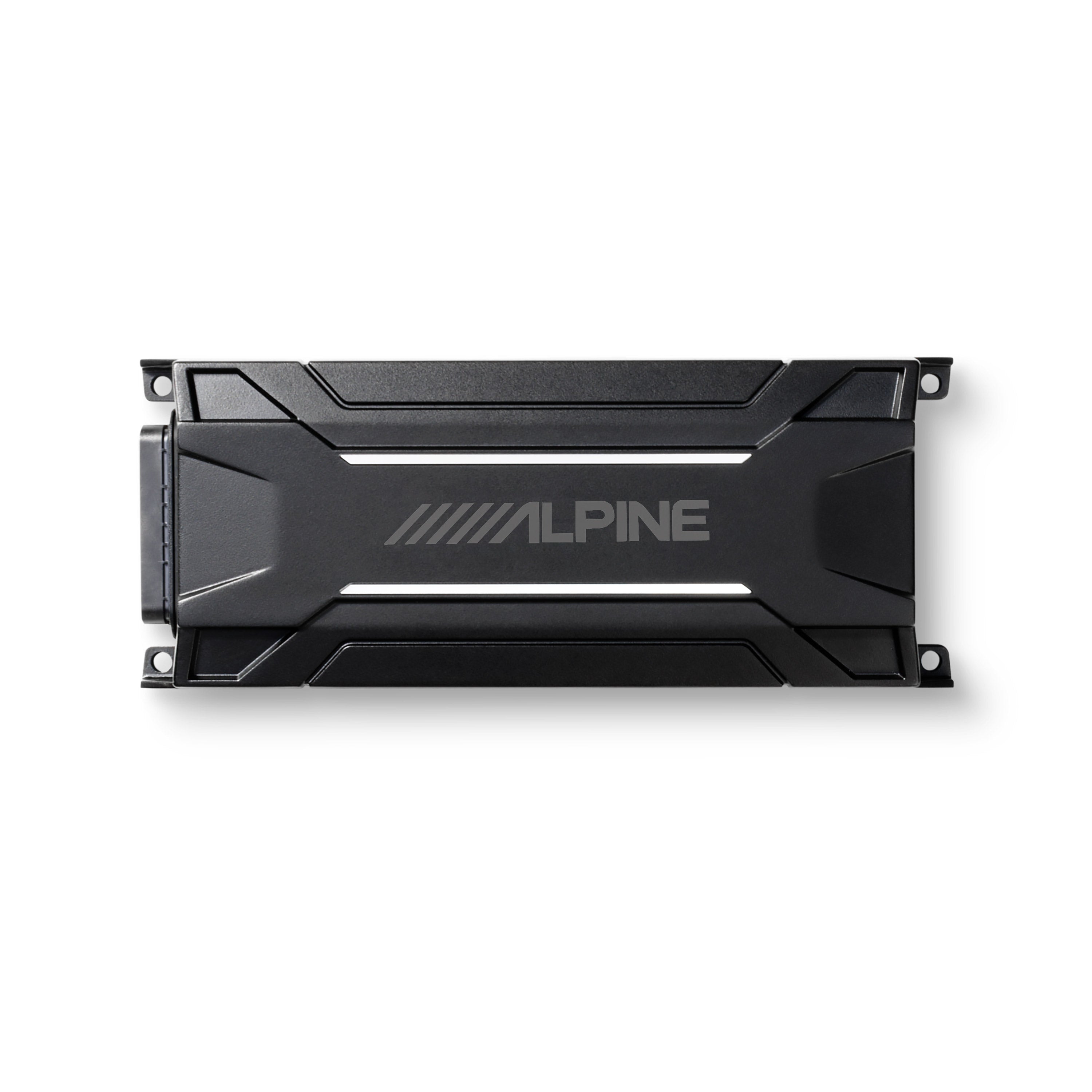

The KTA-30MW Mono Power Pack Amplifier produces 400-watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.
With the highest performance value on the market, this mono-power amplifier provides an easy update path to add more bass to a sound system in vehicles that don't normally have the room for a traditional amplifier.
Utilizing Alpine's exclusive Dynamic Peak Power (DPP) technology, the 300-watt KTA-30FW delivers bursts of power to meet the peak demands of music, effectively rising to 600-watts and then rolling back to maintain efficiency.
With the compact, Power Pack design, the amplifier can fit in hidden areas, like a glove box, under a seat, or mounted behind a receiver to optimize power and space in the vehicle.
The KTA-30FW is weather-resistant and rated IP66, so it’s protected from limited dust ingress and low-pressure water spray from any direction.
The rugged chassis and high-quality waterproof so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open-top vehicles, and motorcycles.
- Alpine’s Exclusive Dynamic Peak Power (DPP) Technology
- Weather-resistant (IP66 rating against dust and water)
- Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
- CTA-2006
- 20-400Hz Frequency response (+/- 1dB)
- 300W RMS x 1 @ 2Ω, 14.4V, ≤ 1%THD+N
- 600W DPP x 1 @ 2Ω, 14.4V, ≤ 1% THD+N
- S/N >82dB (ref. 1W into 4Ω)
- THD+N ≤0.1% (ref. 1W into 4Ω)
- Speaker/RCA inputs (selectable,High range=0.5-10V, Low range=0.2-4V)
- Sound control:LP filter – Off/LP, Fc=50-400Hz @ -12dB/Oct. (variable);Subsonic filter: Fc=5-40Hz (variable); Input gain settings(variable); Bass EQ: 0 to +12dB, Fc=50Hz (variable
- OEM-grade Tyco 26-pin connector with pigtail wire harness
- Input gain settings (variable)
- 2ch/4ch input (selectable)
- Cast Aluminum chassis
