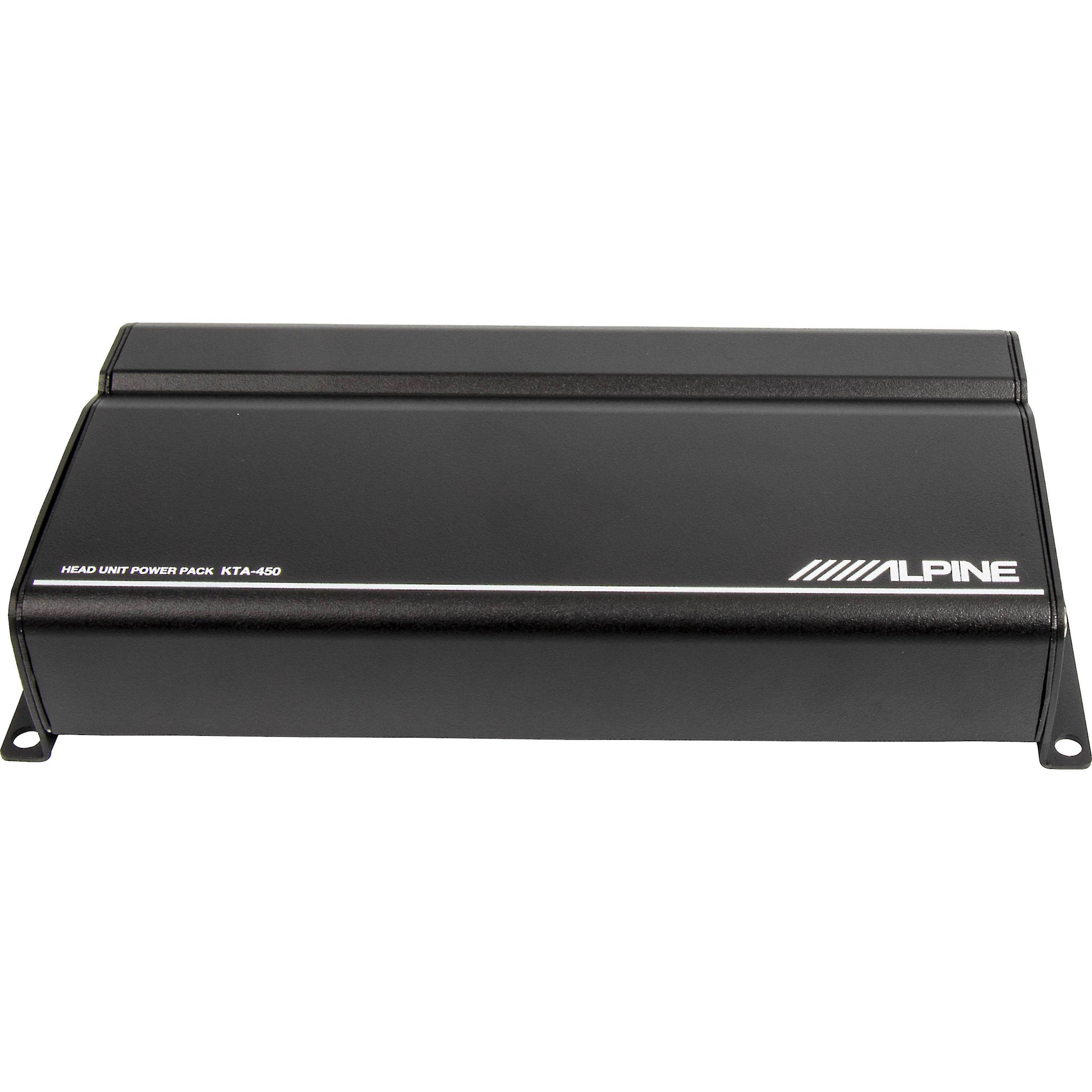

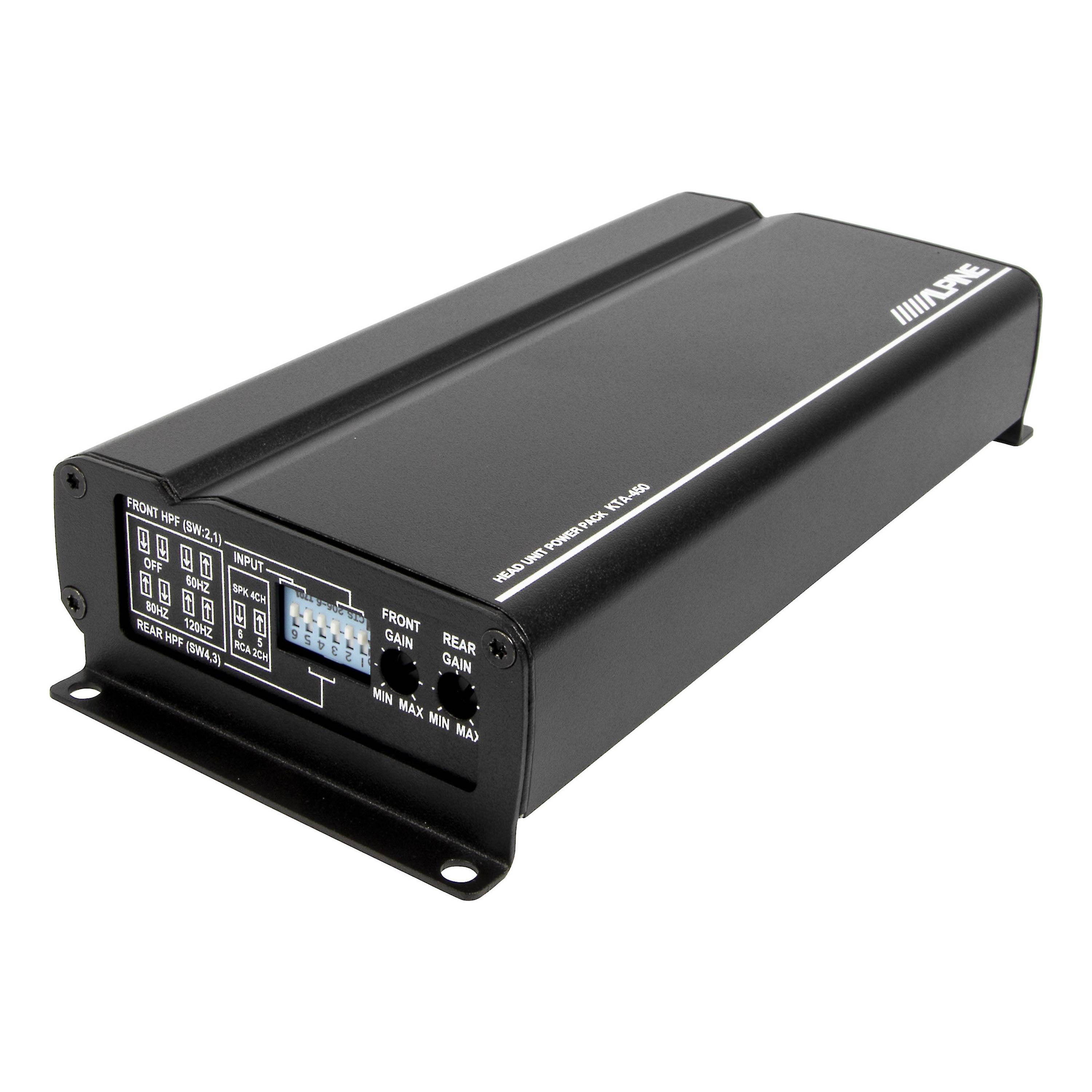

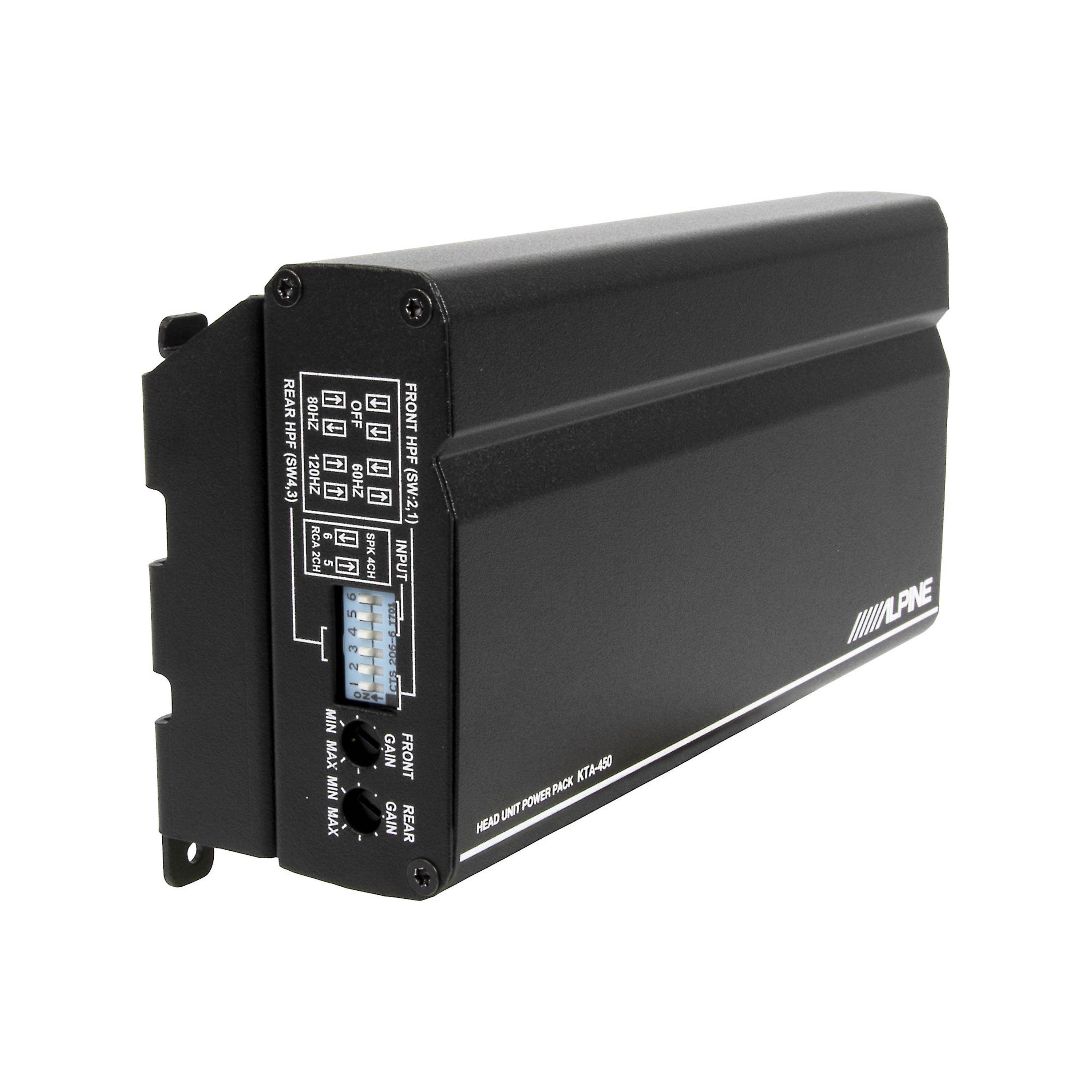

Alpine KTA-450 4-Channel Power Pack Amplifier with PowerStack™ Capability

The KTA-450 4-Channel Power Pack Amplifier produces 400-watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.

With the highest performance value on the market, this mono-power amplifier provides an easy update path to add more bass to a sound system in vehicles that don't normally have the room for a traditional amplifier.

Utilizing Alpine's exclusive Dynamic Peak Power (DPP) technology, the 200-watt KTA-450M delivers bursts of power to meet the peak demands of music, effectively rising to 400-watts and then rolling back to maintain efficiency.

With the compact, Power Pack design, the amplifier can fit in hidden areas, like a glove box, under a seat, or mounted behind a receiver to optimize power and space in the vehicle.

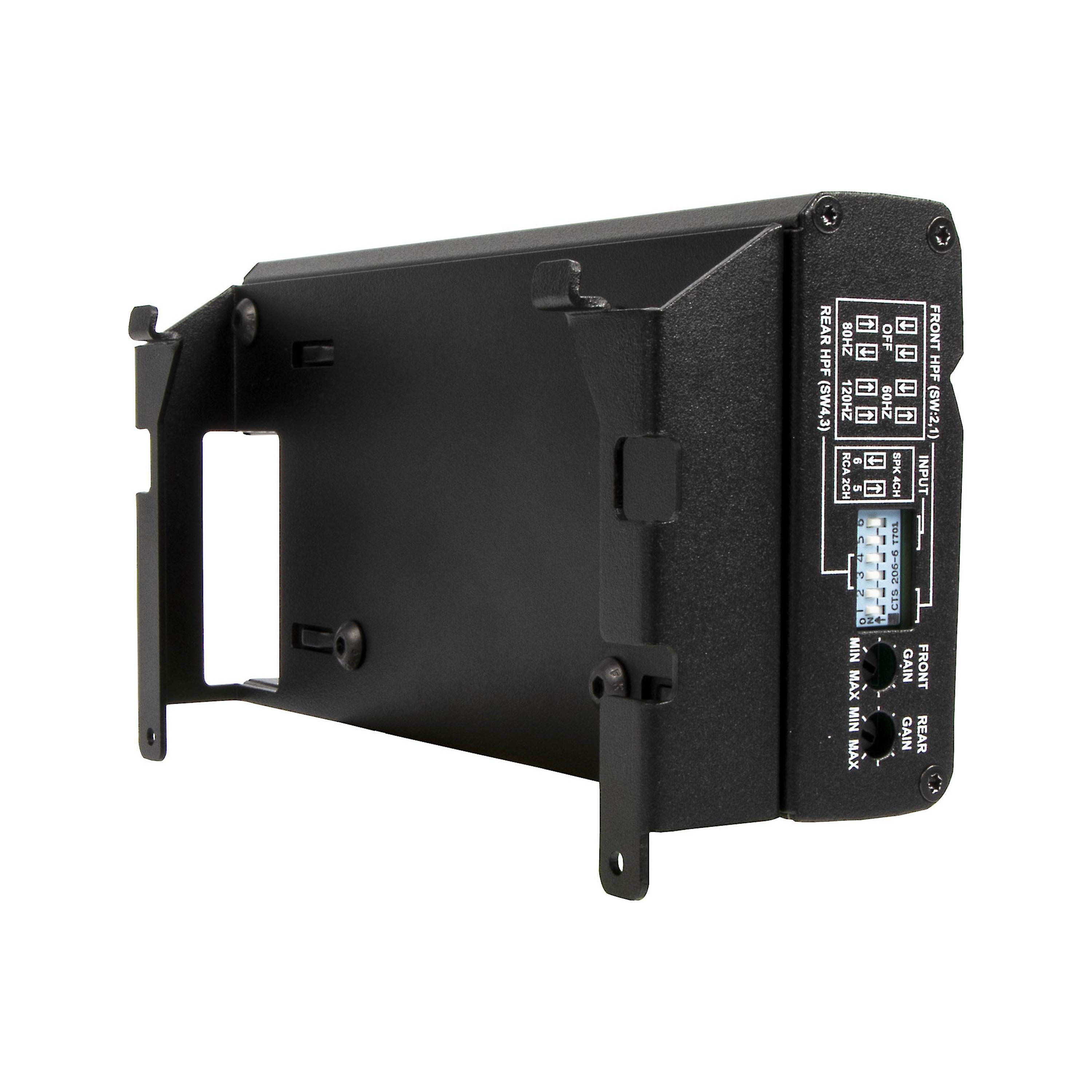

The KTA-450M mounts behind the iLX-W760 7" Mech-Less Audio/Video Receiver with PowerStack™ technology.

When mounted to the iLX-W650, the KTA-450 is a CES 2019 Innovations Awards Winner.

• Alpine’s Exclusive Dynamic Peak Power (DPP) Technology
• 100W x 4 D.P.P. (2/4Ω, 14.4V, < 1% THD+N)
• 50W RMS x 4 (2/4Ω, 14.4V, < 1% THD+N)
• 100W RMS x2 (Bridge mode into 4Ω minimum), 200W RMS x 2 D.P.P.
• S/N >82dB (ref. 1W into 4Ω)
• THD+N ≤0.1% (ref. 10W into 2Ω)

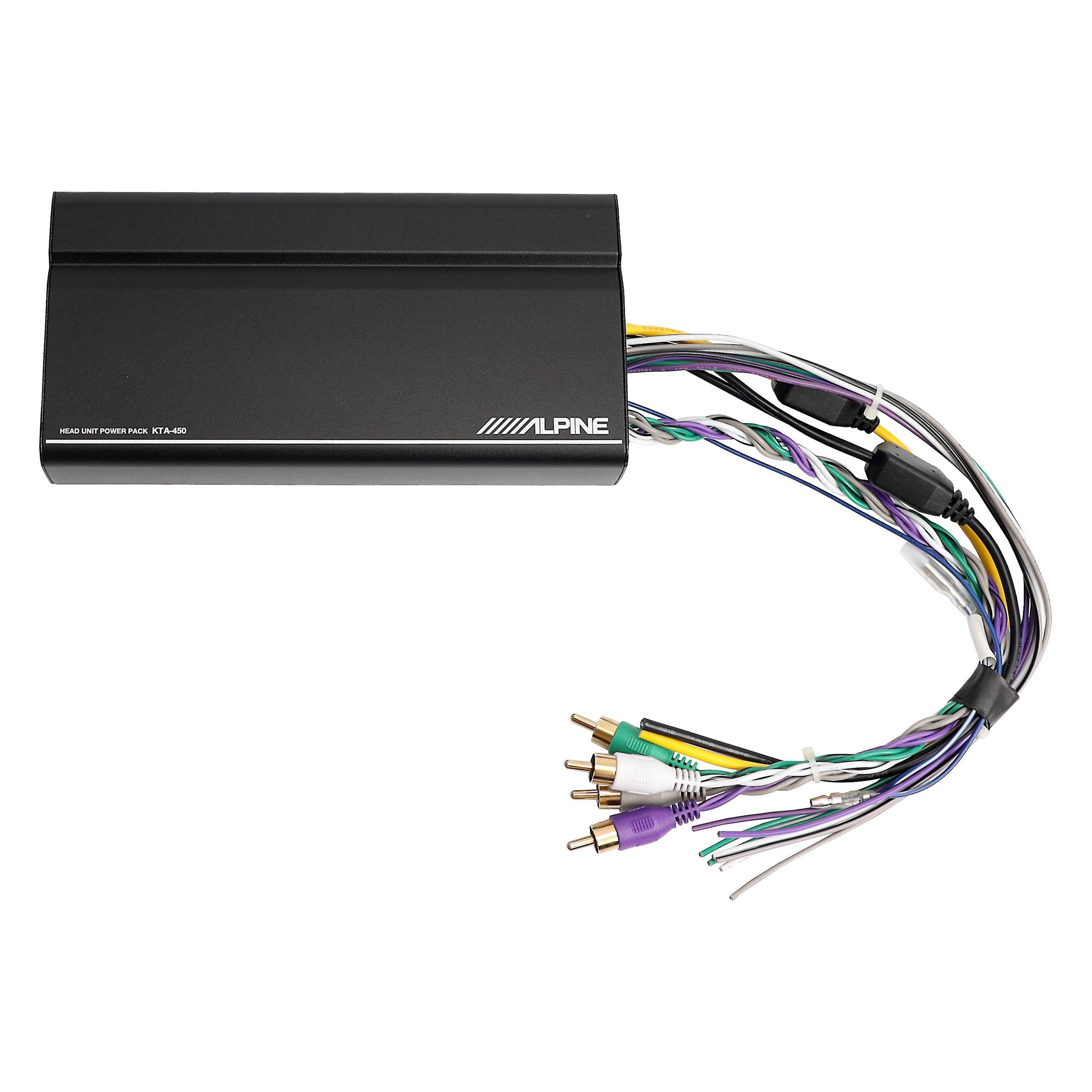

• Single-side 22-pin connector
• Speaker/ RCA inputs (selectable,High-range=0.5-10V, Low range=0.2-4V
• Sound control; Crossovers- Off/60Hz/80Hz/120Hz HP Filter @ -12dB/Oct.(selectable); Input gain settings (variable); 2ch/4ch input(selectable)
• Remote Bass-Knob ready with the RUX-KNOB.2 (sold separately)
• PowerStack™ capable with the Alpine iLX-W650 (sold separately)
• Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
• CTA-2006
• 20-20kHz Frequency Response (+/- 1dB)
• iLX-W650 Used with the KTA-450 is a CES 2019 Innovations Awards Winner
