Description
The PXE-X09 is every sound tuner's dream with flexible application and onboard tuning tools that will bring out the full potential of your music.
The PXE-X09 Hi-Resolution Digital Sound Processor allows you to integrate aftermarket amplifiers and speakers into your vehicle without replacing the factory head unit.
The PXE-X09 comes with 16 channels of input and output for various sound system setups.
An on-board Real Time Analyzer and a 10-band parametric input equalizer allow you to flatten the factory EQ curve or use it as a global EQ.
The internal signal generator quickly sends the appropriate tuning sounds to test and tune your system with the option of using pink or white noise or sinusoid.
The Configuration Wizard guides you in identifying the components in the factory system as well as the target aftermarket system then appropriately mixes the channels to get a full range signal.
Adjust the active crossover within 1Hz steps to optimize the transition points between speakers in the system.
Tune your sound system to perfection with the 31-band parametric or graphic output equalizer.
With up to 20ms of time correction in .01ms steps per channel, every drive feels like a front-row seat at a concert.
Tune your system from your smartphone, tablet, or PC (requires a wired USB connection, USB cable included).

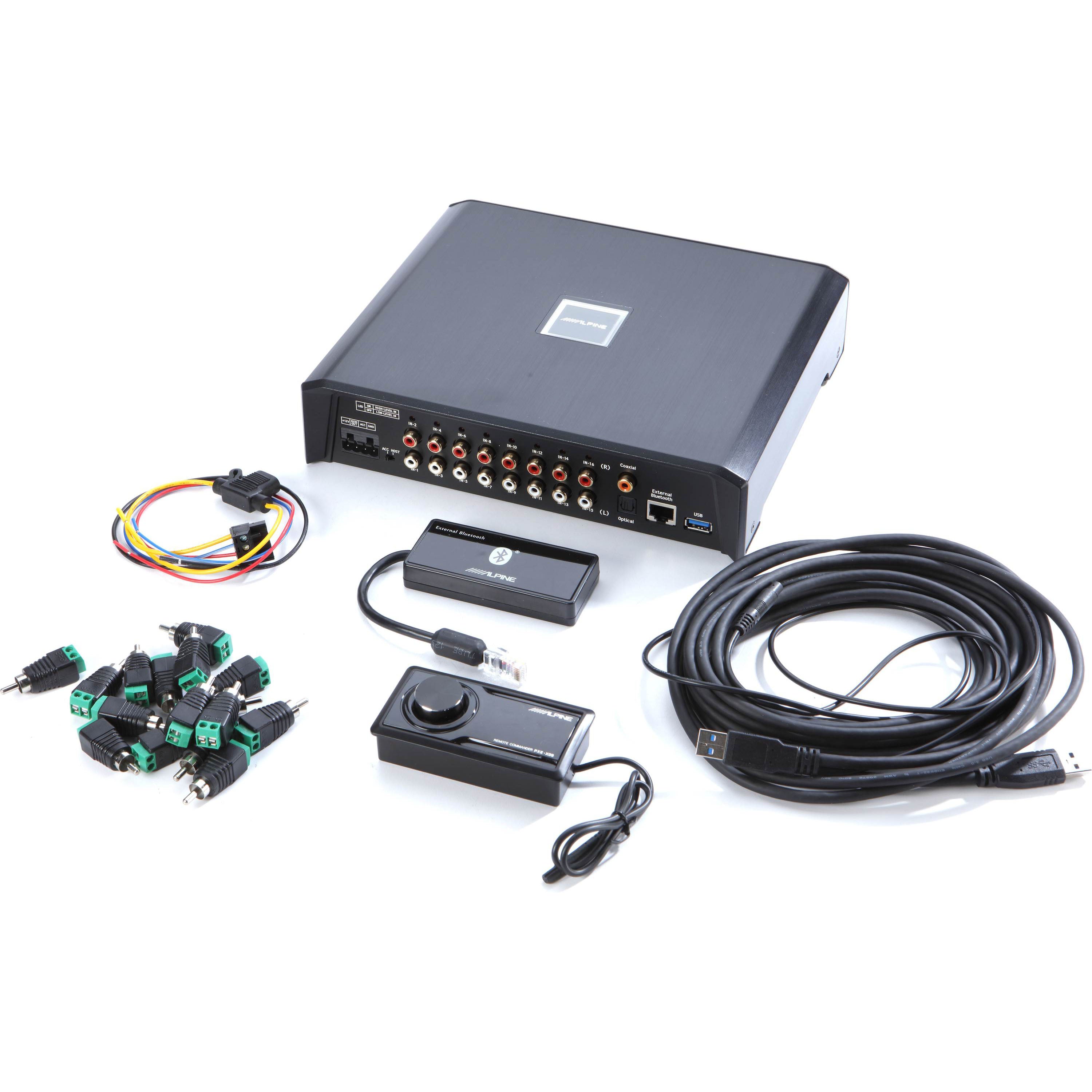

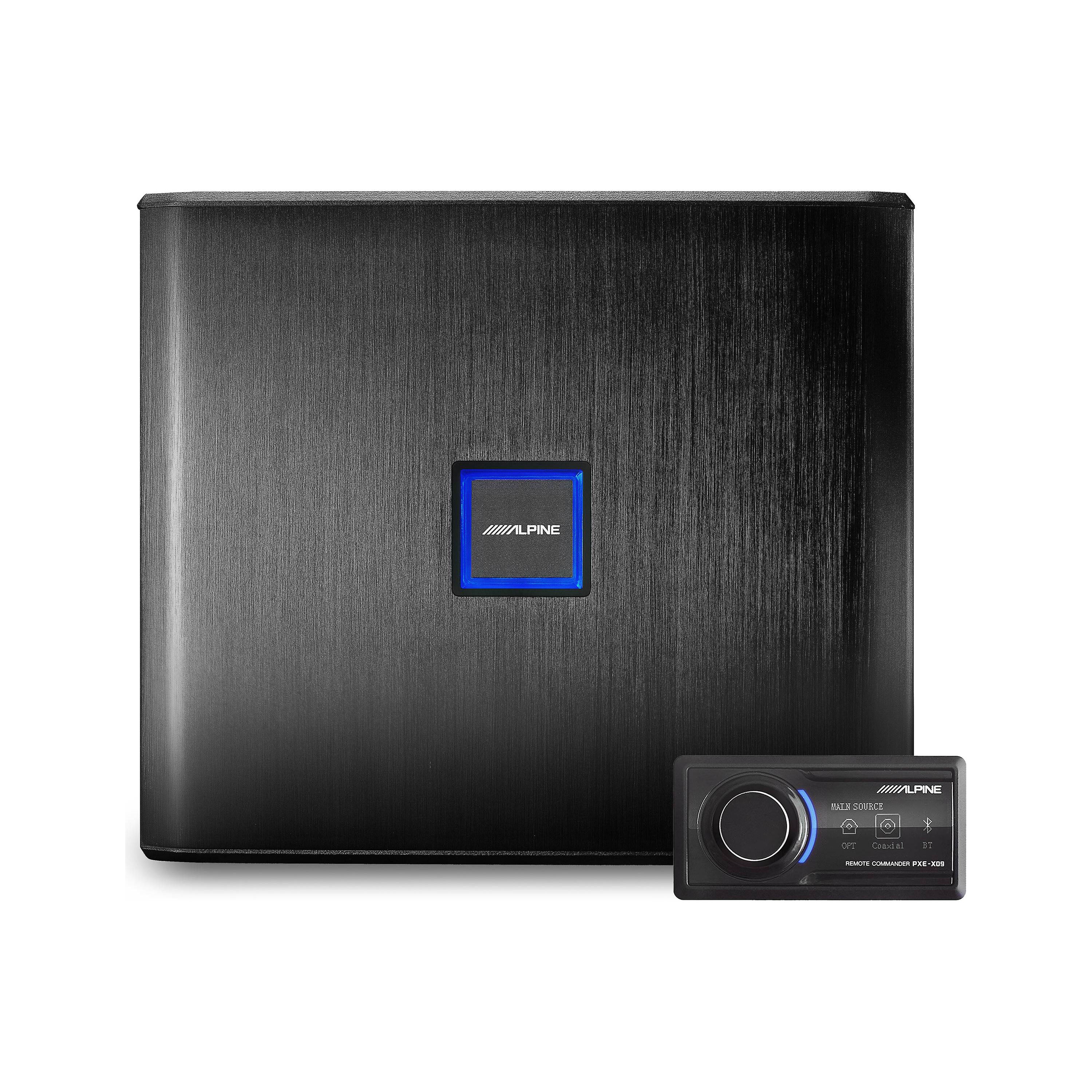

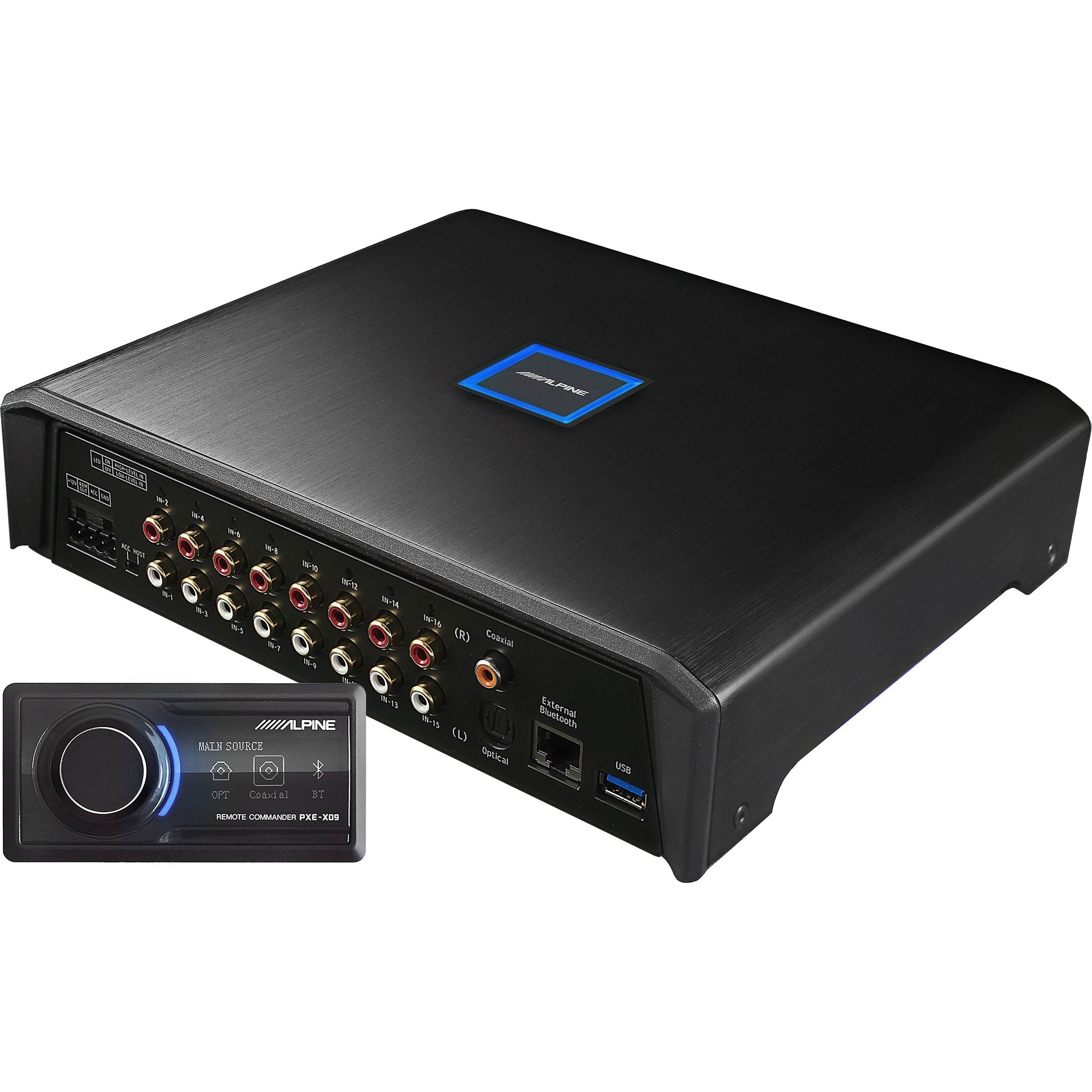

The included LCD remote controller can be flush-mounted on the dash for easy access to adjust the volume, preset storage and recall, bass, and source selection and view review results on the LED screen.
Save your tuning files directly to your smartphone or hard drive and share via text message or email or store on a thumb drive.
The PXE-X09 can receive music sent directly from a smartphone with Bluetooth streaming so you can enjoy personal playlists without adding or replacing the factory head unit.
- Hi-Res Audio Compliant
- Configuration Wizard
- Built-in Real-Time Analyzer
- Built-in Signal Generator (Pink Noise, White Noise, Sinusoid)
- Bluetooth® audio streaming with included external module
- Wireless sound tuning via smartphone. PC tuning also available
- Dash-mounted remote controller included
- Hi-Resolution Audio Compliant (40k Hz)
- 16-channel High/Low voltage inputs for both OEM and aftermarket installations
- Matrix Mixing
- 294.9MHz Processor
- 216kHZ/24bit ADC/DAC
- 10 Band Parametric or Graphic Input EQ
- 31 Band Parametric or Graphic Output EQ
- 6 EQ Presets
- >100dB Signal to Noise Ratio
- >110dB Channel Separation
- High pass / low pass crossovers per channel
- Time correction; Up to 20ms delay per channel

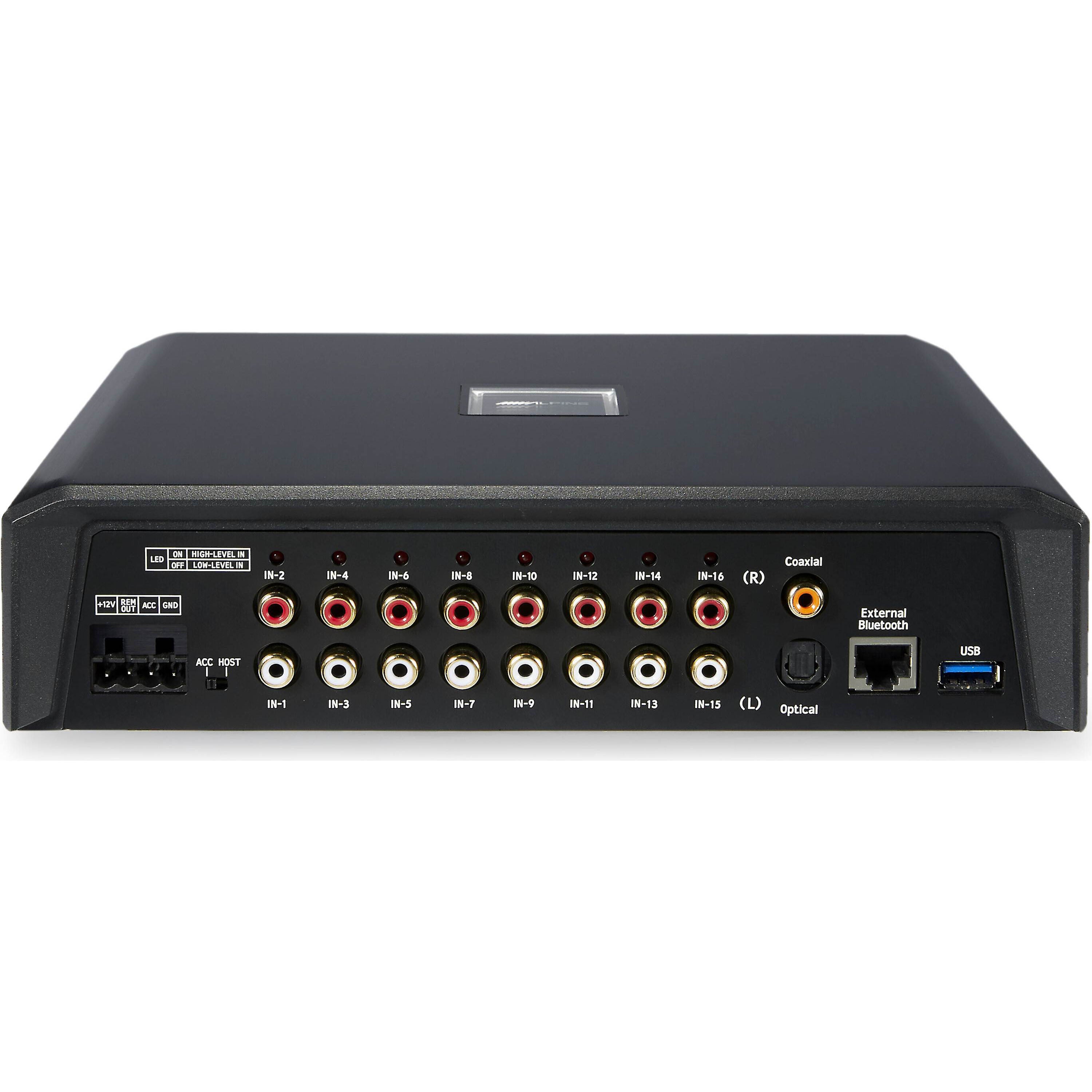

- 16-channel RCA/ High-level input
- 1 Coaxial input
- 1 optical input
