Description
Now you can add deep, accurate bass in your truck without compromising valuable cabin space.
Two 8” subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink™ bracket that can adjust from 51”-40”.
Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine’s S-A60M Mono Power Amplifier (sold separately).
Rubber “feet” are adjustable in height to accommodate uneven truck floors.
The subwoofers are designed with an improved voice coil that brings out the full potential of the subwoofer.
The custom-stamped steel frame is designed to withstand the rigors of the strong S-Series motor.
Frame leg vents, as well as a vented backplate, keep the subwoofer cool for non-stop bass performance.
The enclosure pulls design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge.
The 5/8” MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.
With two preloaded S-W8D2 8” S-Series subwoofers that are tuned to 36Hz, S-DB8V-TRK is optimized to perform with Alpine’s S-Series sound system line.
Dual voice coils are wired in Parallel for a 2Ω Load that’s compatible with Alpine’s S-Series S-A60M Mono Power Amplifier.
- Groundbreaking Alpine Halo Design
- 750W RMS Power Handling
- Includes two preloaded R2-W8D2 8” R-Series subwoofers
- CARB compliant 5/8" MDF construction
- Premium black carpet

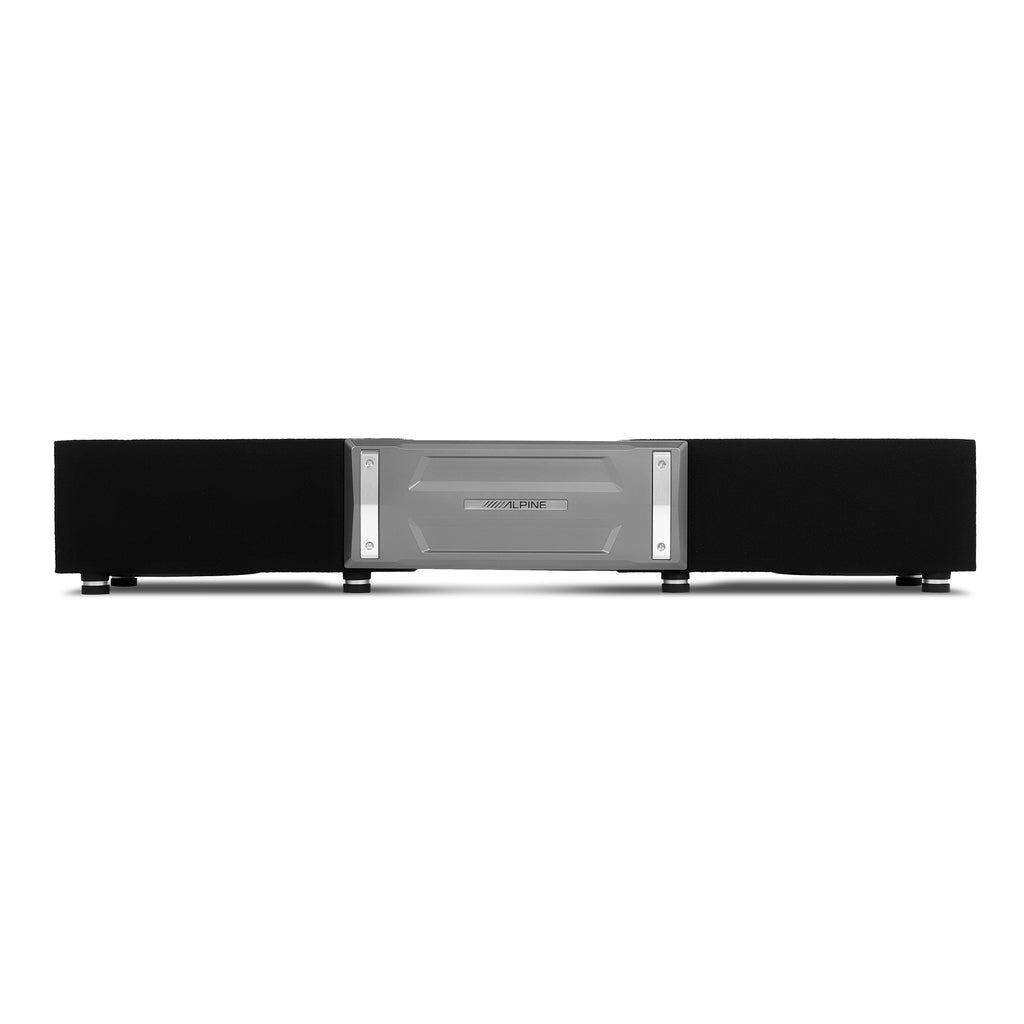

- Front link bracket cover with an Alpine logo badge

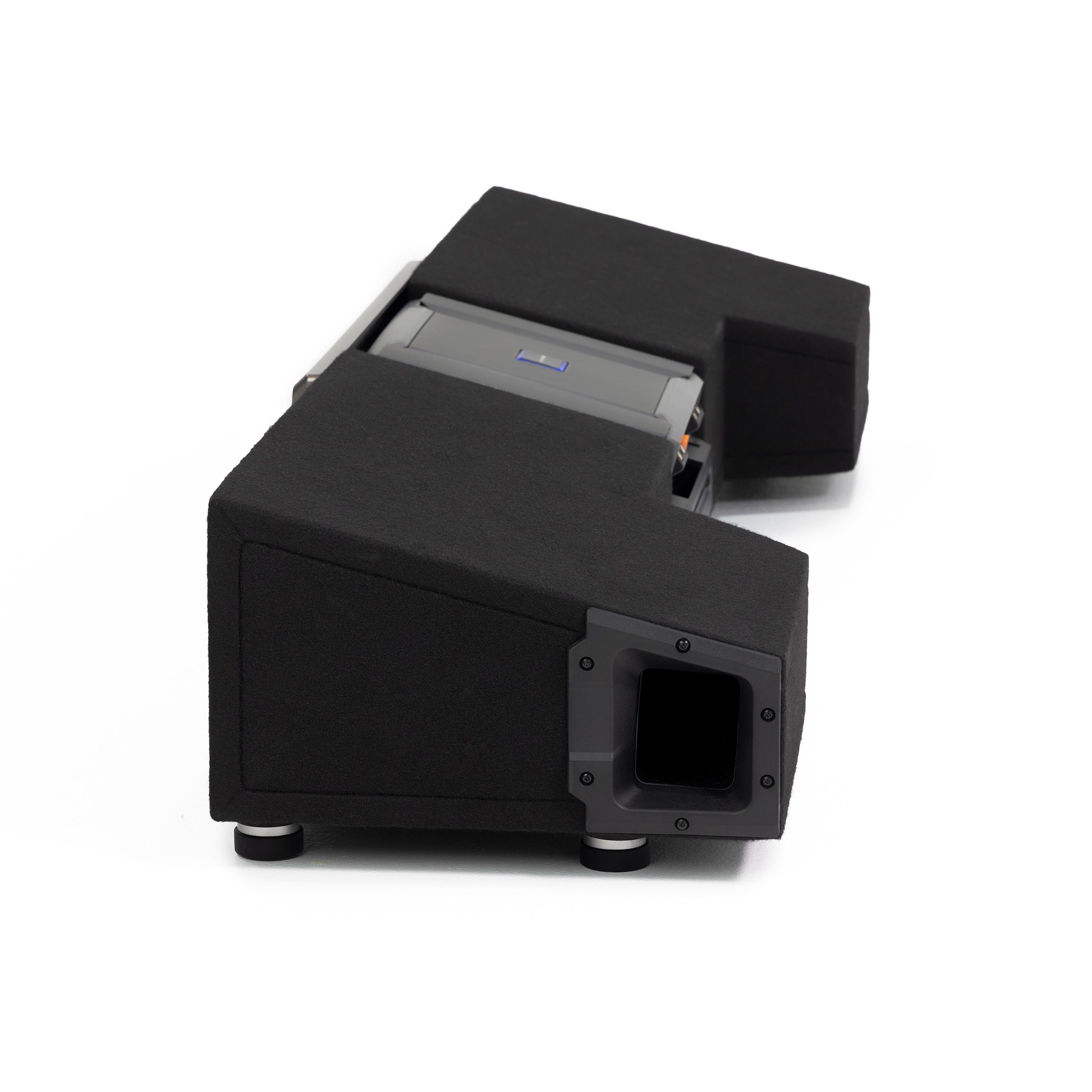

- Side-firing cabin loading ports
- Premium Alpine wire terminals
- Grille Mount System
- Dimensions: 51” W (max)/40” W (min) x 8-3/4” (H) x 13-3/4” (D)
- Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
- ProLink™ ported enclosure design
- Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
- 2Ω Impedance
- Frequency Response: 32Hz-200Hz
- Vented Enclosure Tuning Frequency: 36Hz
- Rugged center link plate links two preloaded enclosures together

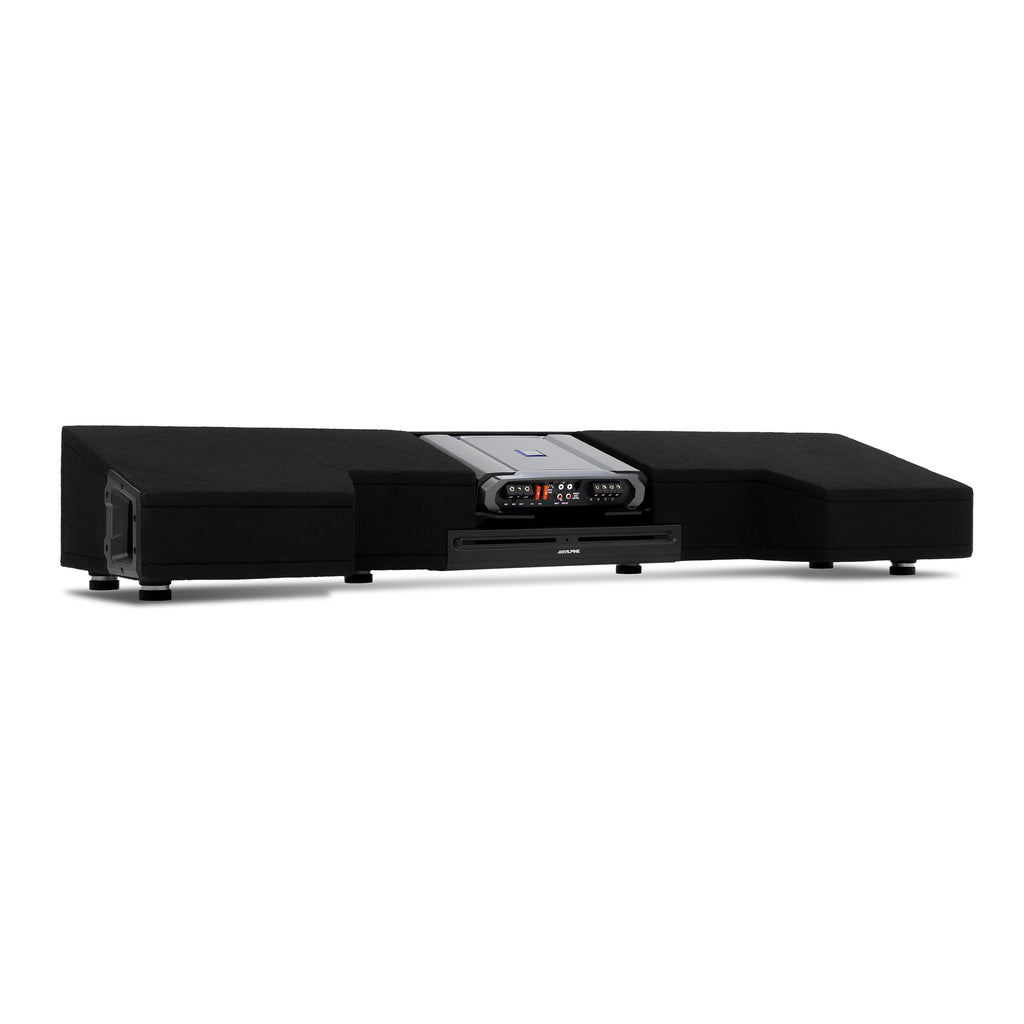

- Integrated amplifier tray for recommended Alpine R-A75M mono amplifier (sold separately)
- Adjustable linking design adjusts width from 51” – 40” to fit most full-size trucks

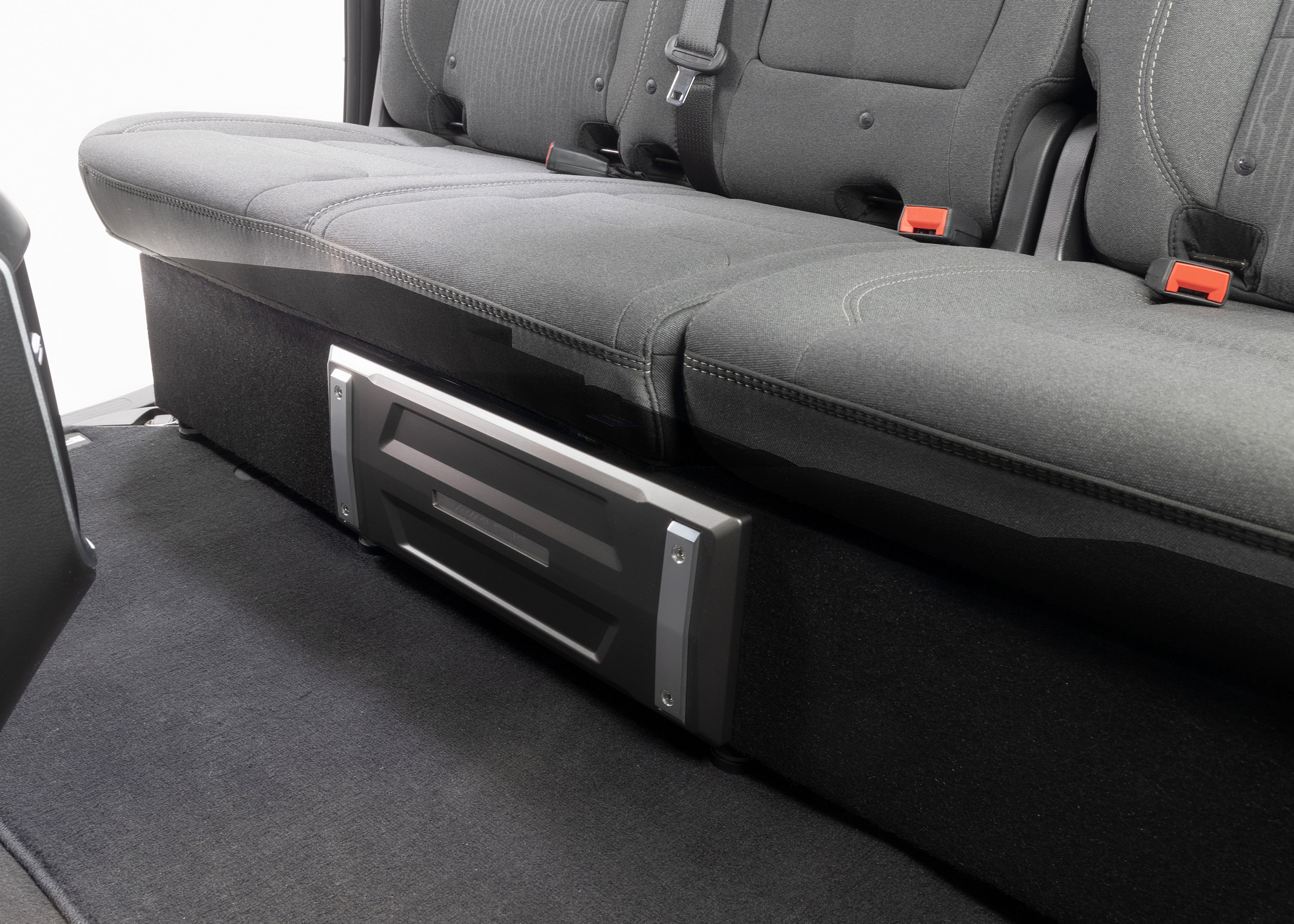

- Compact design allows for under the seat installation in most full-size trucks
- Rubber, modular stackable foot design accommodates uneven truck floor under-seat areas
- Optimized for 2018-Up RAM 1500 (crew cab), 2015-Up Ford F-150 (crew cab), 2018-Up GMC Sierra/Chevrolet Silverado (crew cab), Jeep® Wrangler (JK/JL), Jeep® Gladiator
- Ported enclosures with high-performance subwoofers
