Description

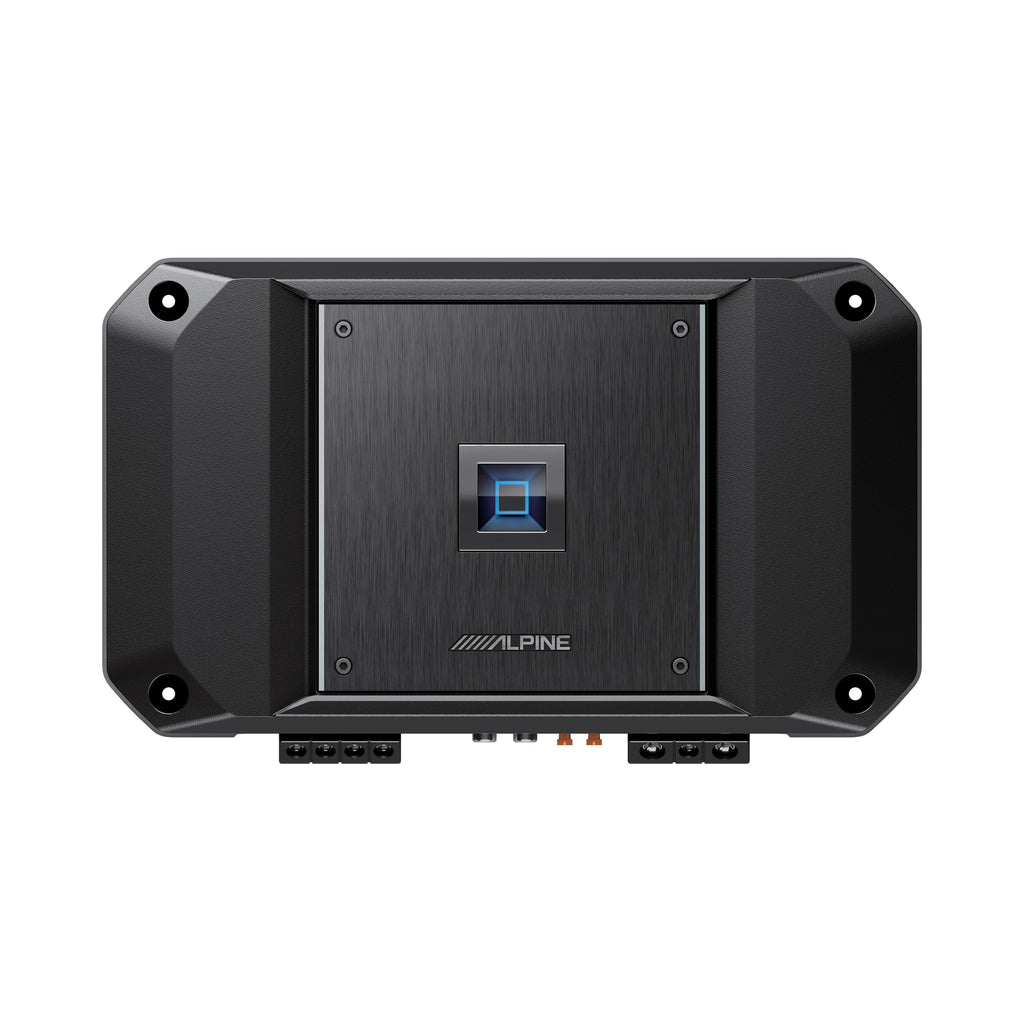

Experience the impressive power and exceptional performance of the Next-Generation R-Series R2-A75M Mono Amplifier, now featuring a more compact design.
Delivers powerful 750W performance in a sleek, compact design.
Built with Alpine’s cutting-edge Class D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
The R2-A75M features a reduced footprint that’s 15% smaller than the previous model (R-A75M), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.
The R2-A75M features intentional design choices that prioritize convenience and simplicity.
All speaker connections are consolidated on one side of the device for easy access, while the amplifier controls have been relocated to the top under a removable plate, allowing for quick adjustments to gain and crossover controls.
The amplifier’s chassis also includes integrated mounting “feet” to streamline the installation process.
- 750W Mono Amplifier
- Alpine’s Class D Amplifier Circuit
- Reduced Footprint (15% smaller vs the previous model)

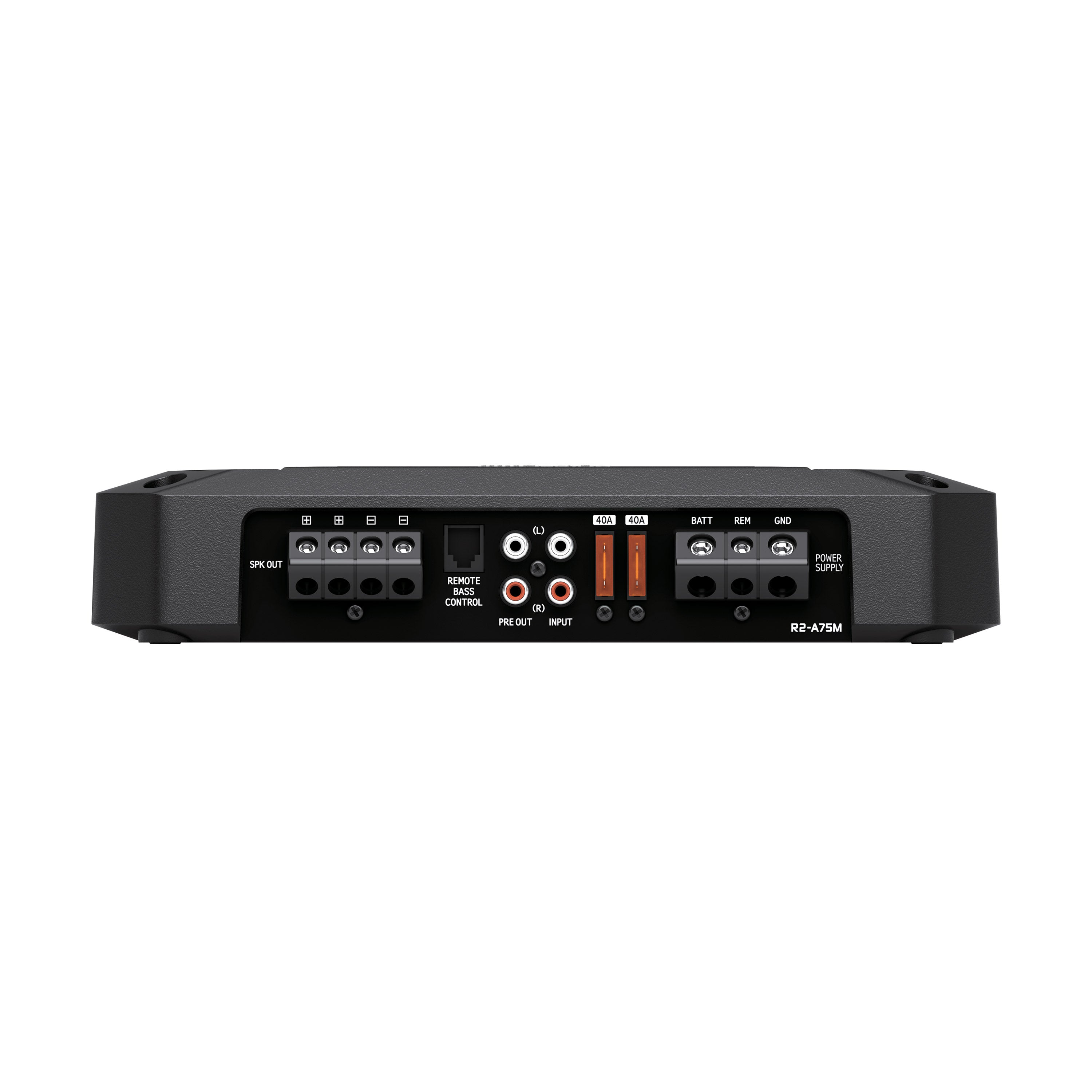

- One-Sided Terminal Layout
- Top Panel Sound Controls
- Optional Remote Bass Knob Compatible (required RUXKNOB.2 or RUX-H01, sold separately)
- • Dimensions: 11.1” W x 2.17” H x 6.5” D
- Power Rating: 14.4V, ≤ 1% THD +N
- Power Output: 500W RMS x 1 @ 4Ω, 750W RMS x 1 @ 2Ω
- S/N Ratio: >75dB
- Frequency Response: 10Hz – 400Hz
- Damping Factor: >250
- Owner’s Manual
- “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
- (x4) Screws for amplifier mounting to the vehicle
- (x3) Allen wrench for amplifier connection and installation (2mm, 2.5mm, 3mm)
- Alpine Registration Card
- Alpine Limited Warranty Sheet
- Installation Guide
