Description
The Next-Generation R-Series sound system line features the same “Loud and Fun” experience now certified for High-Resolution Playback.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers feature High-Resolution Playback capabilities that will take this legendary system to the next level in sound performance.
The speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response.

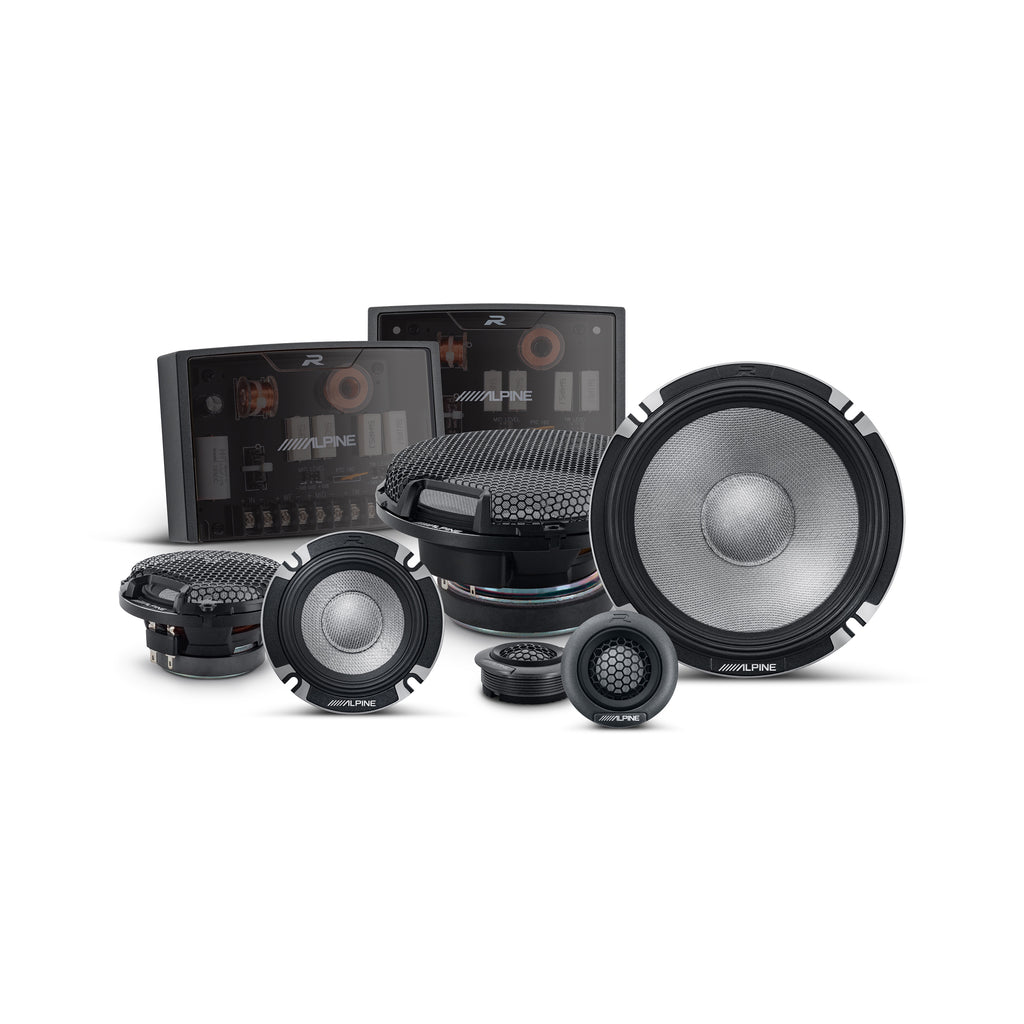

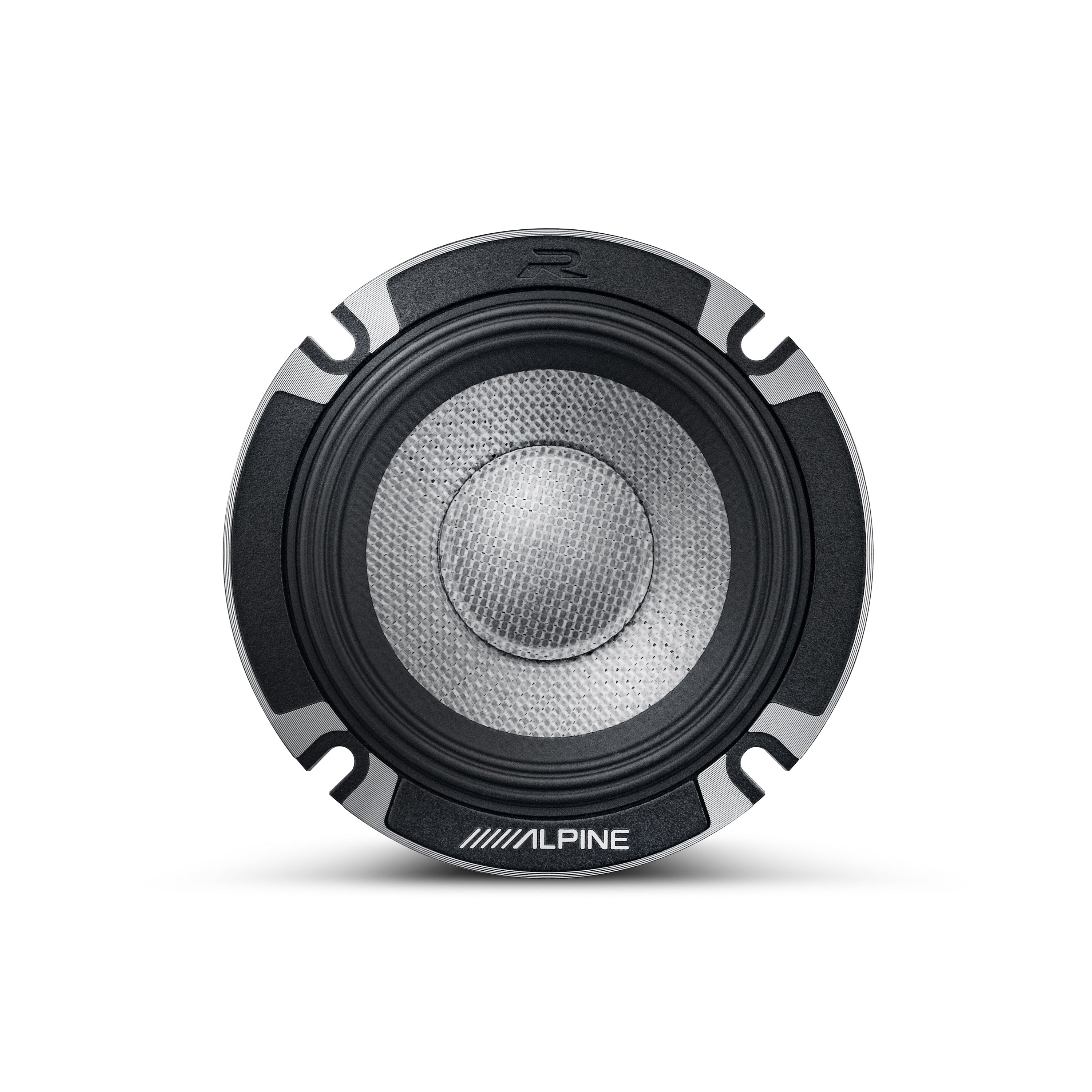

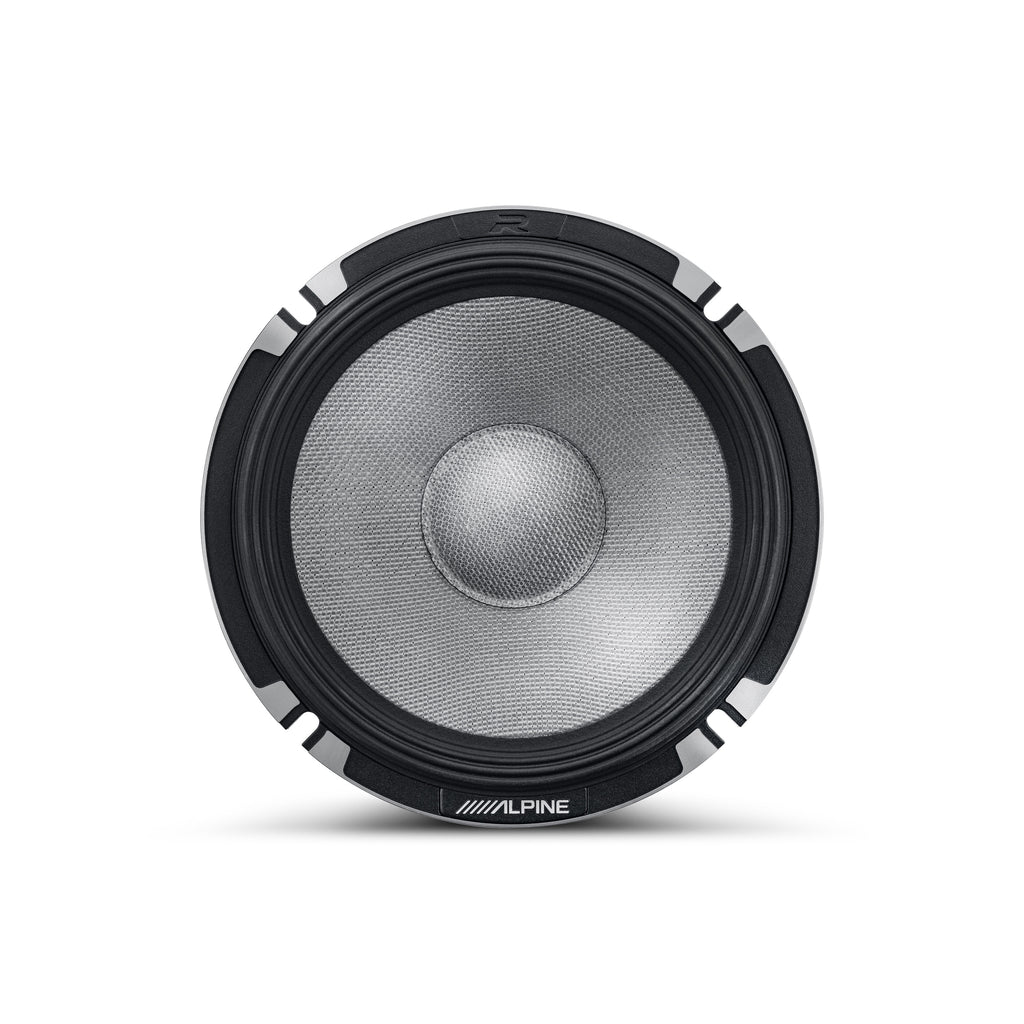

The R2-S653 is a pro series, 3-way component speaker set that includes a 6.5” Mid-Range, 3” Mid-Range, and 1” Component Tweeter with a passive, flexible crossover network that simplifies installation.
The speakers utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest music quality.
A new glass fiber-reinforced cone attributes to more motion and less distortion from the cone during playback.

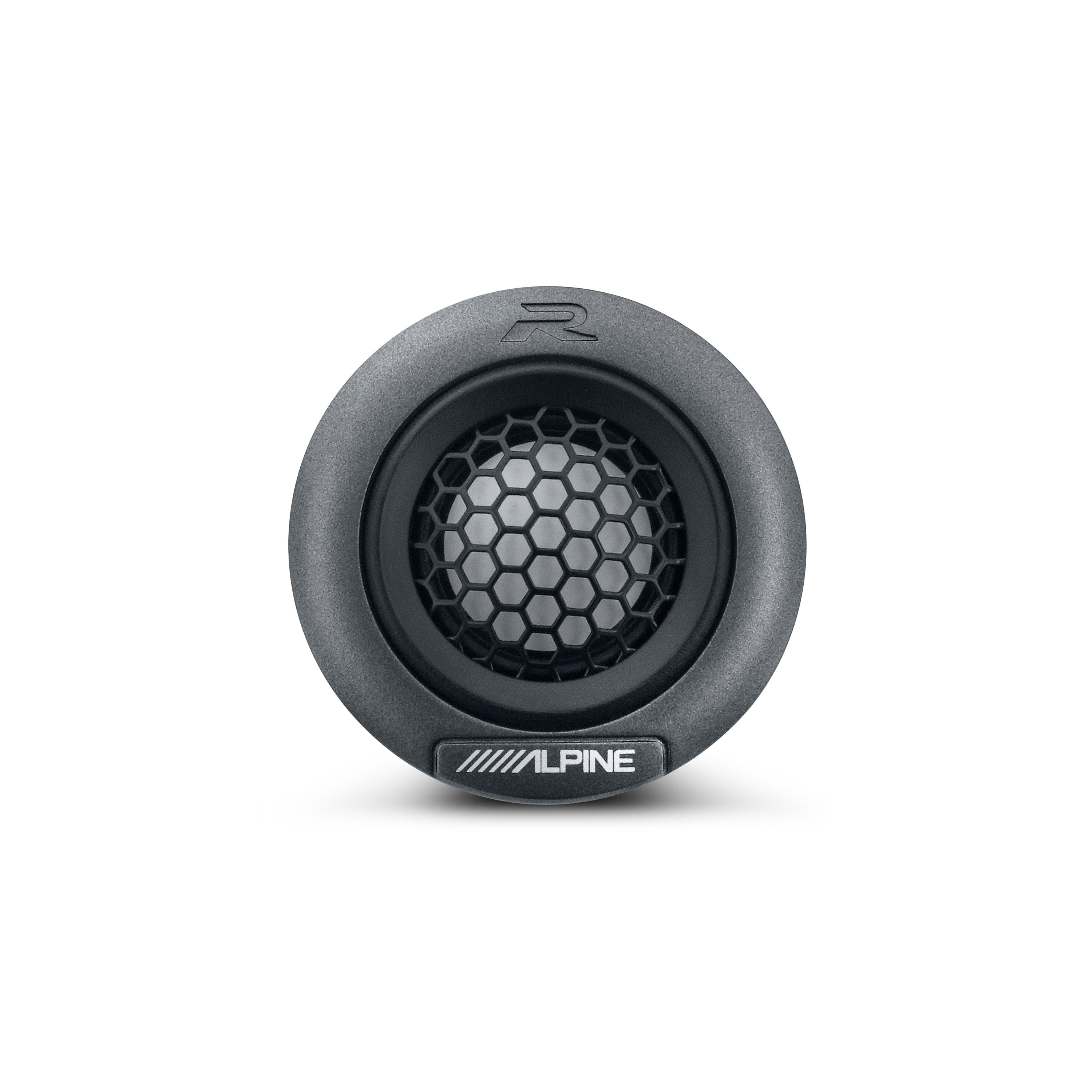

Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel-mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
- Hi-Res Audio Certified
- Glass Fiber Reinforced Cone
- Die-Cast Aluminum Basket
- Ferrite Magnet Structure
- High-Amplitude Multi-Roll (H.A.M.R.) Surround

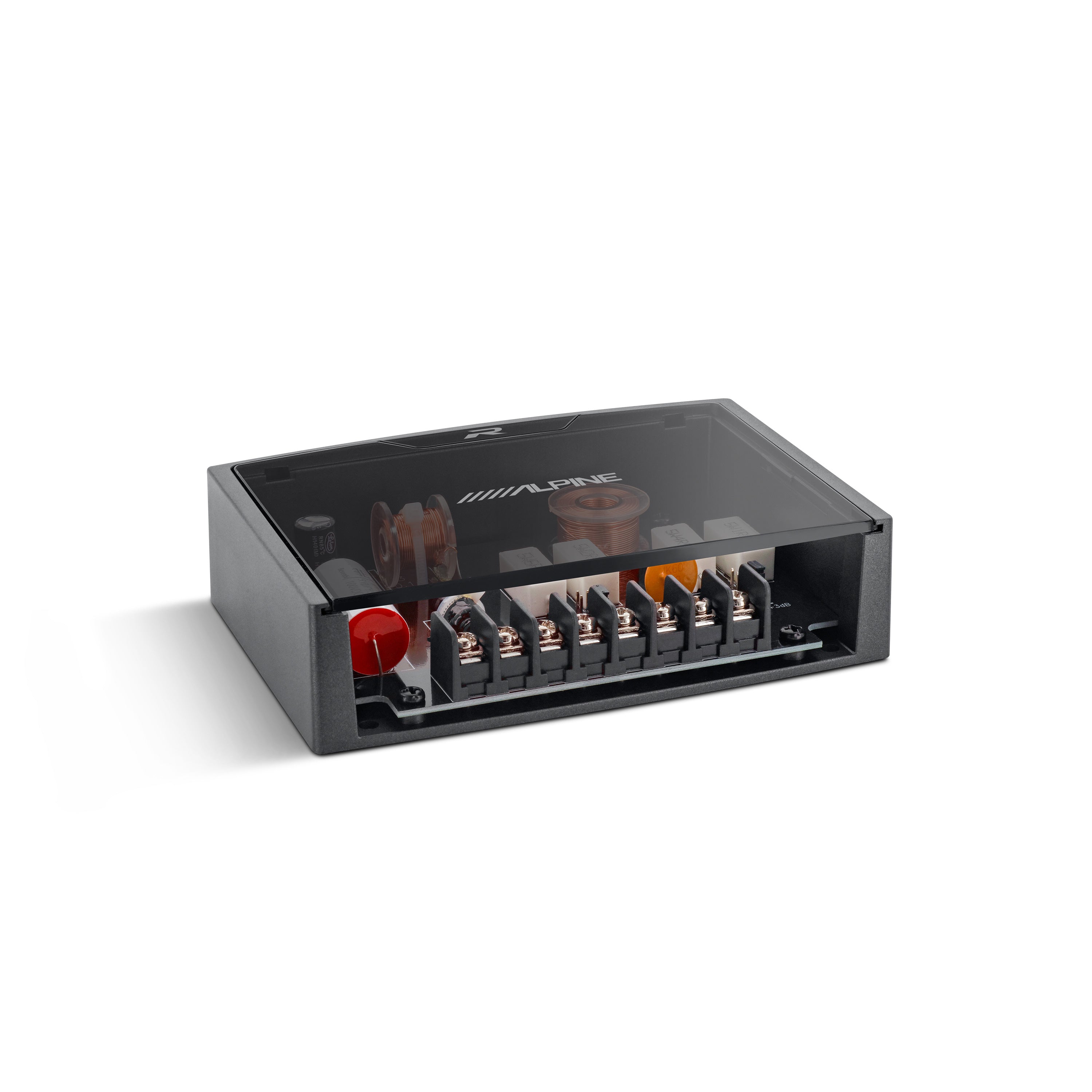

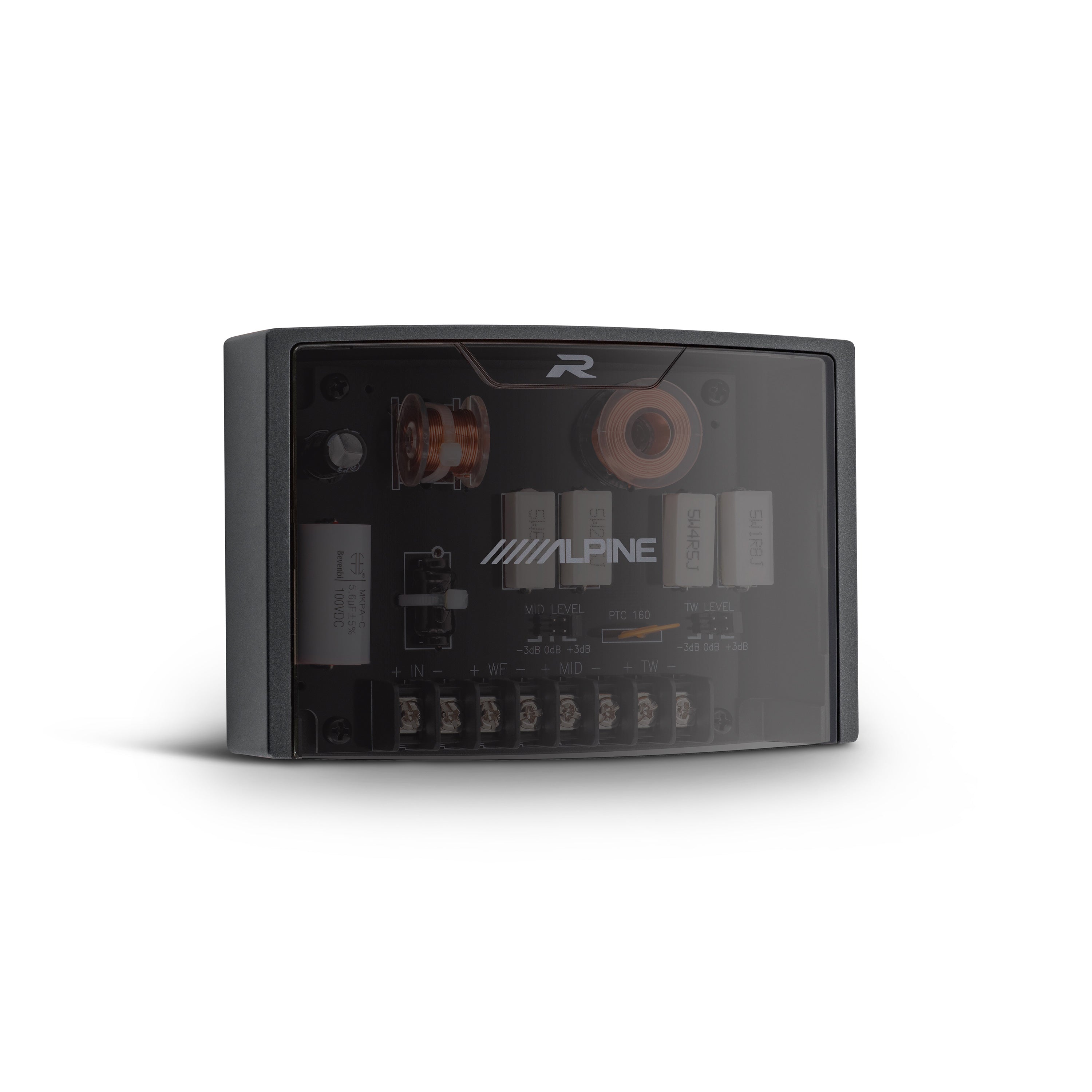

- 2 Premium-Grade Performance Crossover Networks
- Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing

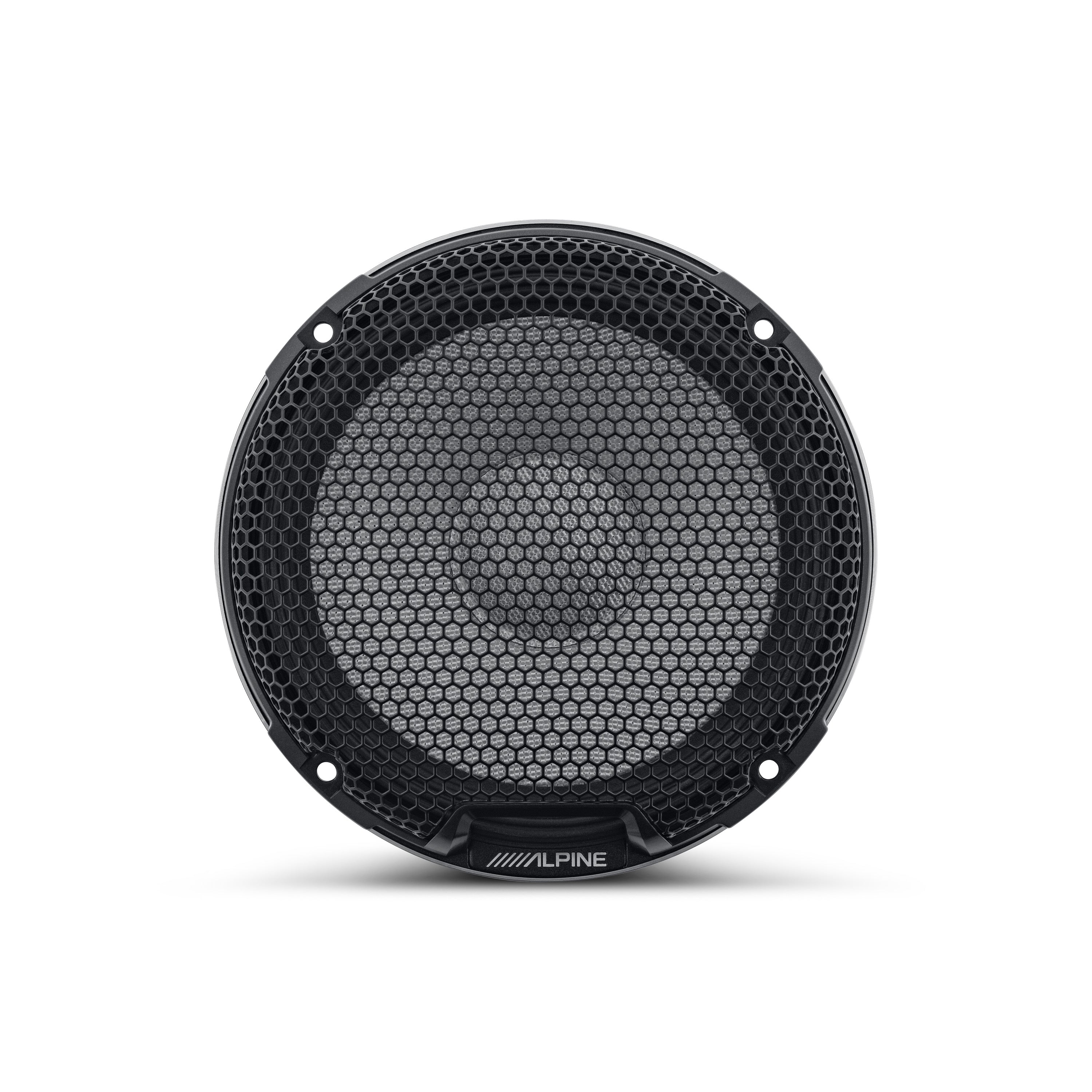

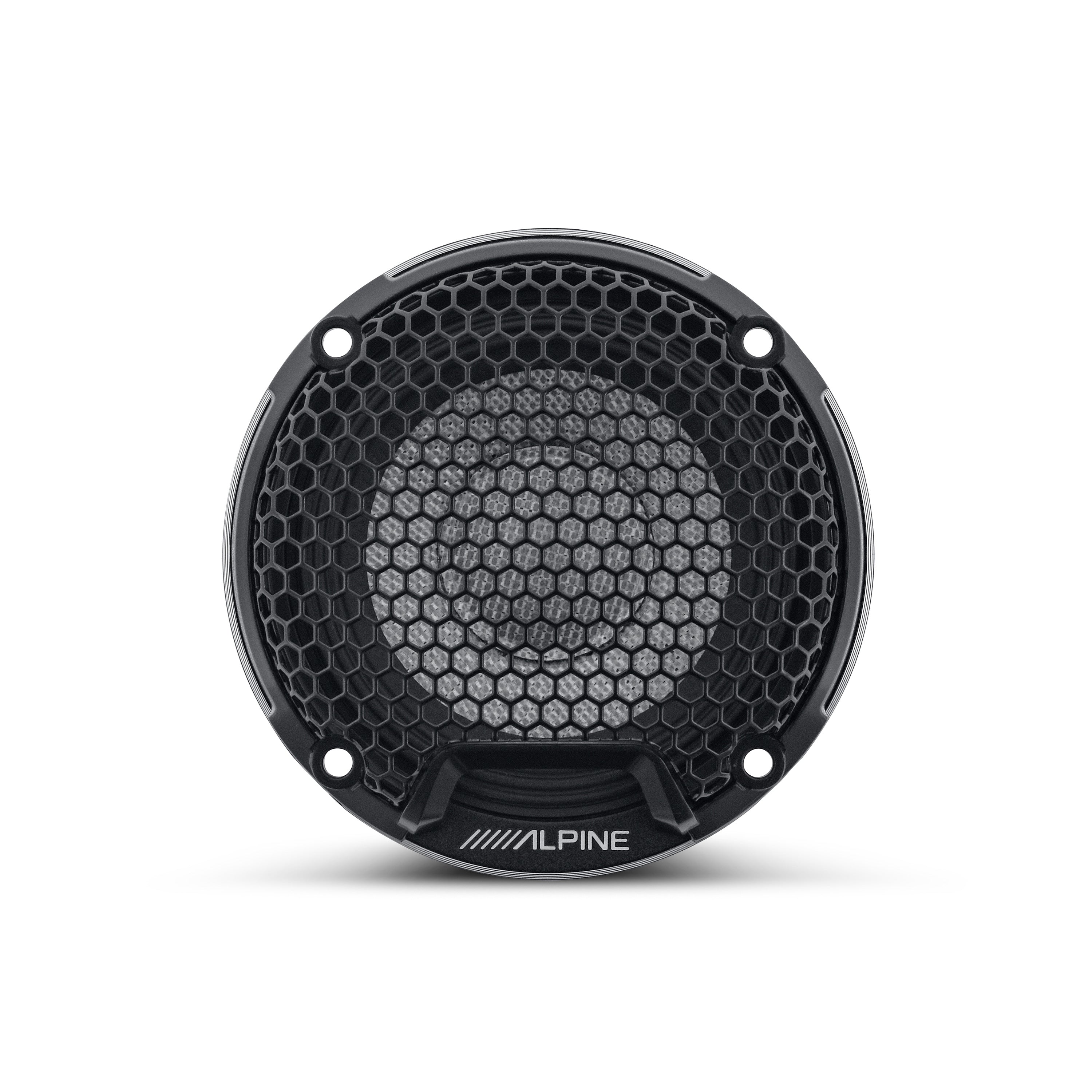

- Protective Open Mesh Grille Pair Included
- 6.5” Mid-Bass + 3” Mid-Range + 1” Tweeter (Component)
- Frequency Response: 65Hz -40kHz
- Power Handling: 100W RMS / 300W Peak
