Description
The Next-Generation R-Series sound system line features the same “Loud and Fun” experience now certified for High-Resolution Playback.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers feature High-Resolution Playback capabilities that will take this legendary system to the next level in sound performance.
The speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response.

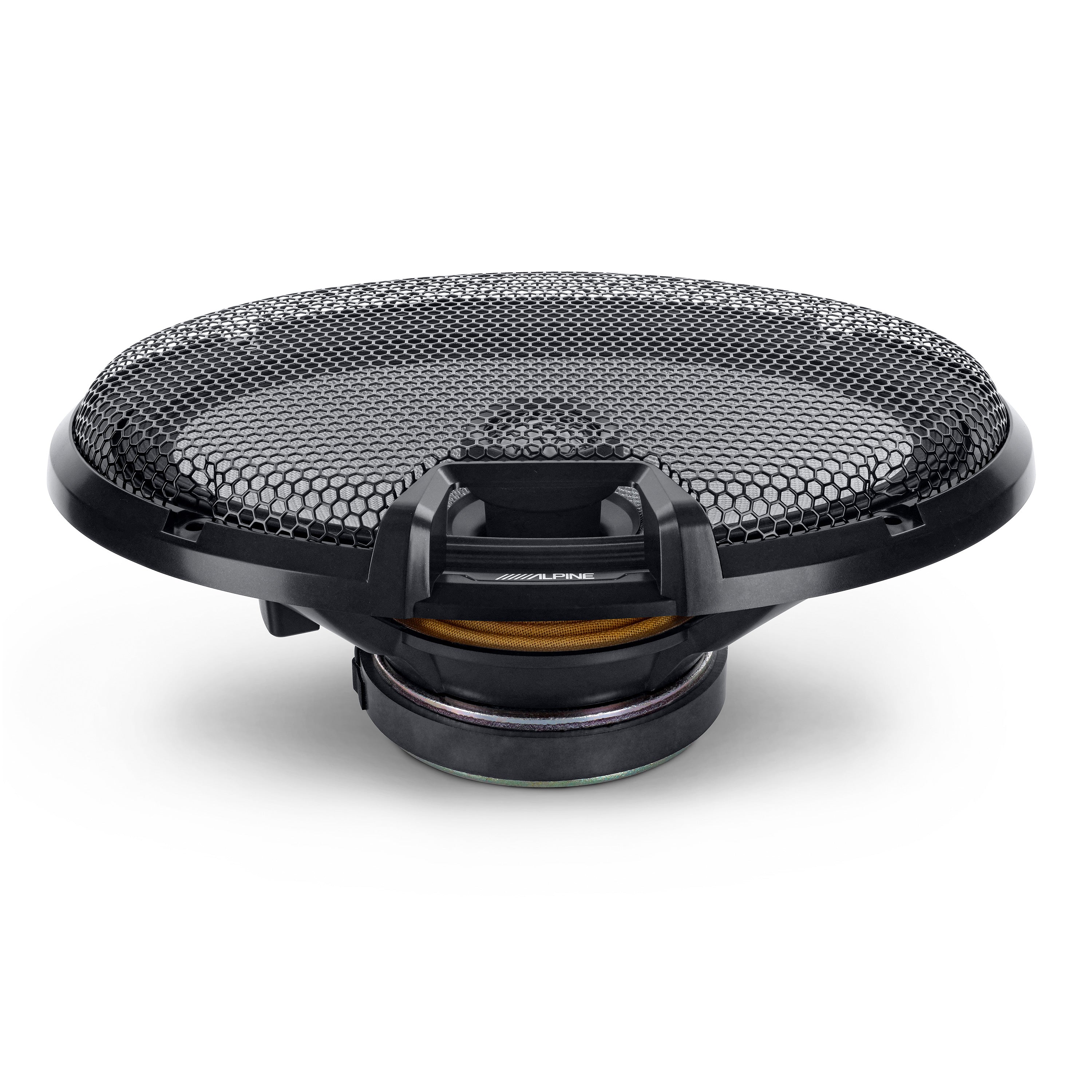

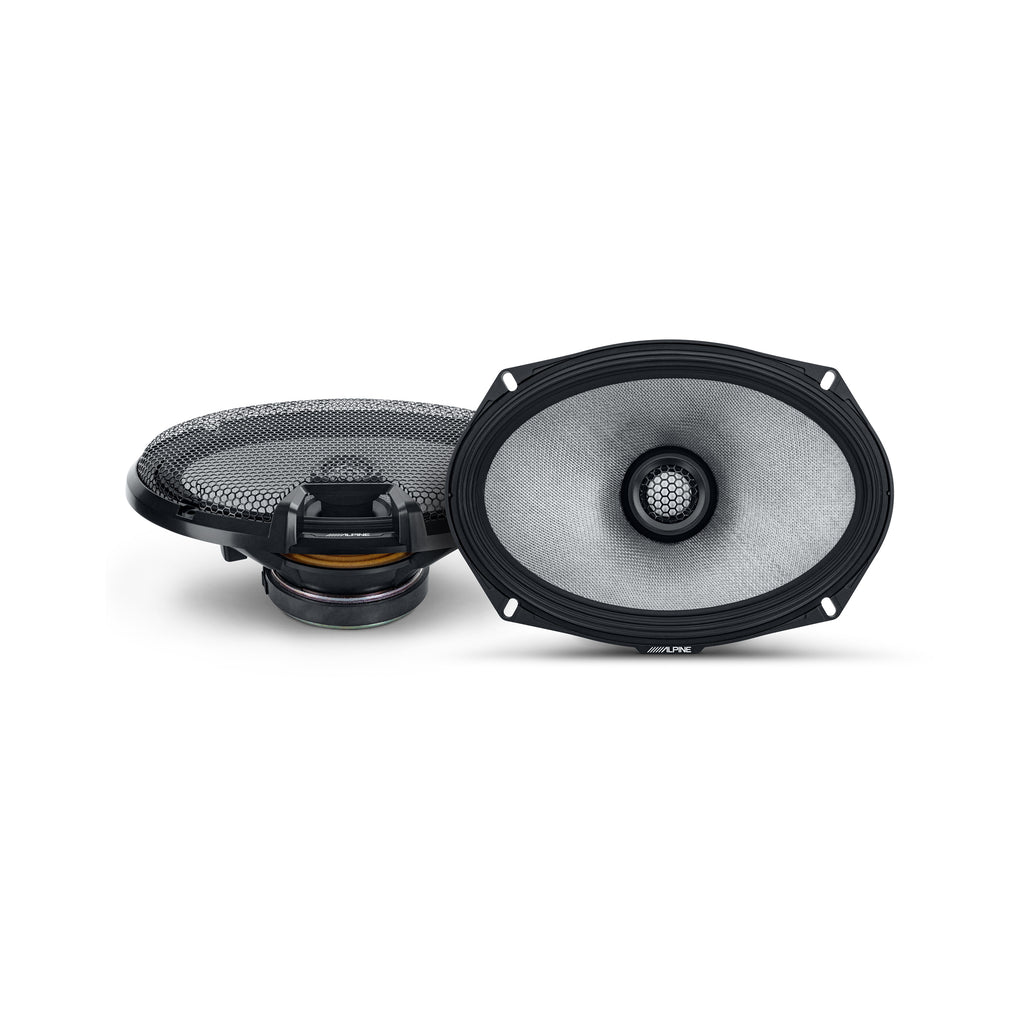

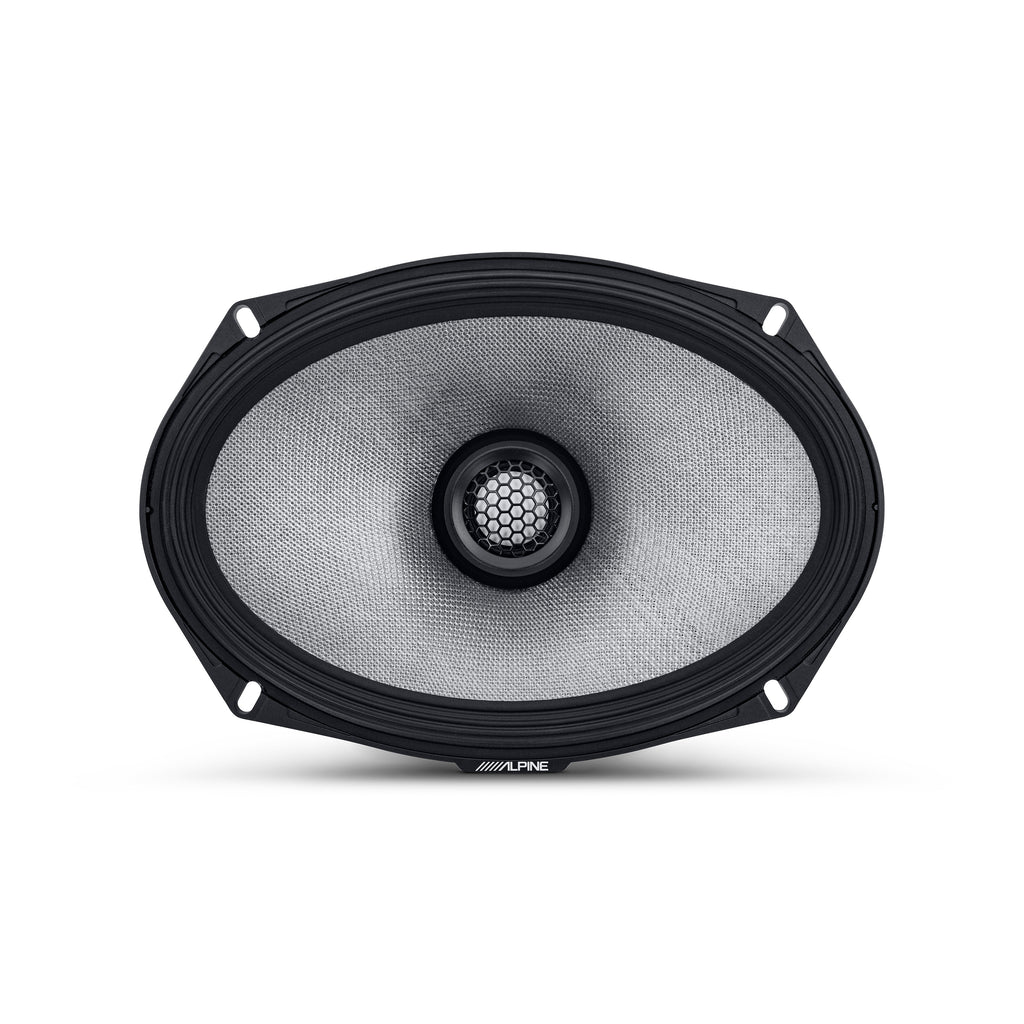

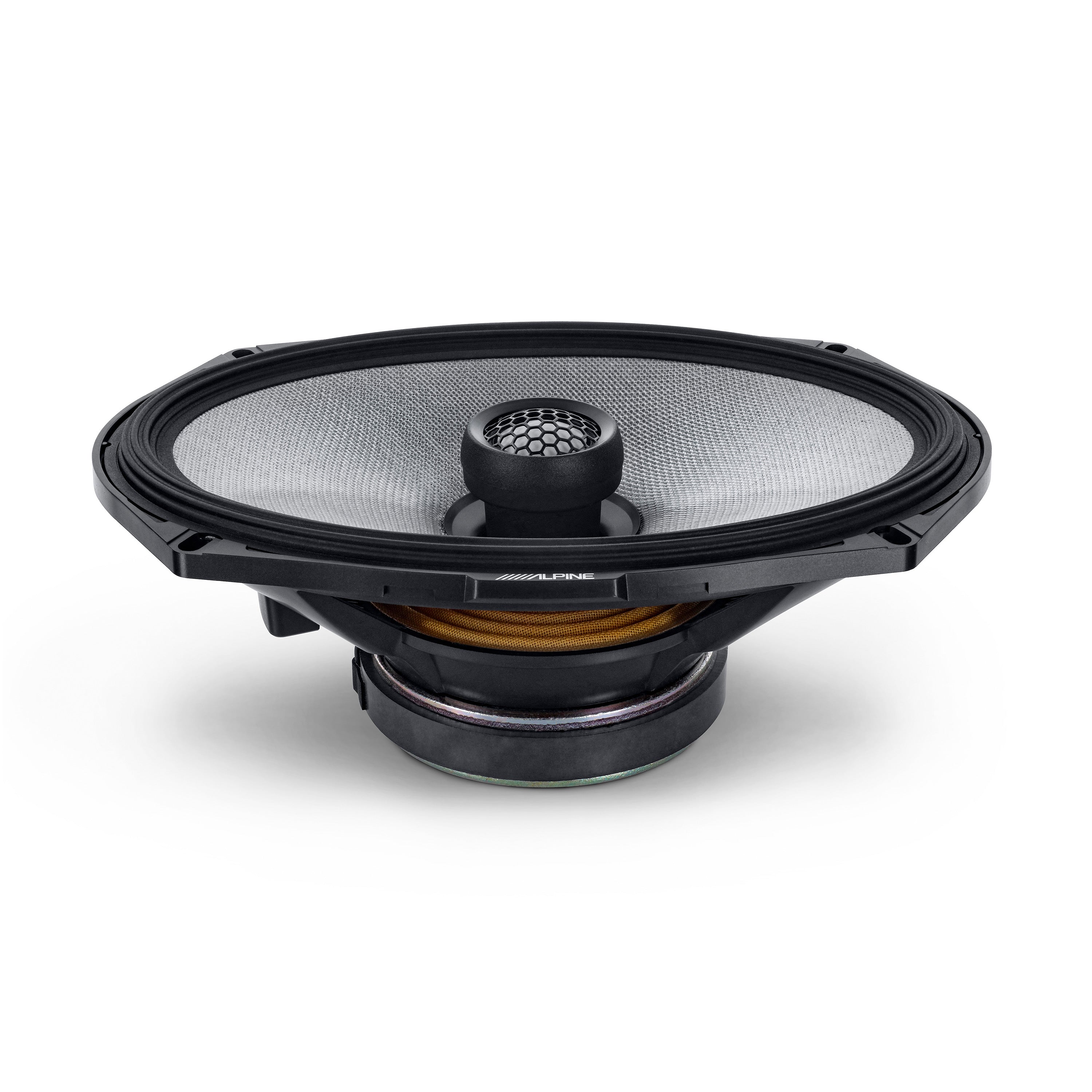

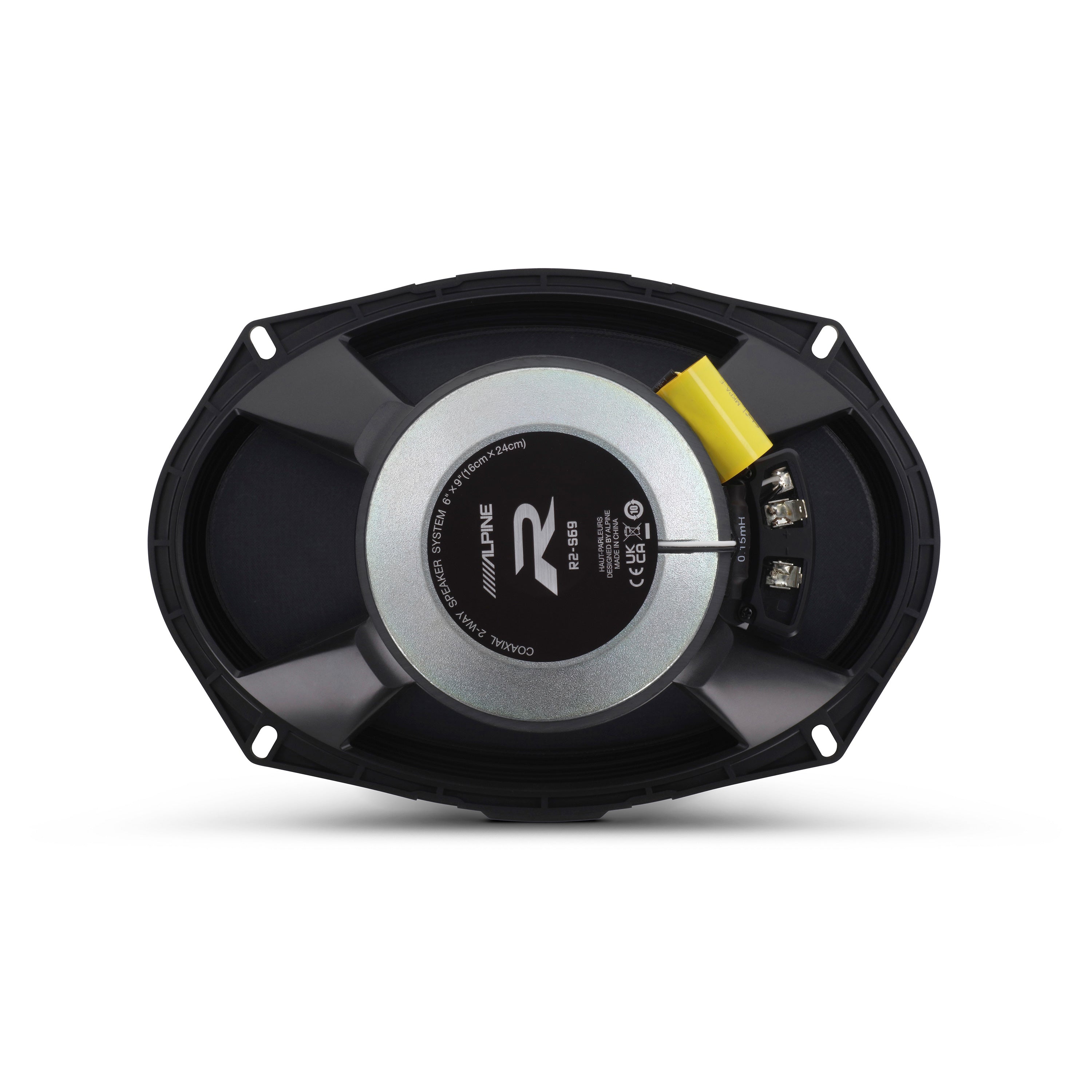

The R2-S69 is a standard series coaxial speaker set that includes a 6x9” Mid-Range and 1” Coaxial Tweeter that is designed to fit into full-sized trucks or vehicles with 6x9” factory speakers and a flexible crossover network that simplifies installation.
The speakers utilize a traditional composite basket and a new glass fiber-reinforced cone that attributes to more motion and less distortion from the cone during playback.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel-mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
- Hi-Res Audio Certified
- Glass Fiber Reinforced Cone
- Ferrite Magnet Structure
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- 2 Premium-Grade Performance Crossover Networks
- Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing

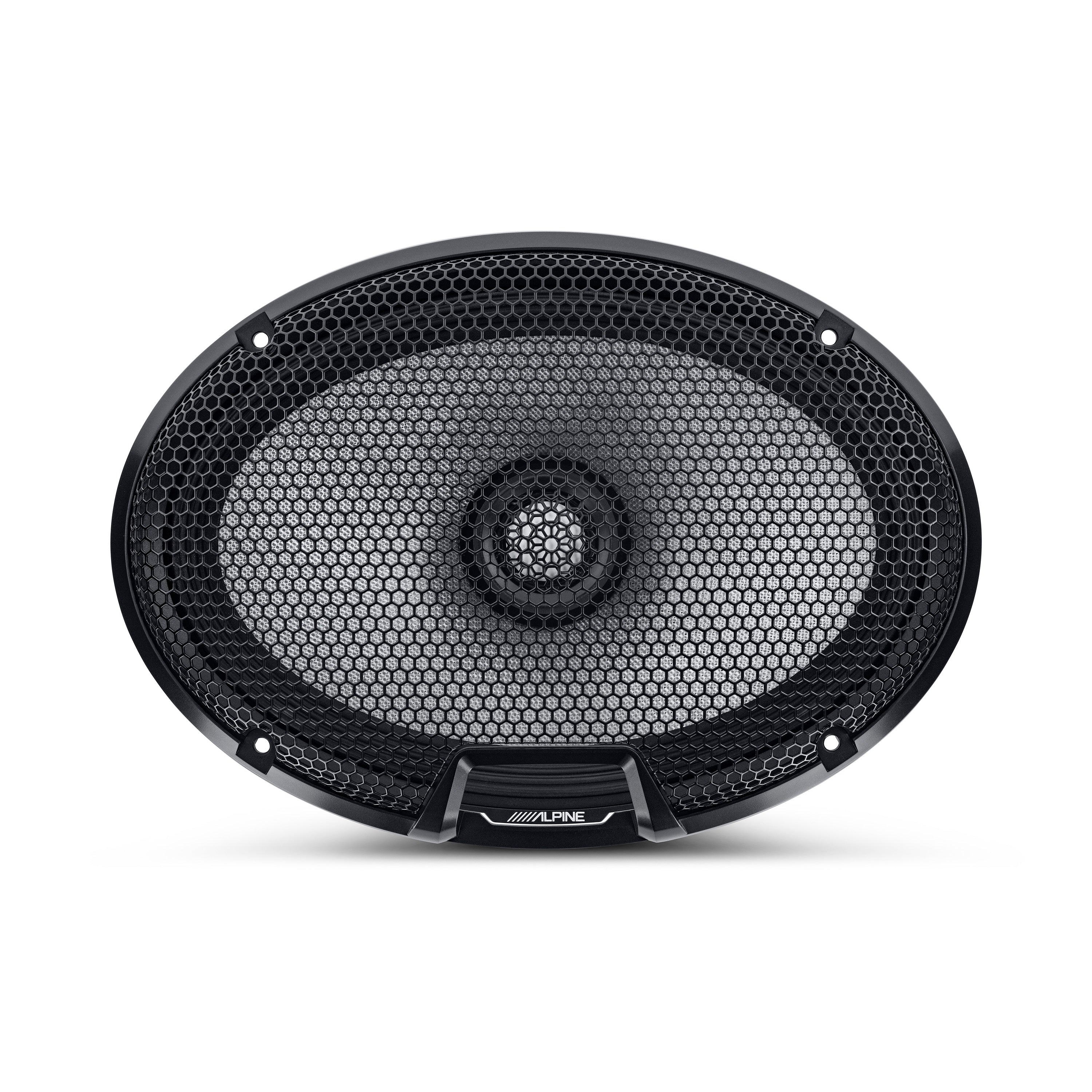

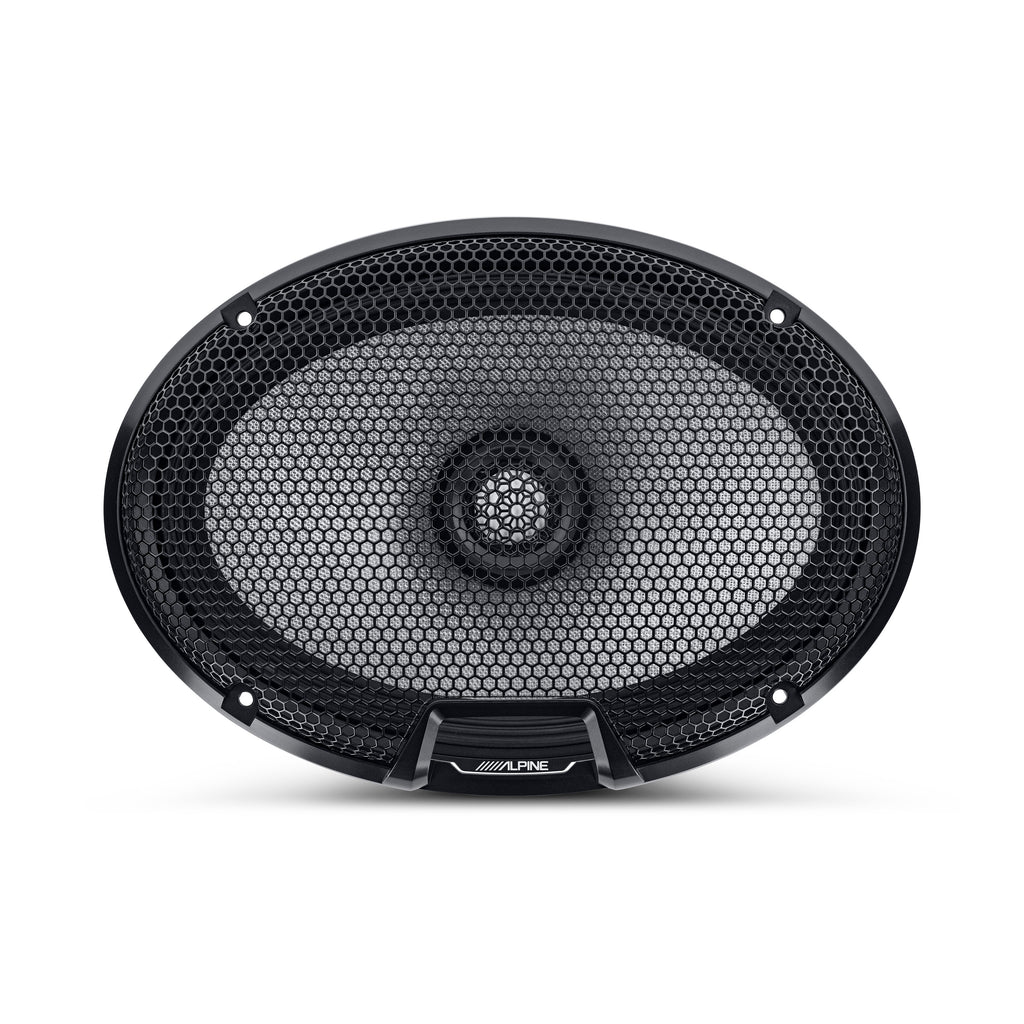

- Protective Open Mesh Grille Pair Included
- 6x9” Mid-Bass + 1” Tweeter (Coaxial)
- Frequency Response: 60Hz -40kHz
- Power Handling: 100W RMS / 300W Peak
