Description
The next generation of sound performance is here with the new R-Series Halo Preloaded Subwoofers featuring the new R-Series “R2” subwoofers for more accurate and authoritative bass.
The new R2-Series subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control compared to the previous generation.

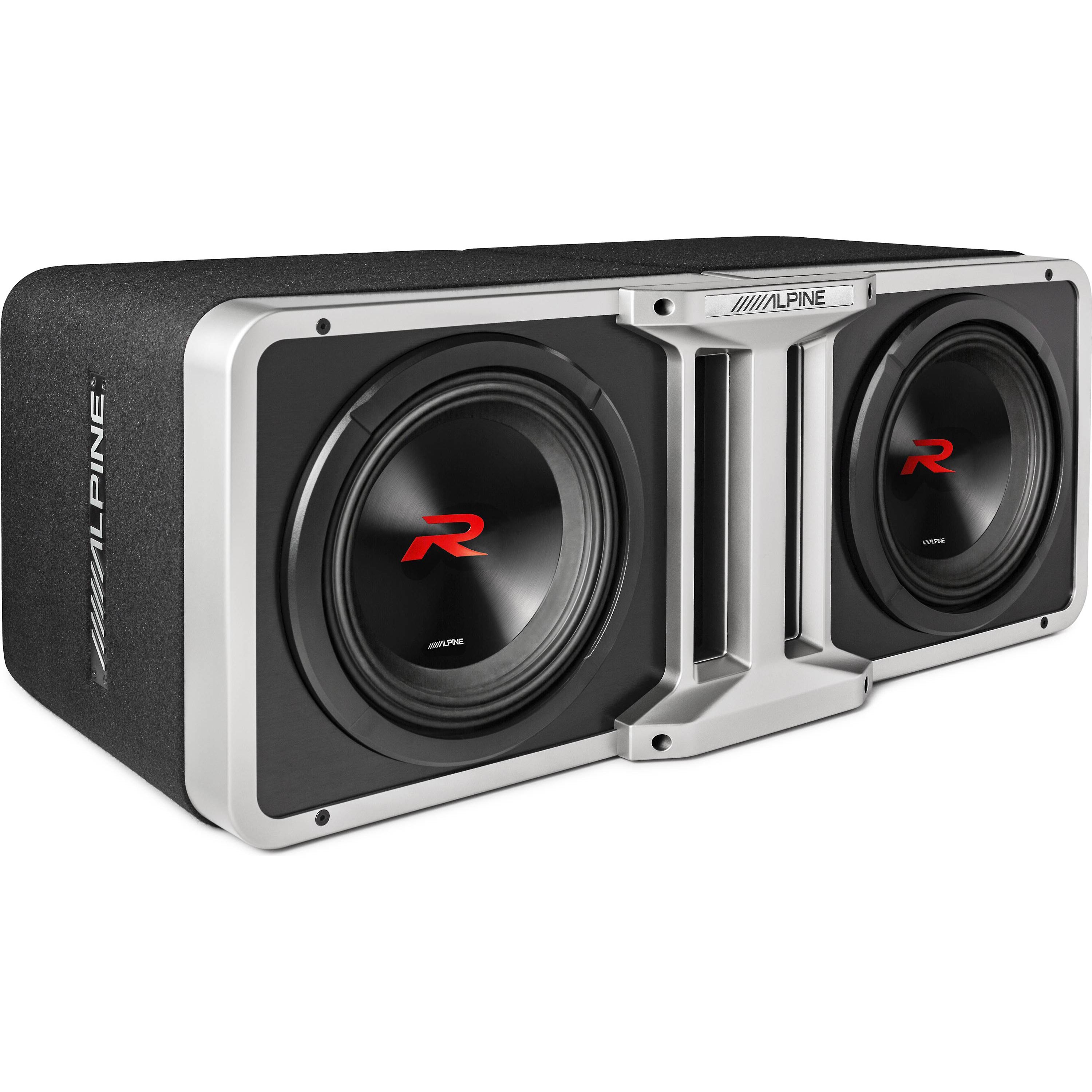

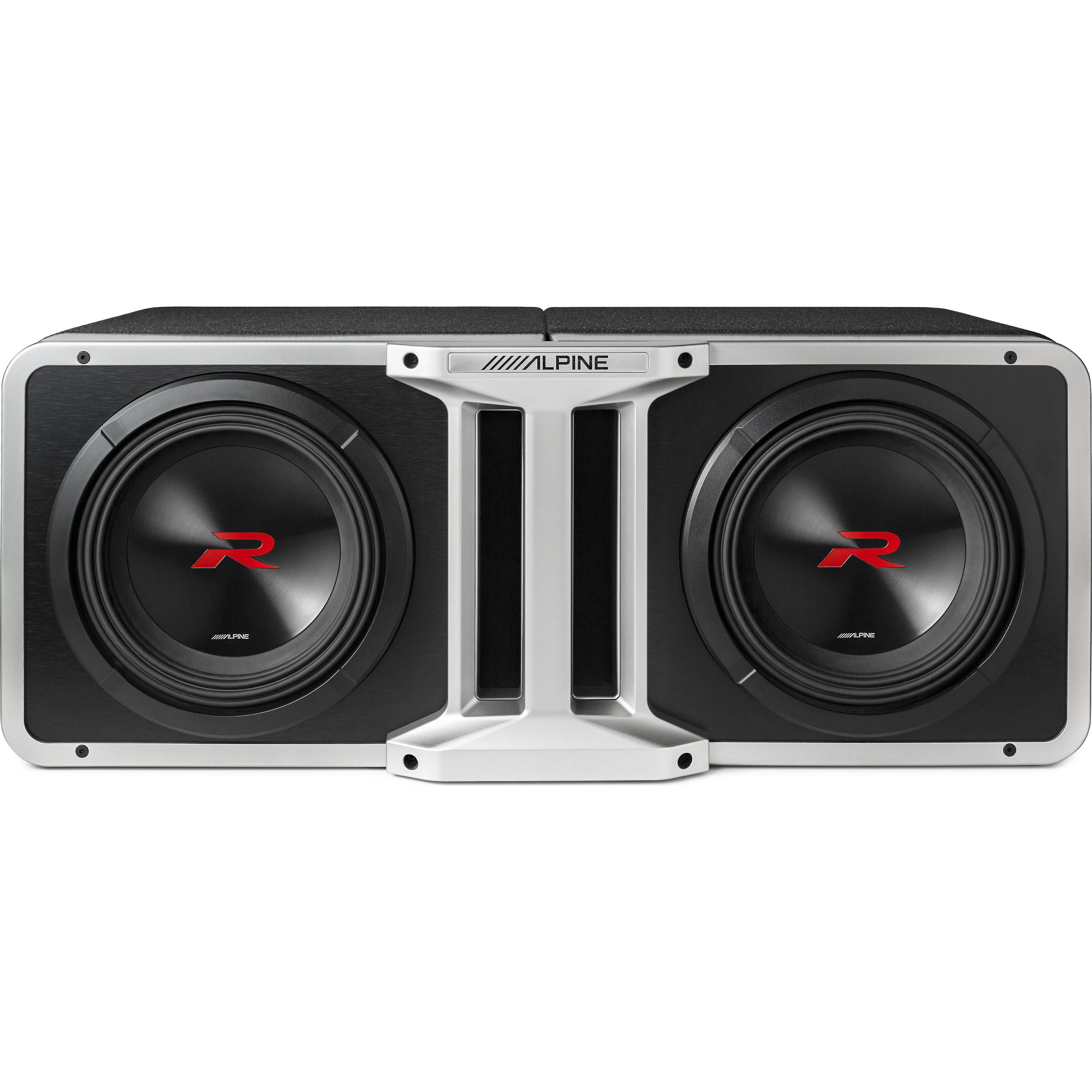

ProLink™ is unique to Alpine and allows you to link two R2-SB10V enclosures together using an optional KTX-H10 Linking Kit (sold separately) to create a dual subwoofer-enclosure.

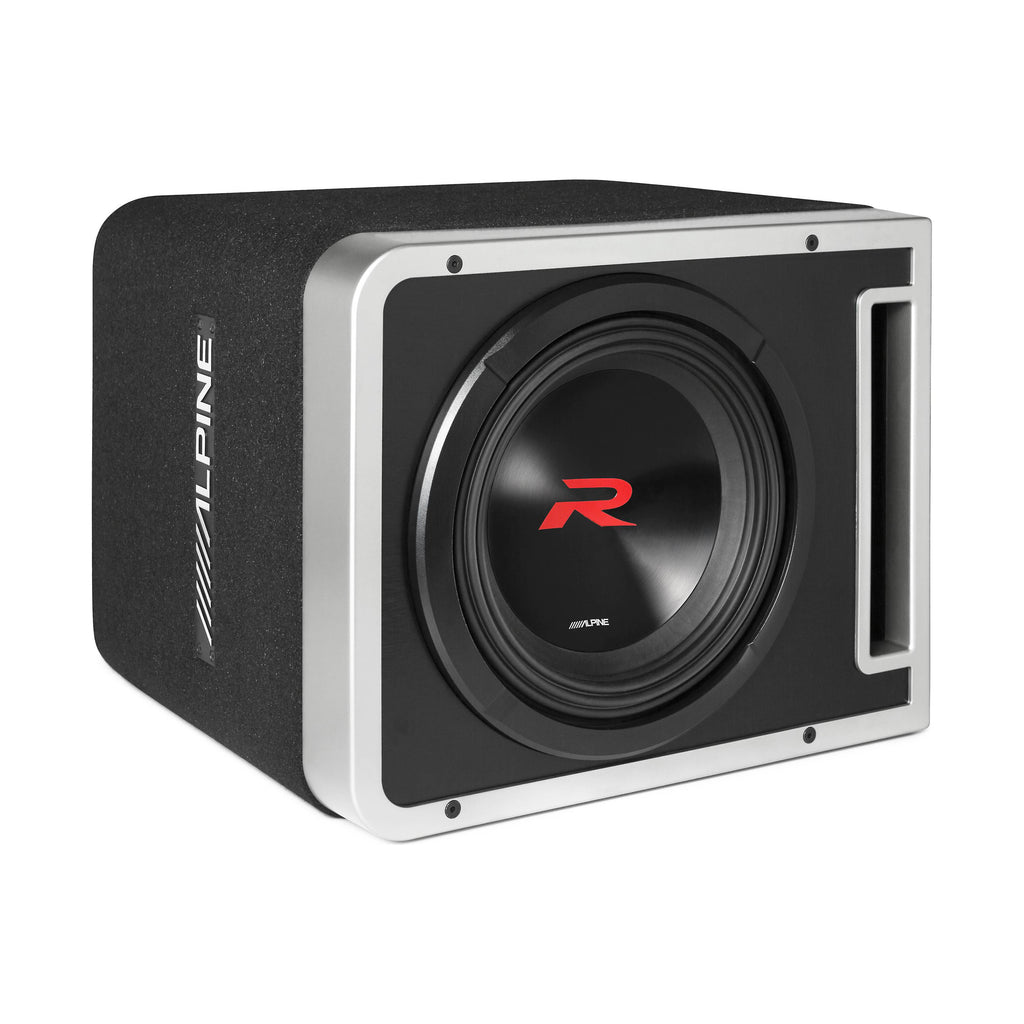

Drawing inspiration from the sleek, tapered lines and clean silver finish of the Alpine Halo Display, the R2-SB10V shares the same unique, curved edges outlined by a silver trim and a metallic front baffle for a matching system aesthetic.

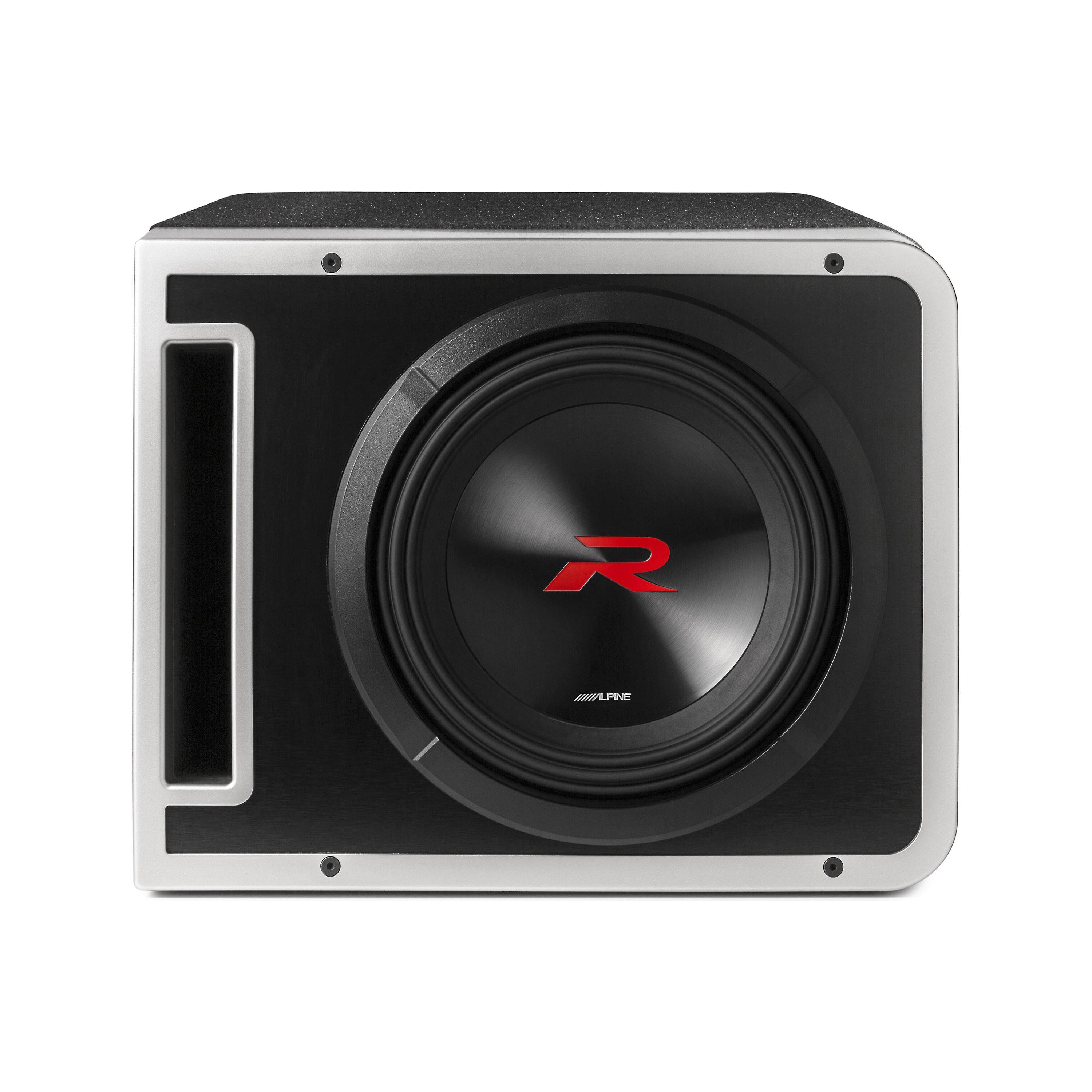

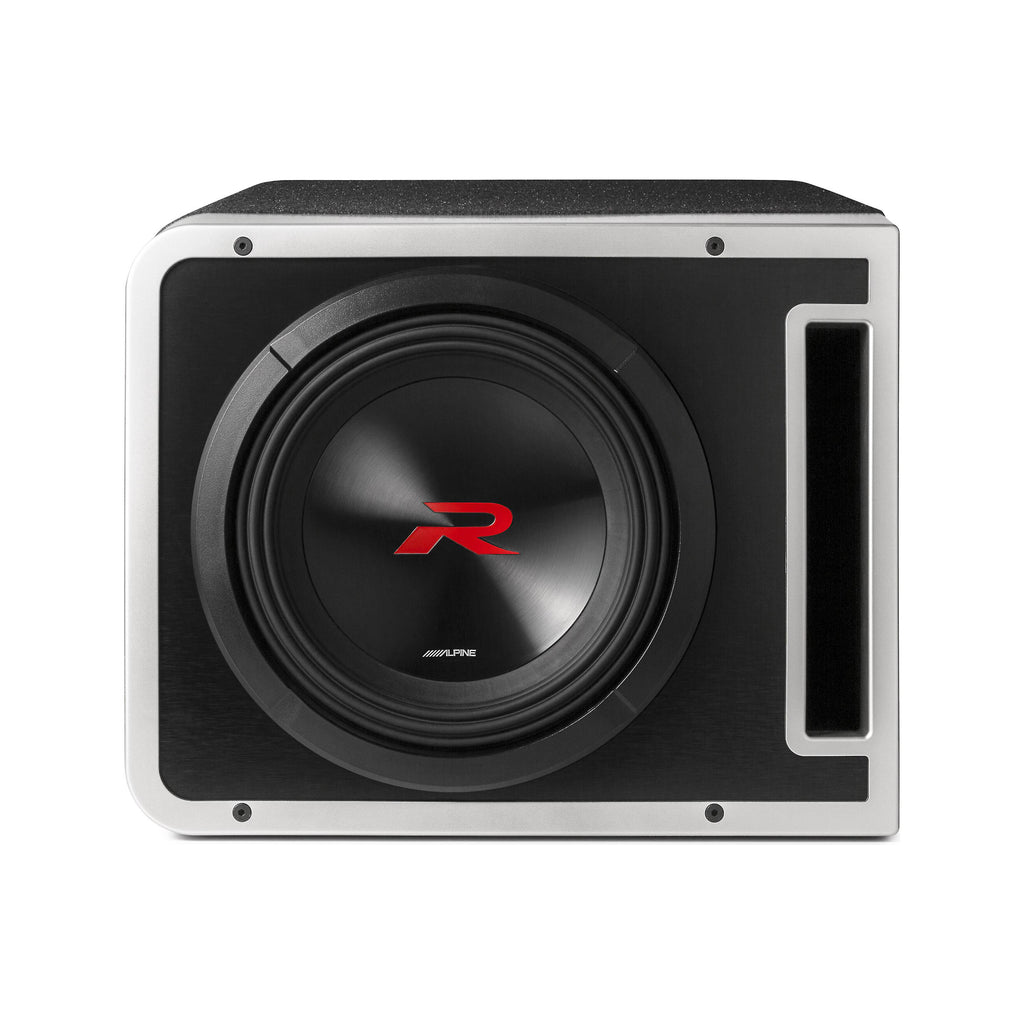

The ported enclosure design features an optimized vent and rounded internal port edges that maximize the output performance of the subwoofer.
Made from 3/4" medium density fiberboard (MDF) with internal edge bracing, the R2-SB10V is sturdy with a rugged, yet stylish black carpet cover and brushed aluminum finish on the metallic front baffle.
The R2-SB10V includes a preloaded R2-Series R2-W10D4 10" subwoofer that's turned to 36Hz for optimized performance with Alpine's R-Series sound system line.
Dual 4Ω voice coils are wired in parallel for a 2Ω load that's compatible with the R2-Series R2-A75M Mono Power Amplifier.

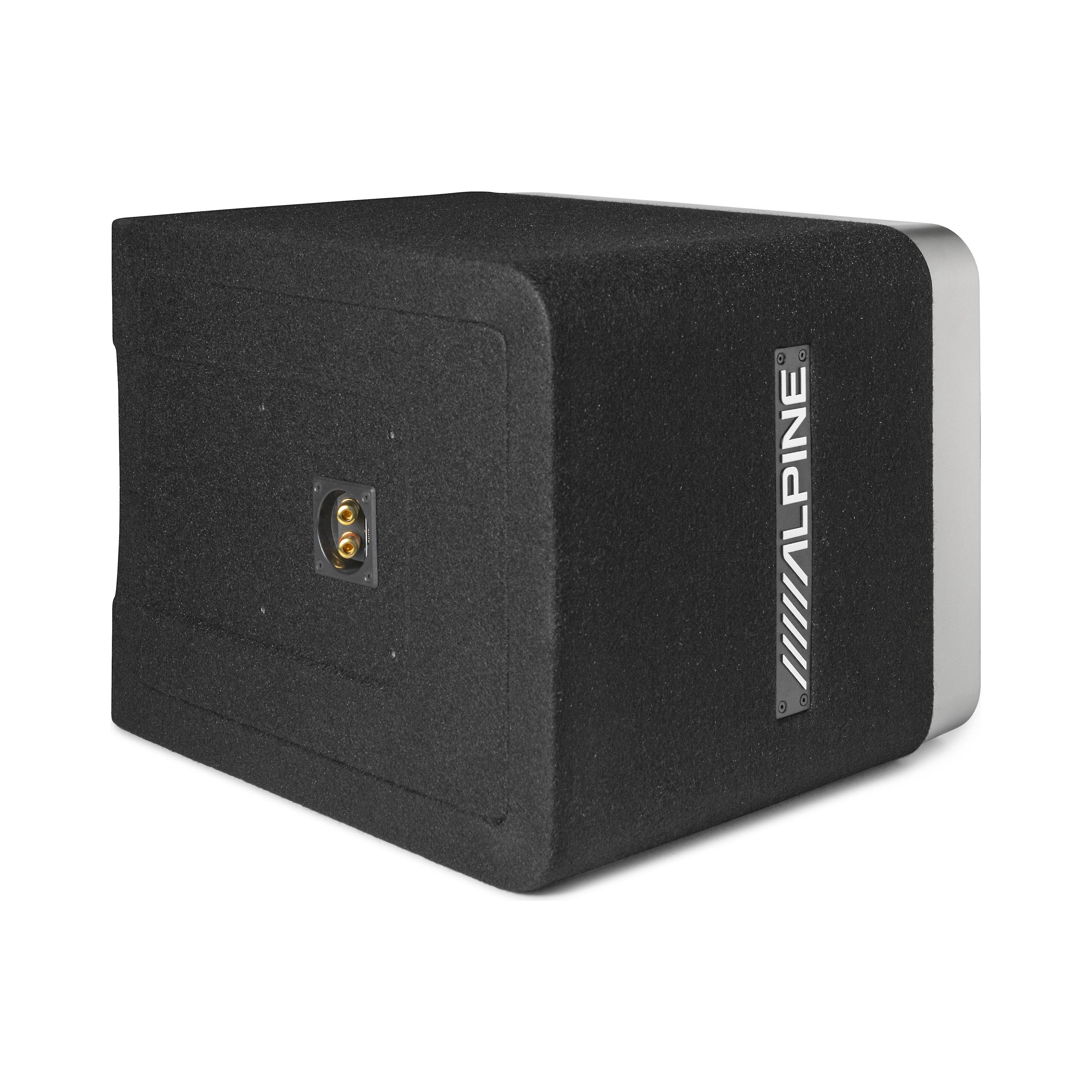

Gold-plated binding post terminals allow for speaker wire, ring terminal, or quick disconnect banana plug connections from your amplifier's output.
- Groundbreaking Alpine Halo Design
- Sensitivity 82.3 dB
- ProLink™ ported enclosure design
- Optimal Sound Performance
- 750W RMS Power Handling
- Includes preloaded R2-W10D4 10” R2-Series subwoofer
- CARB compliant 3/4-inch MDF construction
- Premium black carpet

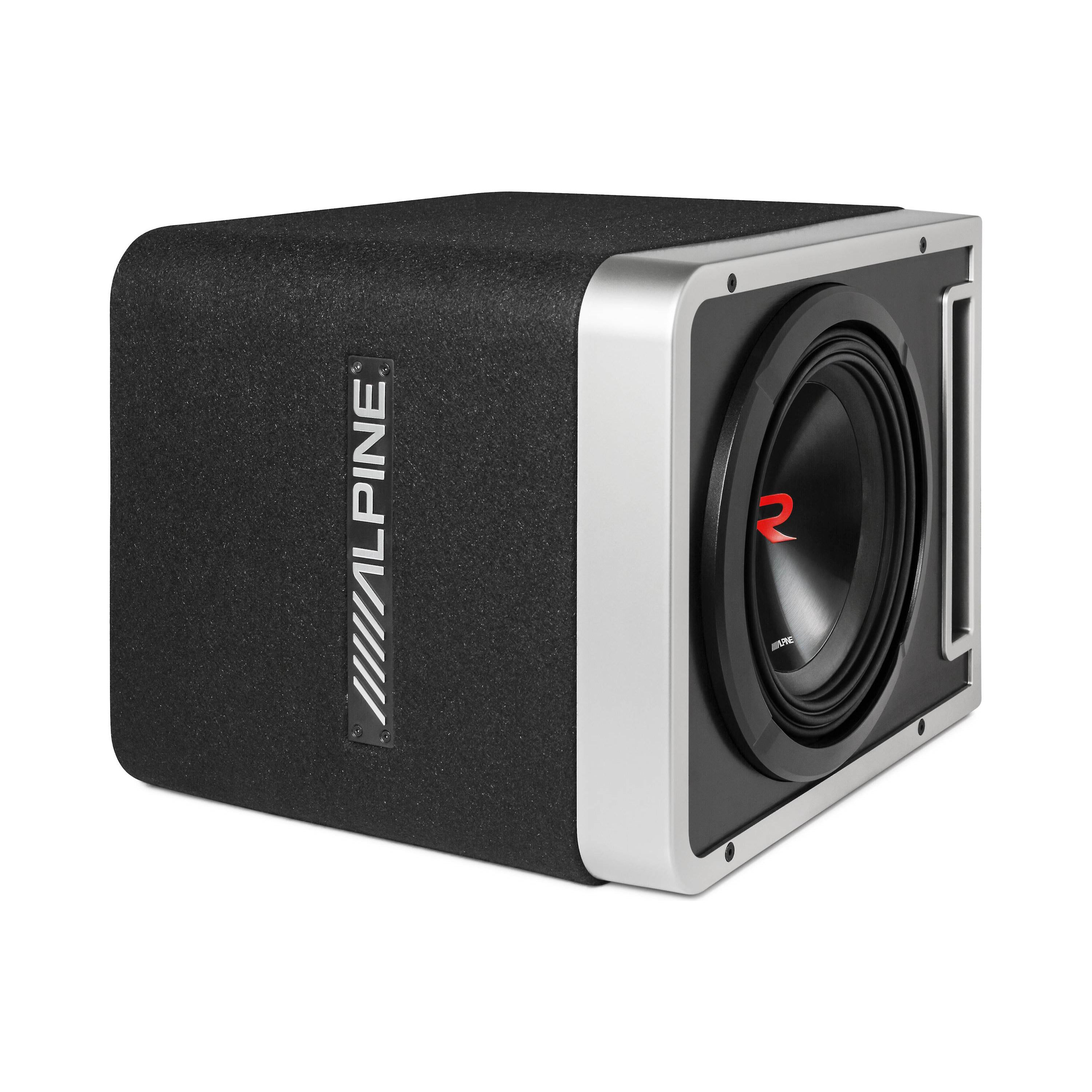

- Silver Alpine embossed side logo badge
- Brushed aluminum finished metallic front baffle
- 16” W x 12.6825” H x 14.5” D
- Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R2-A75M)
- 12 Gauge OFC Speaker Box Wire
- Binding Post Terminal Cup
- Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
- 2Ω Impedance
- Frequency Response: 26-200Hz
- Vented Enclosure Tuning Frequency: 36Hz
