Description

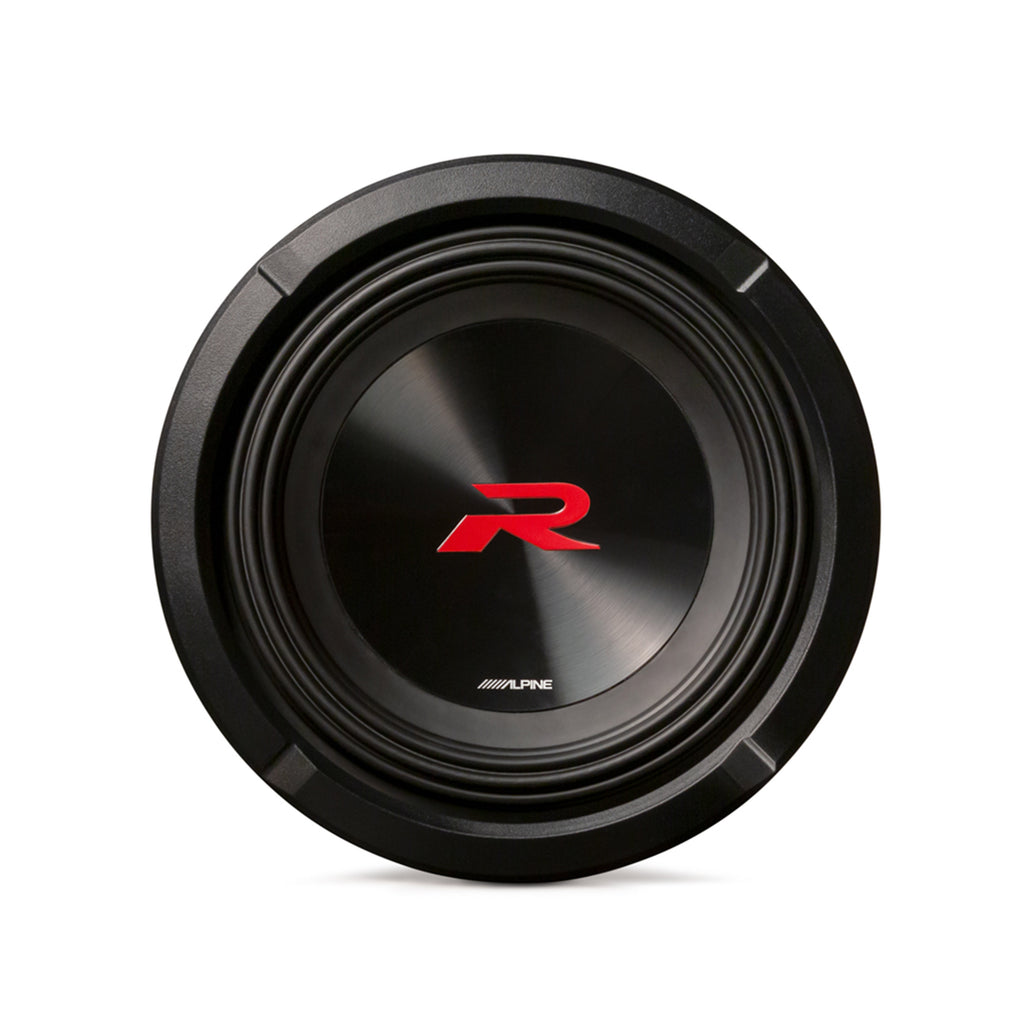

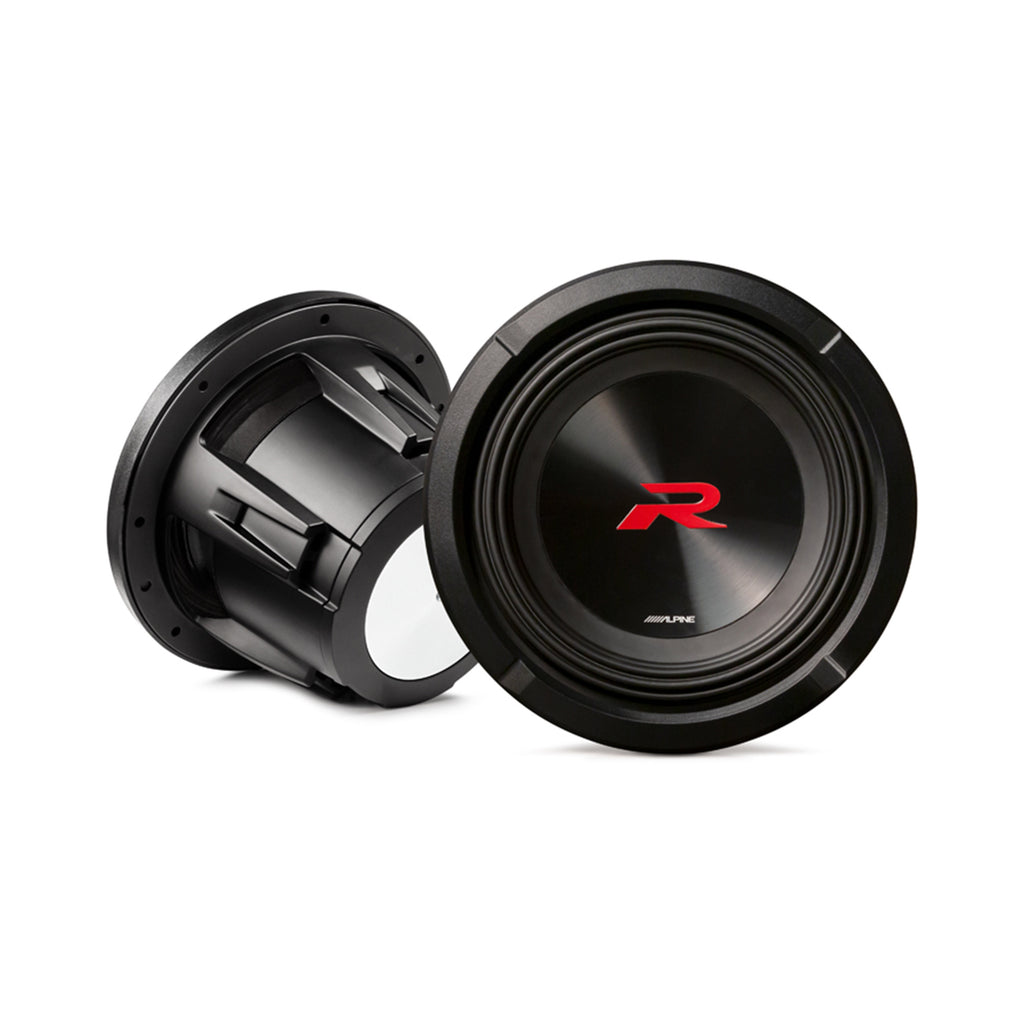

Introducing the next generation of R-Series subwoofers, now with Hi-Res Audio Playback that makes every song feel like a live performance.
The new R-Series subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control.
An integrated Faraday ring minimizes distortion for cleaner bass output.
A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
A new Polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping.
The new R-Series subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications.
A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
The new R-Series subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology.
The R-Series subwoofers are High-Resolution Audio Compliant.
Rated at 350W RMS (1000 peak power handling), the R-Series subwoofers will provide deep bass output.
- Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Hi-Res Audio Compliant (High-Resolution Audio Playback)
- Large Double-Stacked Magnets
- 350W RMS
- 1000W Peak Power Handling
- Frequency Response (0/-3dB): 30Hz-200Hz
- Sensitivity (1W/1m): 83.5dB
- Nominal Impedance: 2Ω (4+4) or 4Ω (2+2)
- 35mm voice coil
- CTA-2031 compliant
- Mounting Depth: 4-3/8” (118mm)
- Cutout Size: 6-15/16” (176mm)
- XMax: 12mm
- Magnet Weight: 56oz

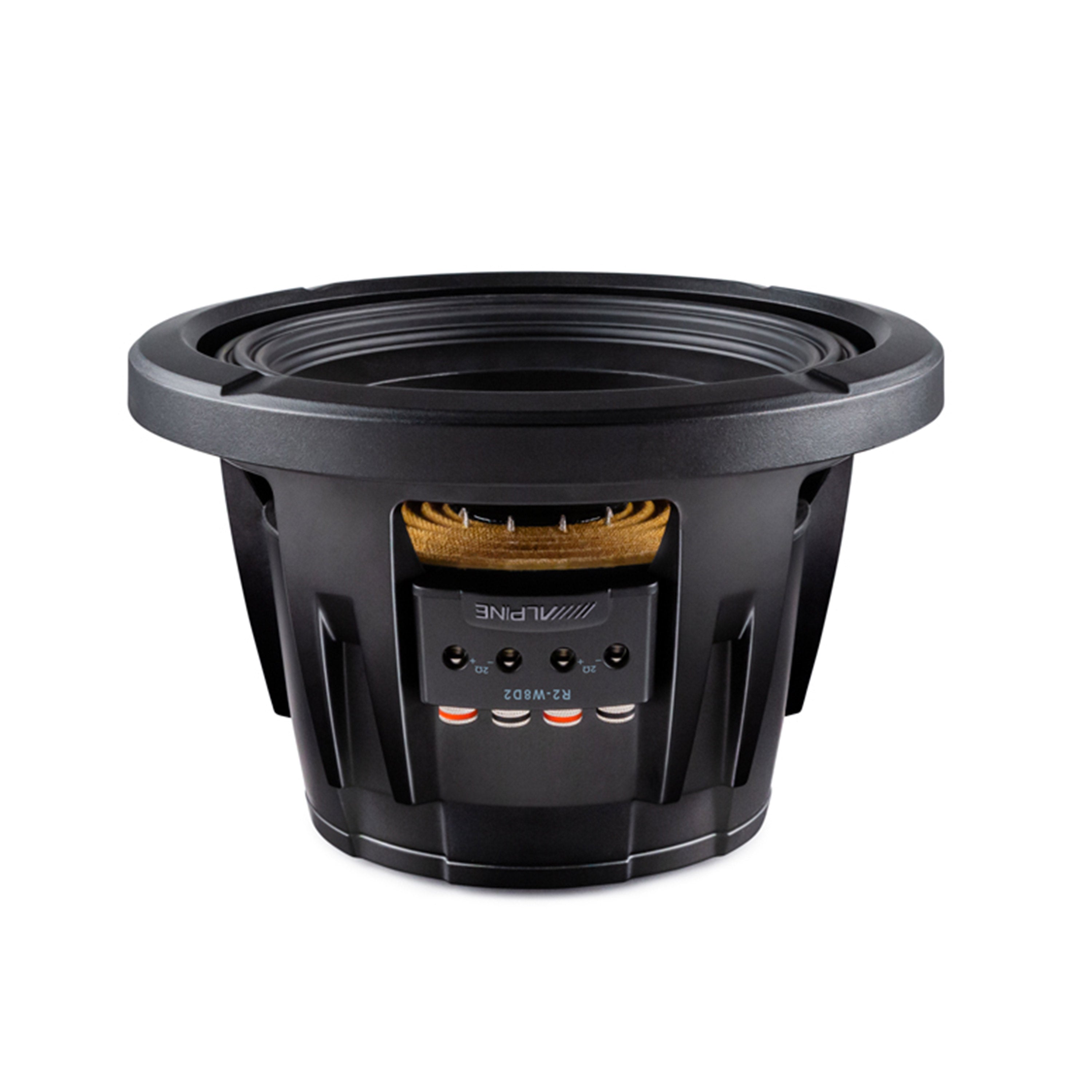

- Push-Type Speaker Terminals (Up to 8AWG Wire Size)
