Description

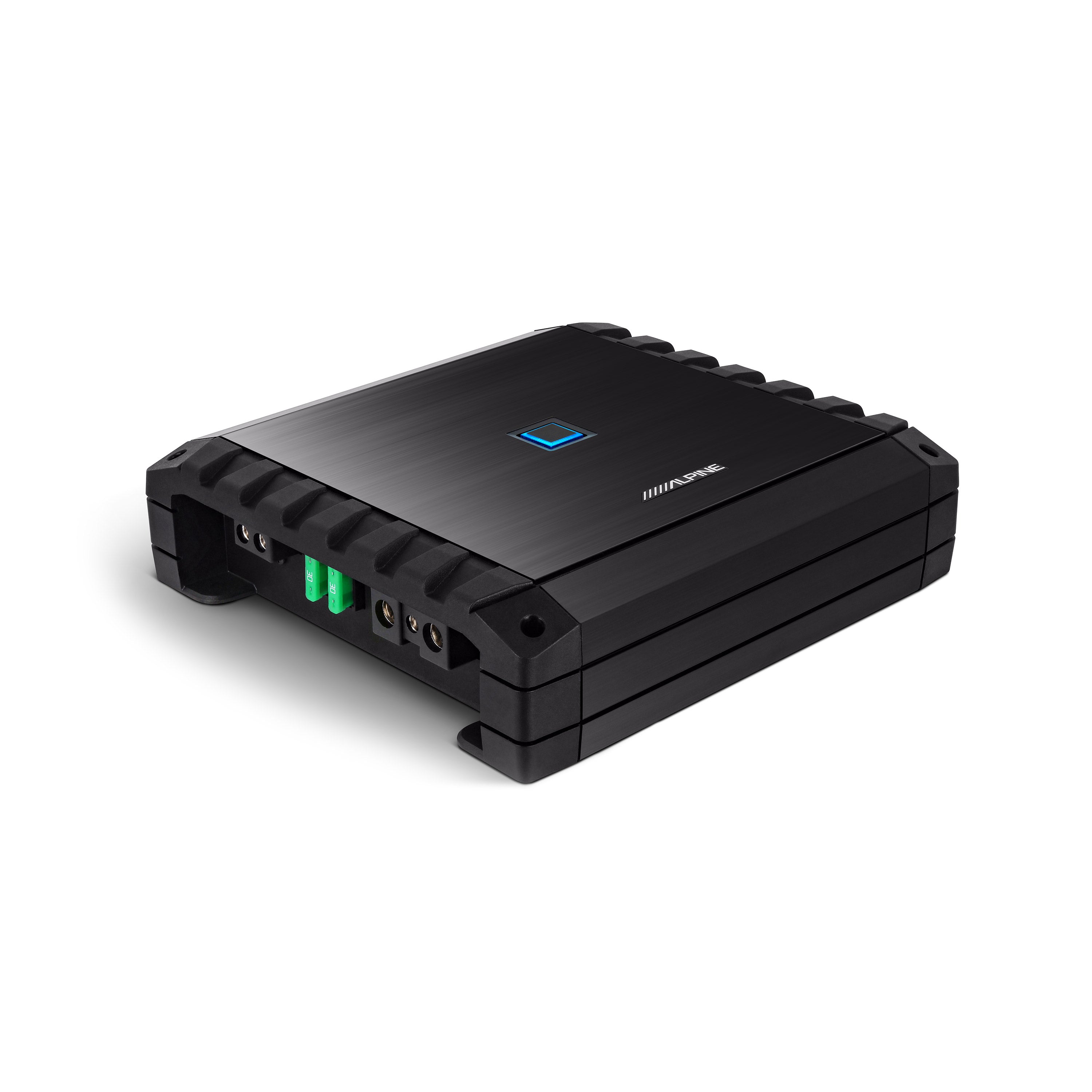

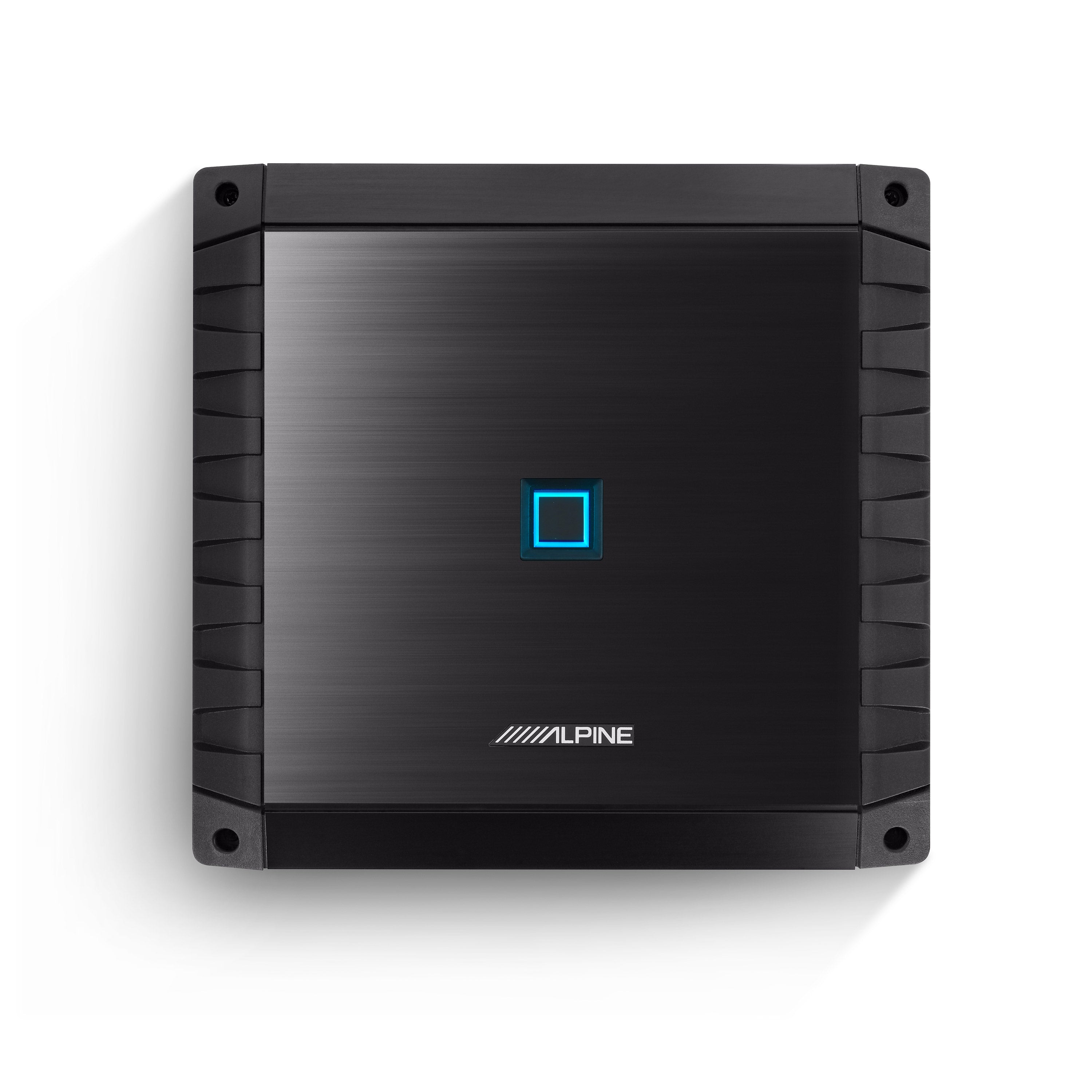

Entry-level sound just got elevated with the S2-A60M Mono Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit with 600W of powerful bass performance.
Alpine's S-Series S2-A60M 600W Mono Amplifier is the perfect solution for unparalleled power and performance on a budget. With a power output of 600W at a 1ohm or 2ohm drive, this mono amp is capable of driving even the most demanding subwoofers, delivering clean and distortion-free bass for a wide range of applications. Plus, its compact design makes it easy to install in any vehicle.
New to the Next-Generation S-Series amplifiers is a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

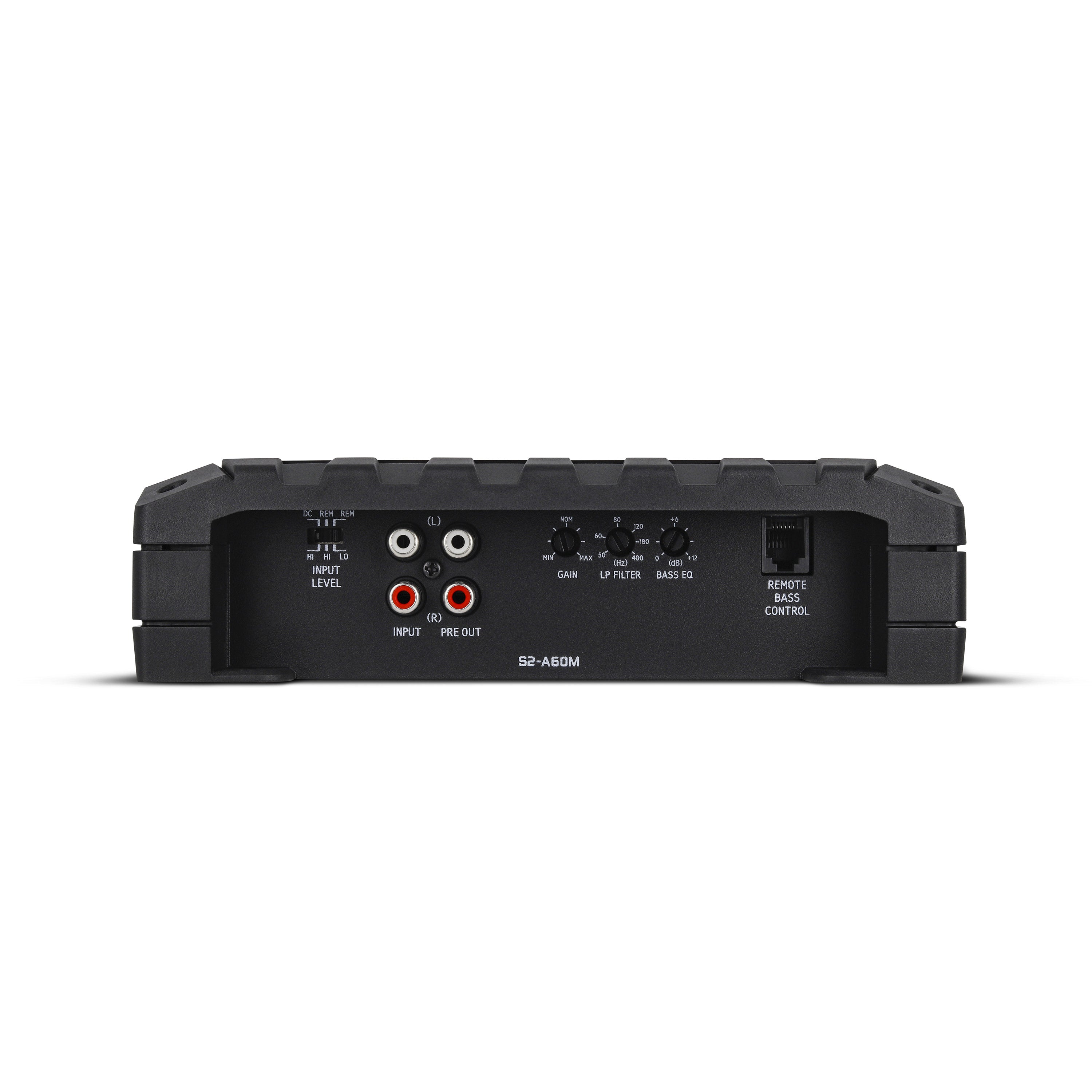

The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.
With the capacity to deliver 600 watts of power at 1 ohm, the S2-A60M is fully equipped to provide ample power to either a single Alpine S-Series 10" or 12" Subwoofer, or two S-Series 8" Subwoofers, ensuring exceptional sound quality and optimal performance.
- 600W Mono Power Amplifier
- Alpine’s Class D Amplifier Circuit

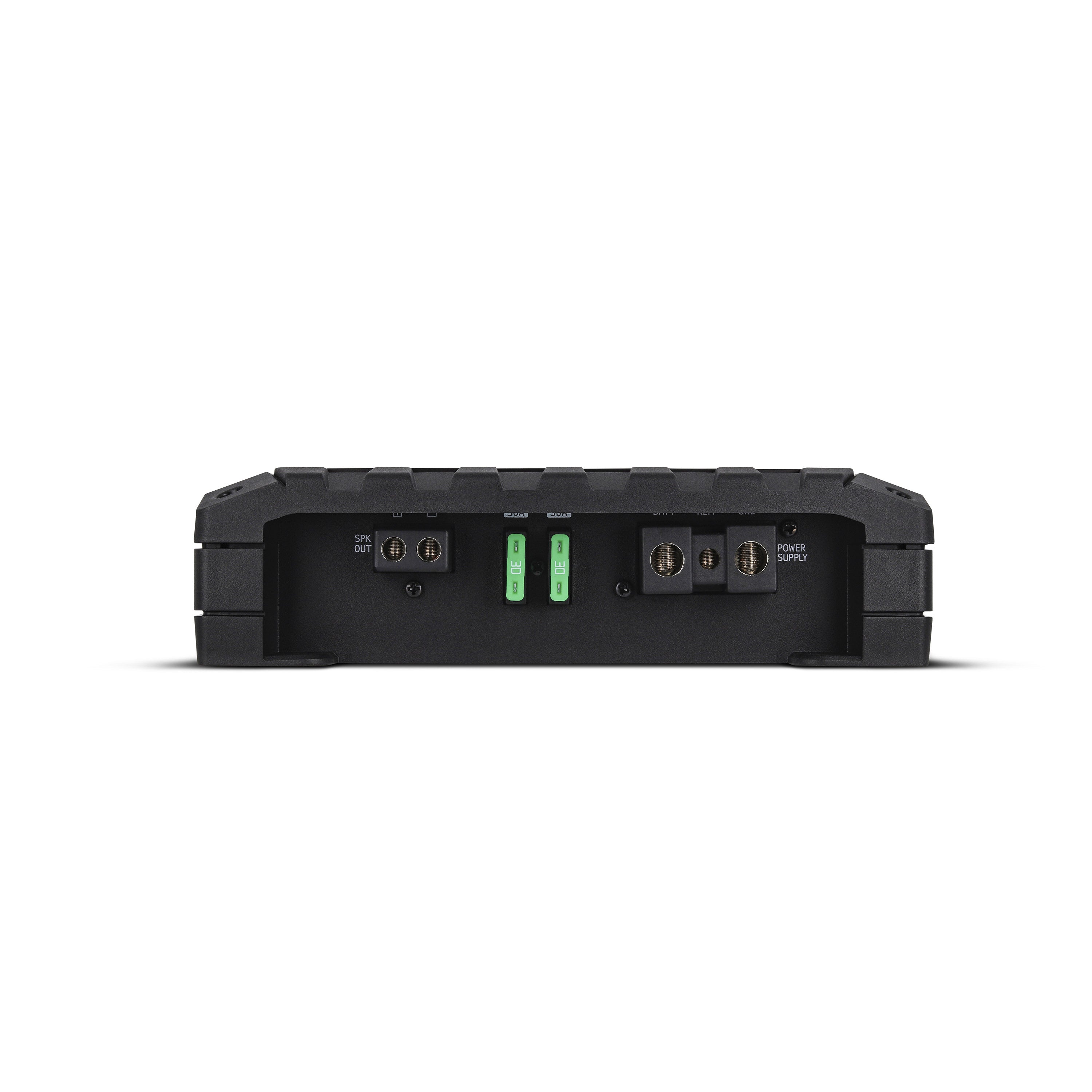

- Two-sided Terminal Layout
- Built-in Selectable / Adjustable Crossovers
- Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
- Dimensions: 8.7” W x 2.25” H x 8.25” D
- Weight: 4 lbs, 13 oz
- Power Rating: 14.4V, < 1.0% THD +N
- Power Output: 330W RMS x 1 @ 4Ω, 600W RMS x 1 @ 2Ω, 600W RMS x 1 @ 1Ω
- S/N Ratio: >85dB
- Frequency Response: 10Hz – 400Hz
- Damping Factor: >1000
- CTA-2006-D Certification
- (x2) Connection end covers w/4 attachment screws
- Owner’s Manual
- “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
- (x4) Self-tapping screws
- (x1) Hexagon wrench
- Alpine Registration Card
- Alpine Limited Warranty Sheet
- Tips sheet for power supply wire connections
