Description

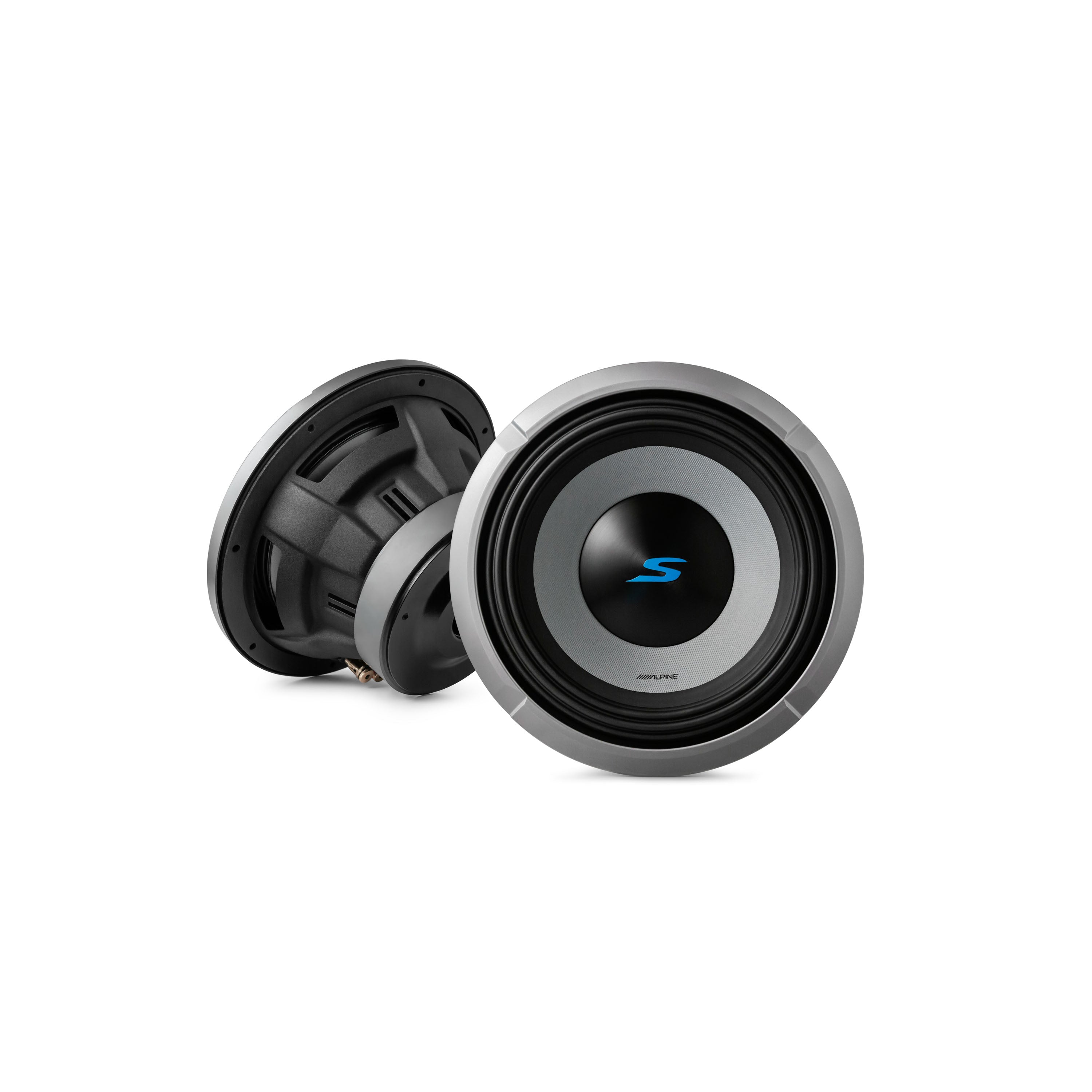

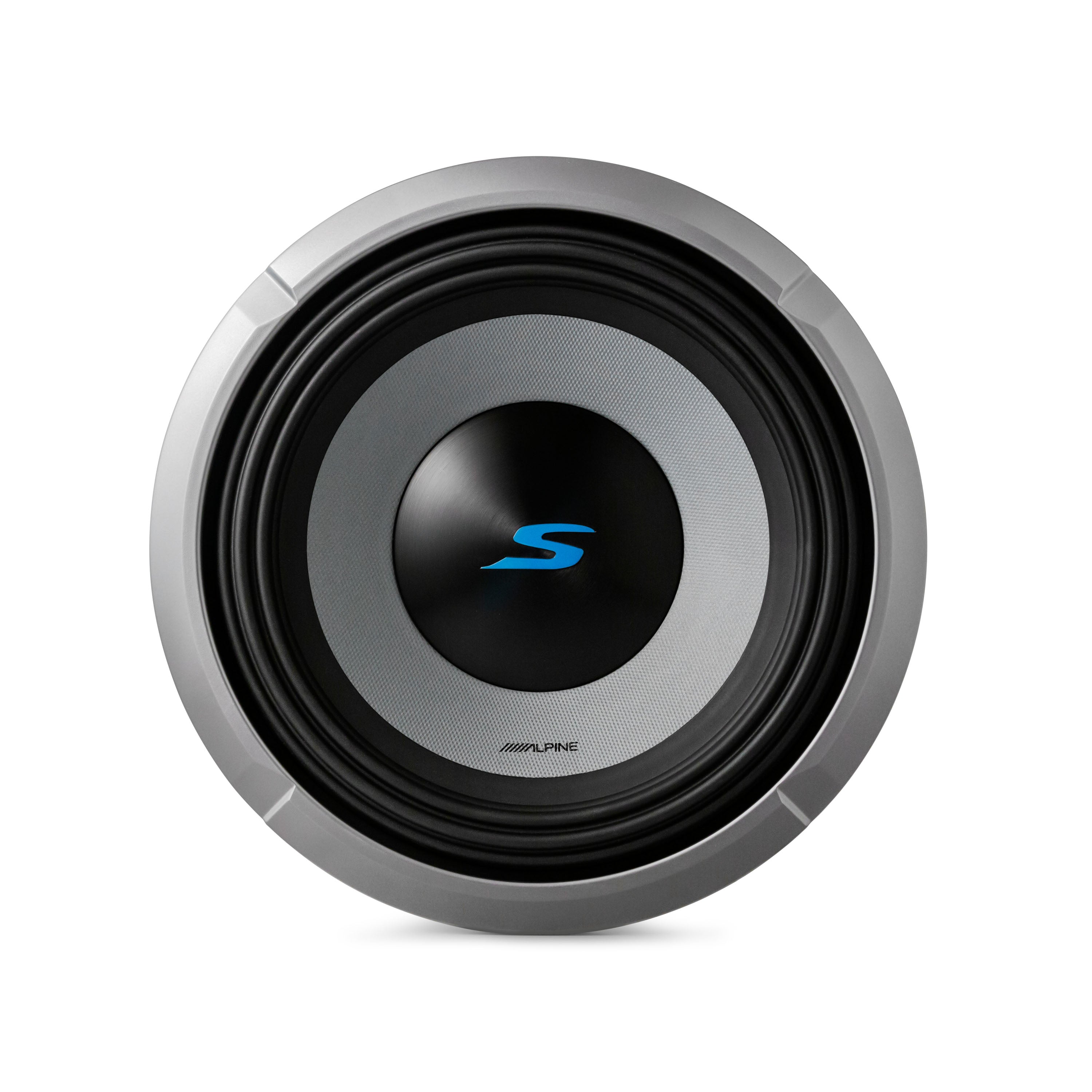

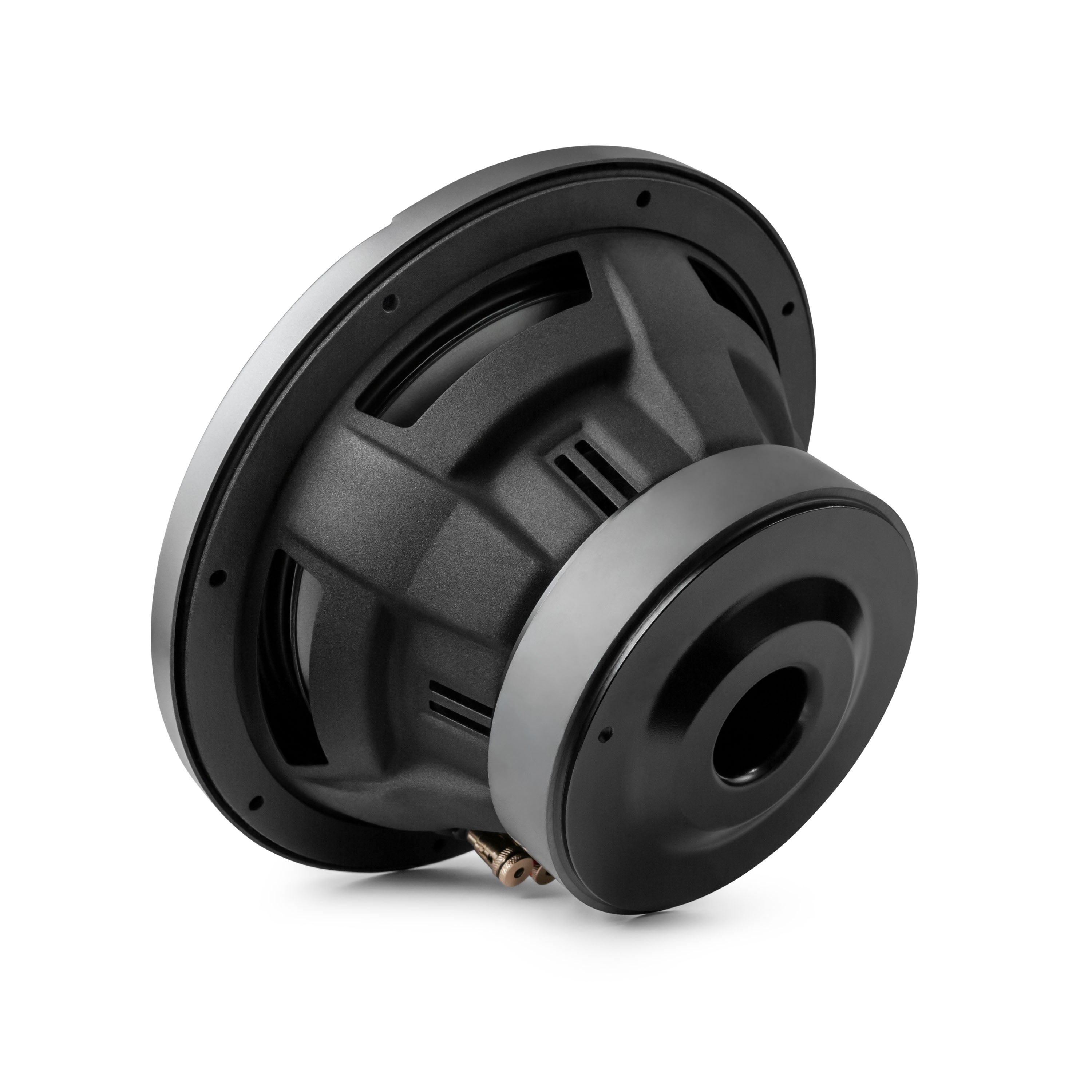

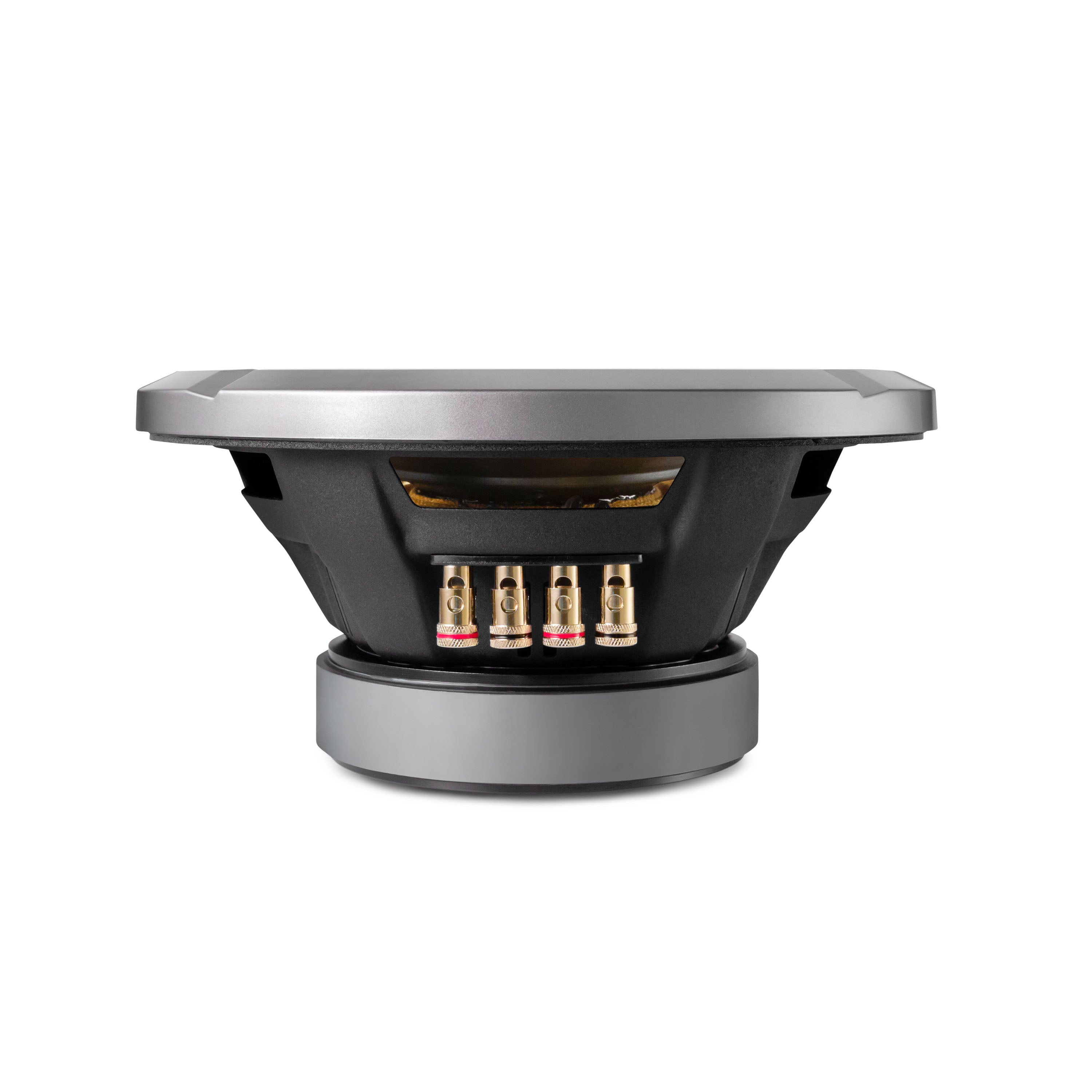

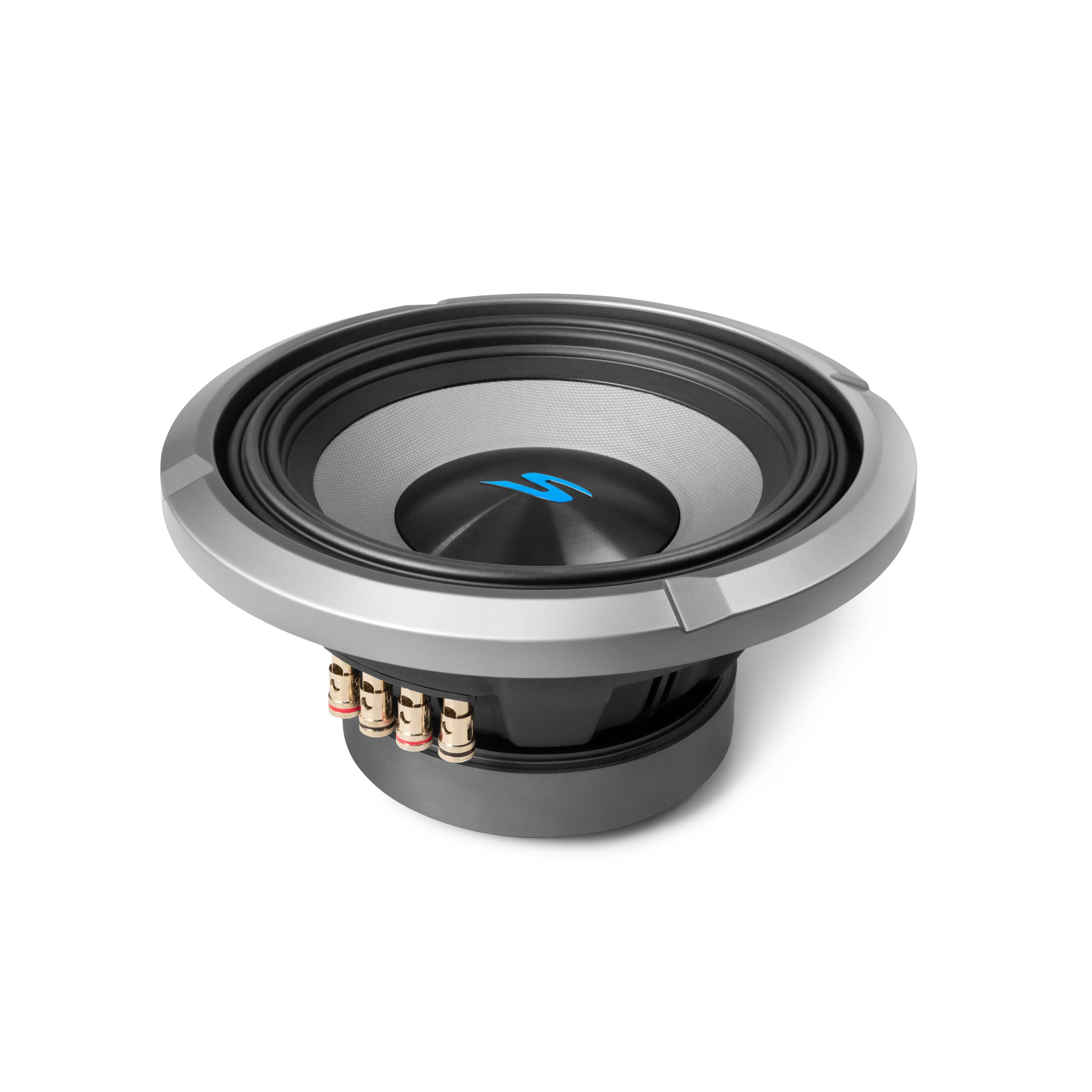

Add extra punch to your sound system with the Next-Generation Alpine S-Series Subwoofers; now redesigned for powerful and reliable bass performance at an approachable price point.
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 10” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 25Hz to 215Hz and a sensitivity of 85dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
The Next-Generation S-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (H.A.M.R.) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 15mm of one-way cone excursion and creates incredible accuracy from the subwoofer.
With 600W of RMS power, the S2-A60M Amplifier is power matched perfectly for a single S-Series 10” Subwoofer.
Delivering an impressive 1200W RMS of power at 1 and 2 ohm, the S2-A120M is the ideal solution to power up to two (2)Alpine S-Series 10” Subwoofers.
- Dual Voice Coil Subwoofers with Configuration Jumpers
- Carbon Fiber/Poly Propylene Cone
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Power Handling: 600W RMS / 1800W Peak
- Nominal Impedance: 4Ω
- Frequency Response: 25Hz - 215Hz
- Sensitivity: 84.9dB
- X-Max (1-Way): 15mm
- Voice Coil: 2.6”
- Magnet Weight: 64oz
