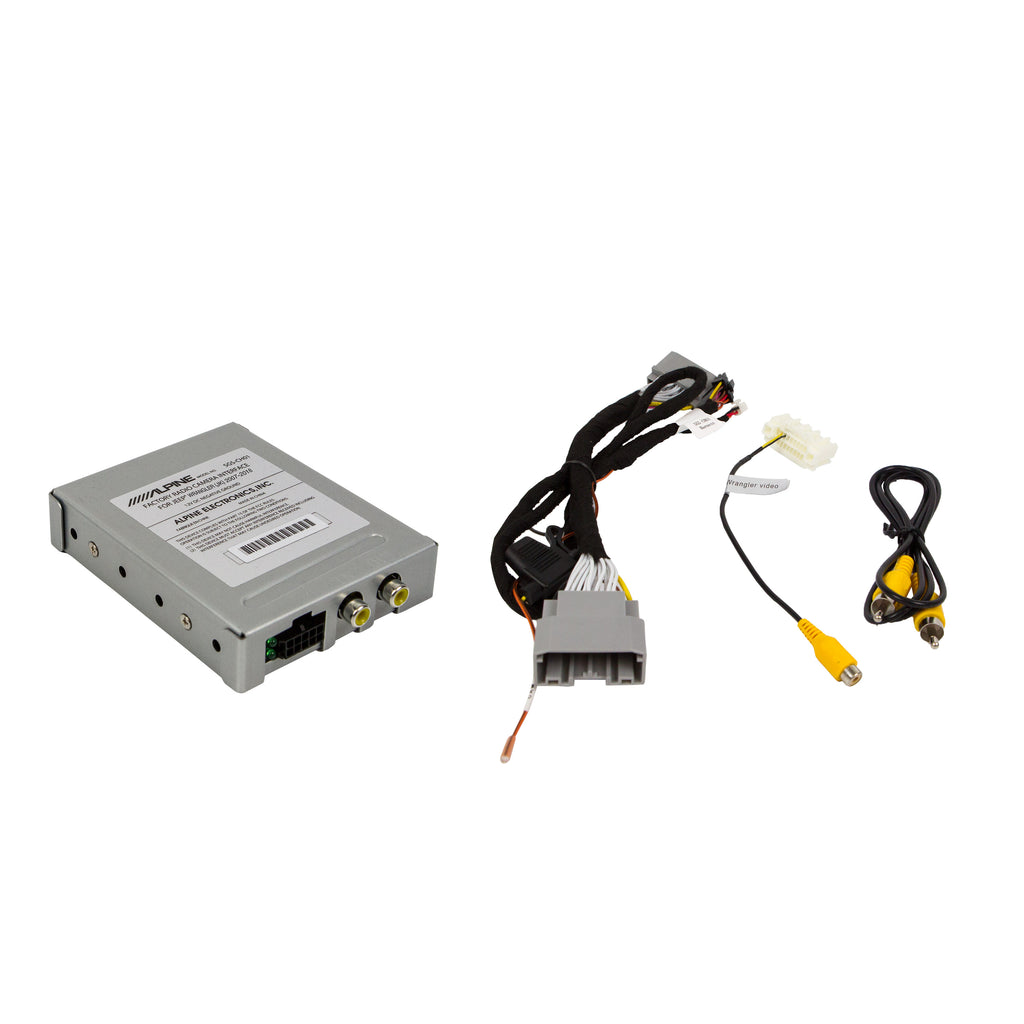

The SGS-CH01 is a Camera Interface with Active Guide Line Display for the 2007 - 2018 Jeep® Wrangler that includes an RCA camera input cable and factory camera input harness that connects the factory dash system to a rear-view camera.
The SGS-CH01 Camera Interface with Active Guideline Display allows you to add an aftermarket camera with active guidelines to your Jeep® Wrangler.
The SGS-CH01 includes an RCA camera input cable that works with Alpine's HCE-RCAM-WRA Spare Tire Rear-View Camera System (sold separately) and a factory camera-input harness that works with Alpine's HCE-TCAM1-WRA Spare Tire Rear-View Camera System and Third Brake Light (sold separately).
When you shift into reverse, Active Guide Lines are overlaid over your rear-view camera image and dynamically change as you back up so you get a real-time view of the action behind you.
Audible alerts can be heard through your speakers so you can maneuver into tight parking spots and avoid hidden objects.
The included 3-foot RCA camera input cable is the correct length to reach down to the passenger side kick panel where the dash system connection is made. The RCA camera input plugs into the included factory Jeep® Wrangler camera-input harness, which then plugs into the vehicle-specific input on the back of your Jeep® Wrangler's radio.
The camera image can then be viewed on your factory screen. If you use your Jeep® Wrangler for towing, an on-demand trigger wire is built-in so you can monitor the safety of a trailer while towing. A rocker-style switch (sold separately) can be added to activate the view from your rear camera.
While the SGS-CH01 is a perfect match for the HCE-RCAM-WRA Spare Tire Rear-View Camera System (sold separately) and HCE-TCAM1-WRA Spare Tire Rear-View Camera System and Third Brake Light (sold separately), it also works with any Alpine rear-view camera system that has a universal connection.
If you want to add a front camera for more viability, the SGS-CH01 is compatible with Alpine's KCX-C2600B Universal Camera Switcher (sold separately) that can add a front camera (sold separately) to your dash system. Additional programming will be required to activate the camera input with your Jeep® Wrangler factory dash system and can be done at your local Jeep® dealership.
- Displays camera input on compatible factory radio screens, 2007-2018 Jeep® Wrangler
- Overlay Active Guide lines on camera view fully optimized for HCE-TCAM1-WRA Spare Tire Rear-view camera for Jeep®Wrangler (sold separately)
- Overlay Guide Lines on camera view for 2007-2010 Jeep® Wrangler JK Calibration guide line setting with ON/OFF function
- Includes: 3-foot RCA video cable, Factory radio camera input harness for Jeep® Wrangler JK, and On-demand trigger wire for camera
- Works with the HCE-TCAM1-WRA Rear-View Camera System for Jeep Wrangler or HCE-C1100 Rear Universal Camera (sold separately)
- Works with KCX-C2600B Front & Rear Camera Selector (sold separately)
- Calibration guideline setting with ON/OFF function
- Provides ACC power (12V 3A) for other add-on accessories
- On-demand trigger wire for camera
- Works with Jeep®, Chrysler®, Dodge®models with MyGIG radio including: RER /REN / RHB / RBZ / RHR
