Description

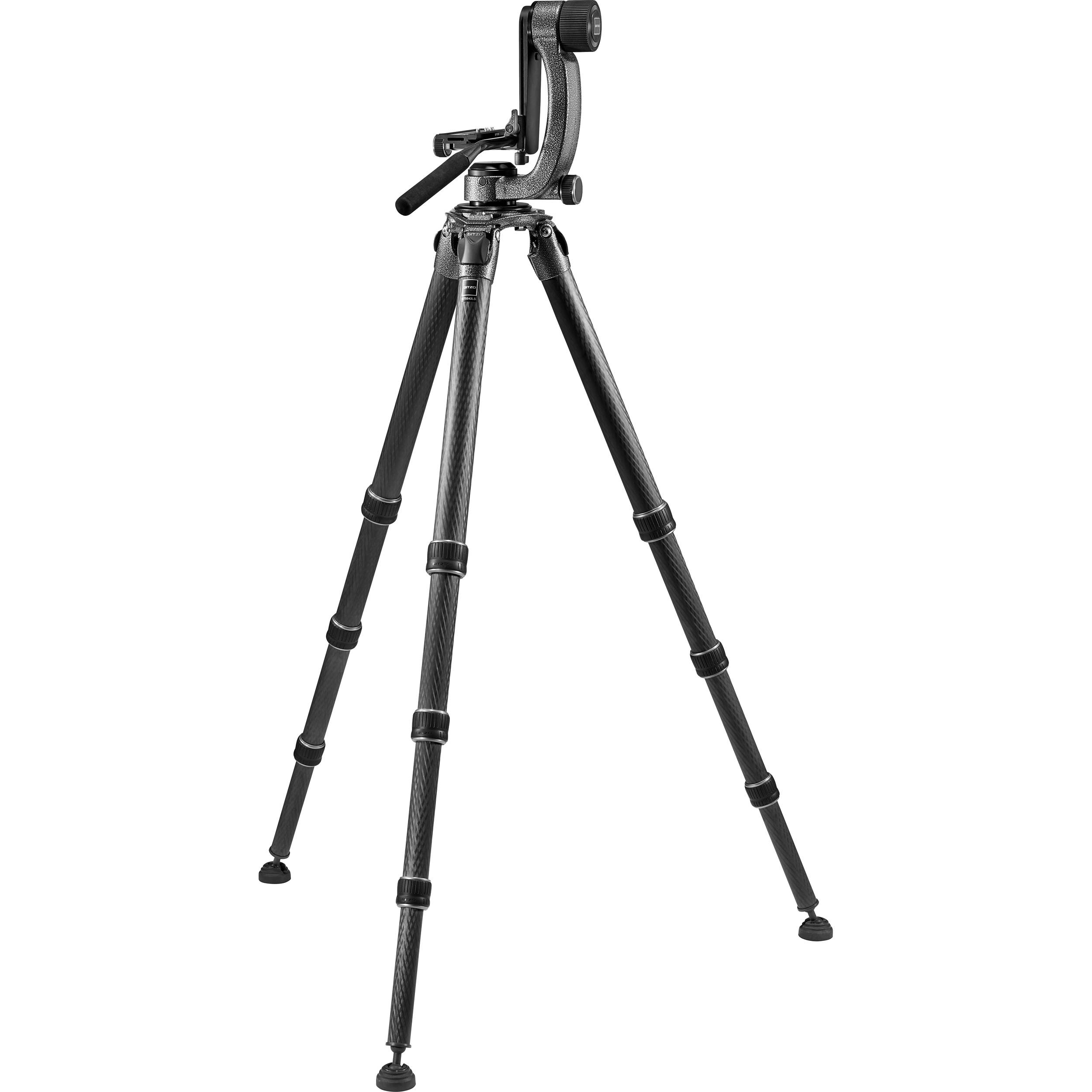

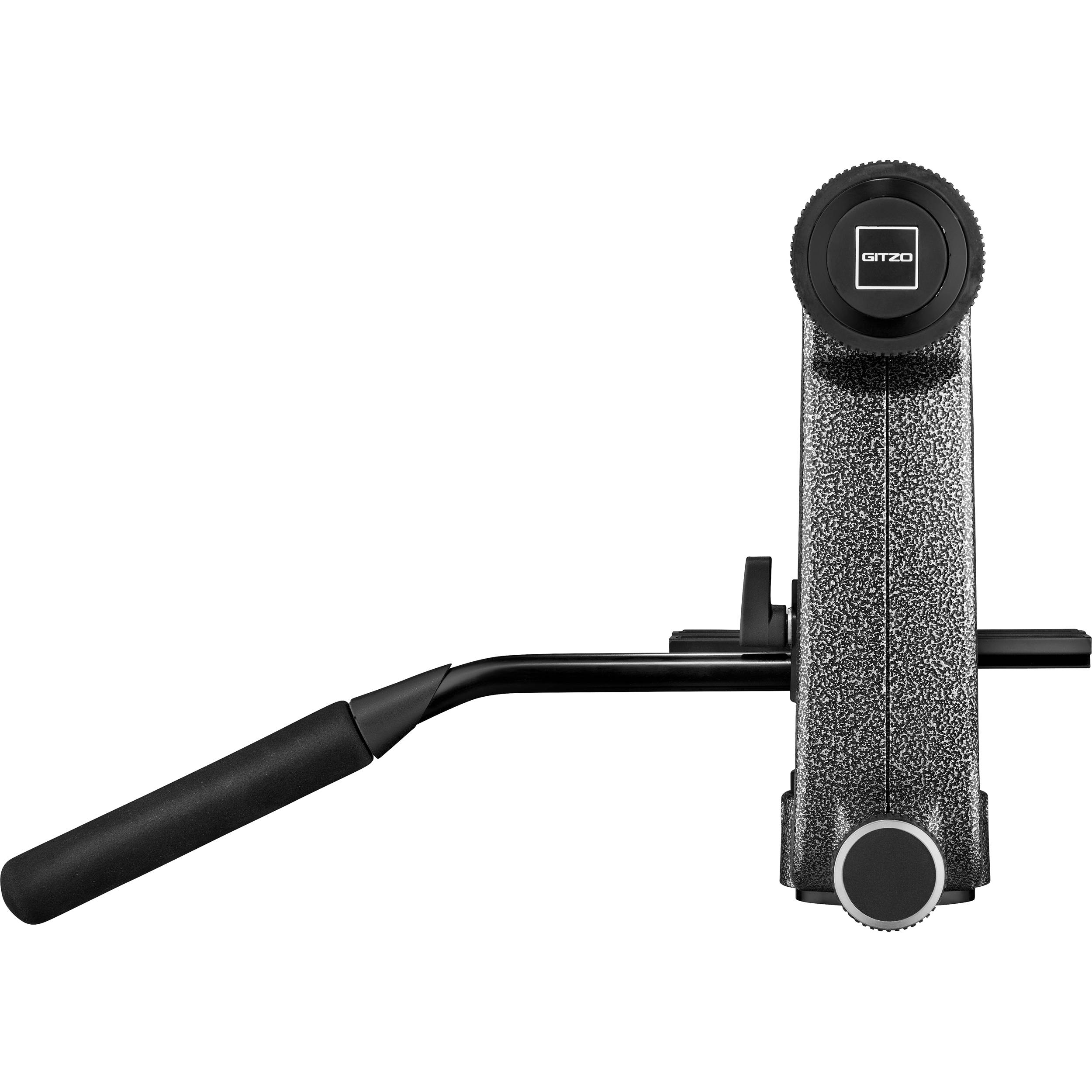

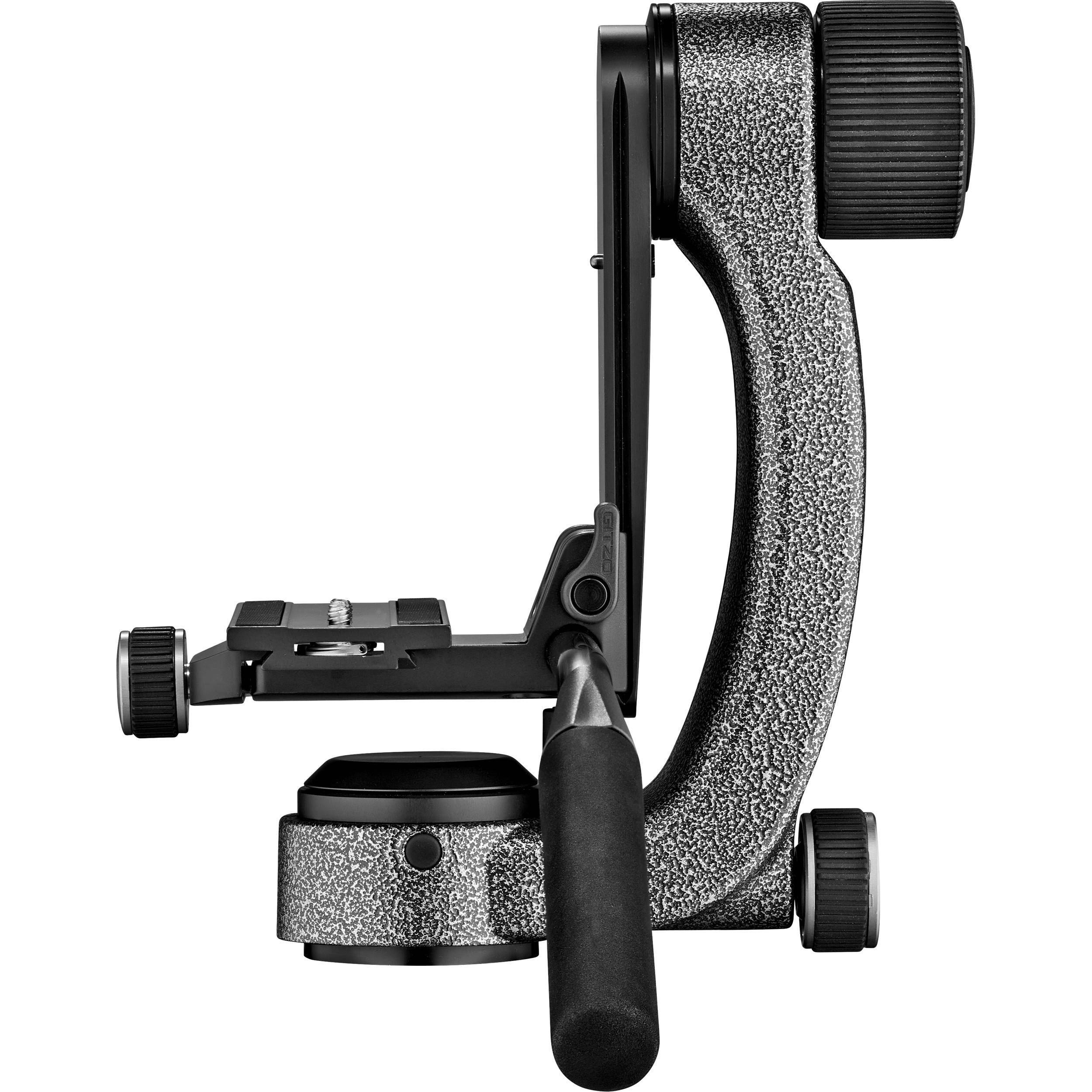

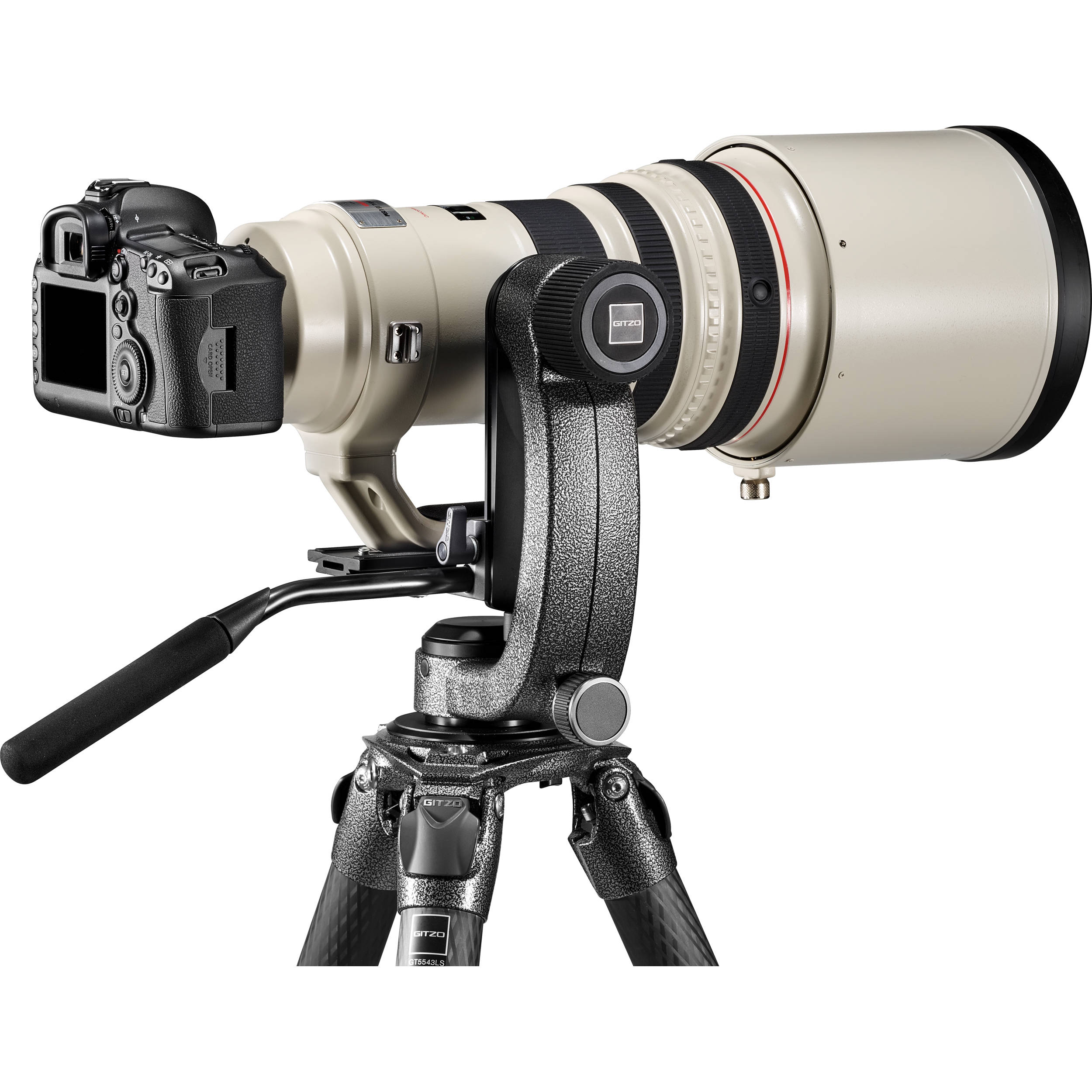

& Gitzo introduces its new Fluid Gimbal Head with pan bar. As the brand that always pushes the limits, Gitzo has created a head to make each movement conveniently smooth.
& FLUIDITY CONTROL SYSTEM
Perfect control for whip-pan shooting. The Fluid Gimbal Head maintains a smooth feeling at low rotation speeds, as normally requested on video heads so users can control movement when they are shooting (avoiding shock and vibration). At high rotation speeds (when users need to quickly reposition the camera), the whip-pan instantly excludes fluidity, allowing free movement.
DESIGN AND FUNCTIONALITY
Fluid rotation is automatically and instantly restored when the rotation speed decreases.
The new Fluid Gimbal Head mounts an Arca Swiss plate-quick, safe, and solid for heavy equipment.
With Gitzo’s noir décor finish and attention to detail, this the perfect blend of form and function.
|
& TECHNICAL SPECIFICATIONS |
|
|
Plate position |
Adjustable (from +0 to -12.1 cm/4.78 in from tilt axis) |
|
Balance |
Self-balancing (through adjustment of horizontal plate’s position on vertical plate) |
|
Self payload |
8 kg / 17.6 lb |
|
Pan angle |
360° |
|
Tilt drag |
Continuous |
|
Pan drag |
Continuous and self-disconnect table (whip-pan device) |
|
& Base |
Flat - Diameter 60 mm - 3/8” UNC thread |
|
Weight |
1.4 kg/ 3 lb (with pan-bar - without plate) |
|
Plate type |
Arca Swiss Long Plate - 1/4” UNC |
|
Material (main body) |
Magnesium HPDC - Noir Decor Painted |
|
Finishing |
Black & Grey anodized |
