Description
- Smooth PAN and TILT Movements with variable Fluid Drag System
- Stable and Adjustable Setup with 4-section CF tripod and levelling column
- Effortless and Solid Setups using Quick Power Lock System
- Enhanced Flexibility with Easy Link attachments for accessories
- Highest safety standards ensured by UNI/PdR 105:2021compliance

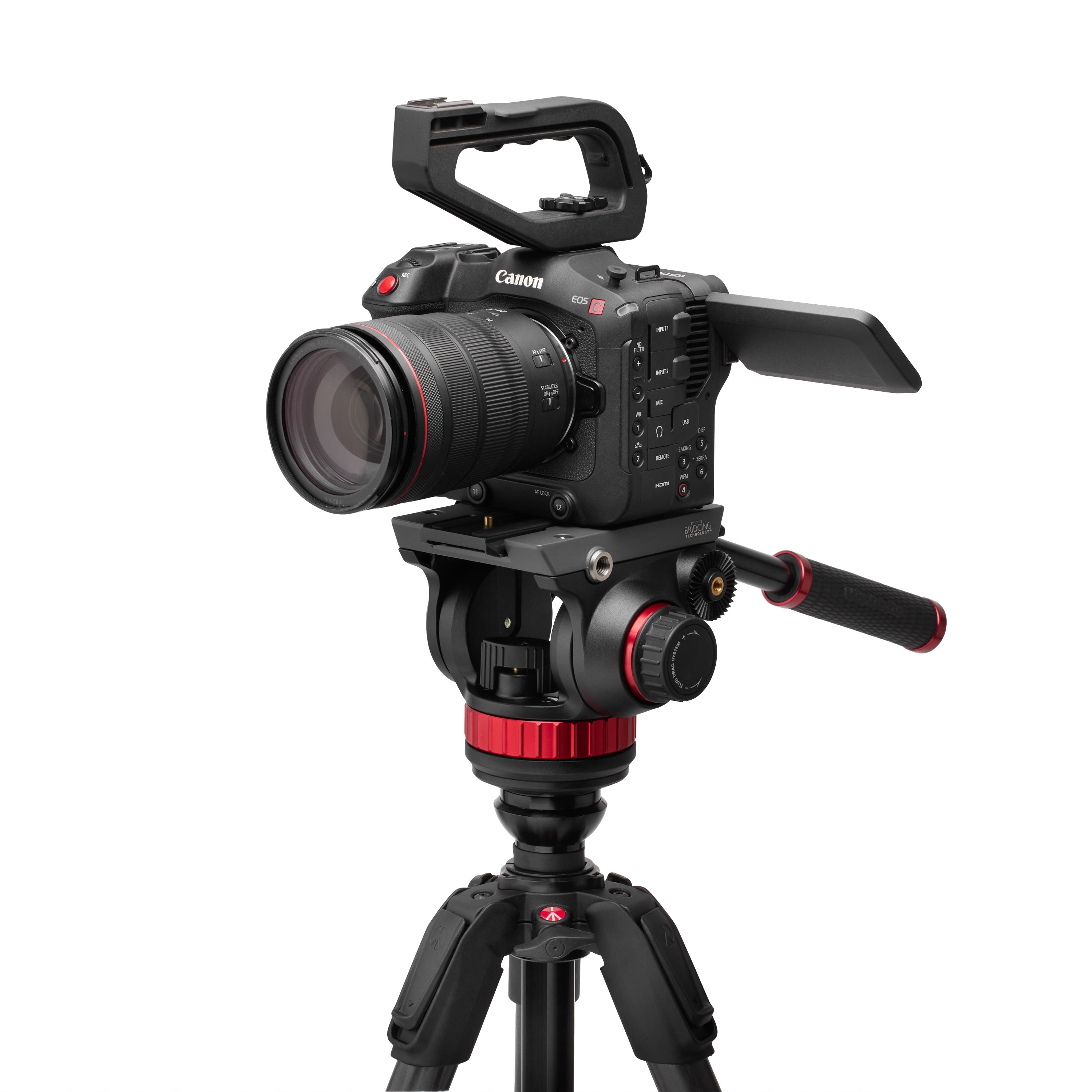

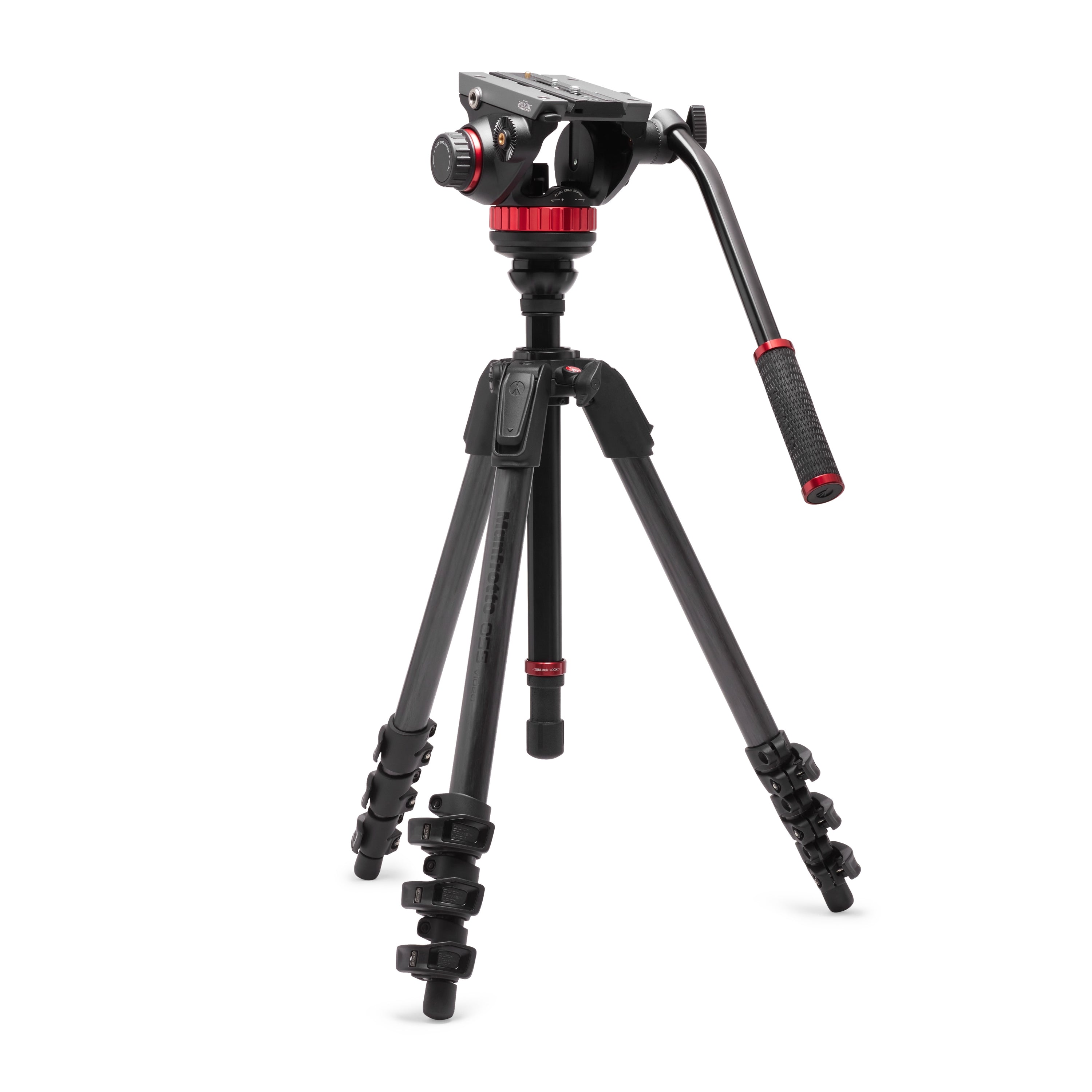

The MVK502055CXPROV is a comprehensive video system that includes the MVH502AH fluid video head and a dedicated 055 Video carbon fibre tripod.

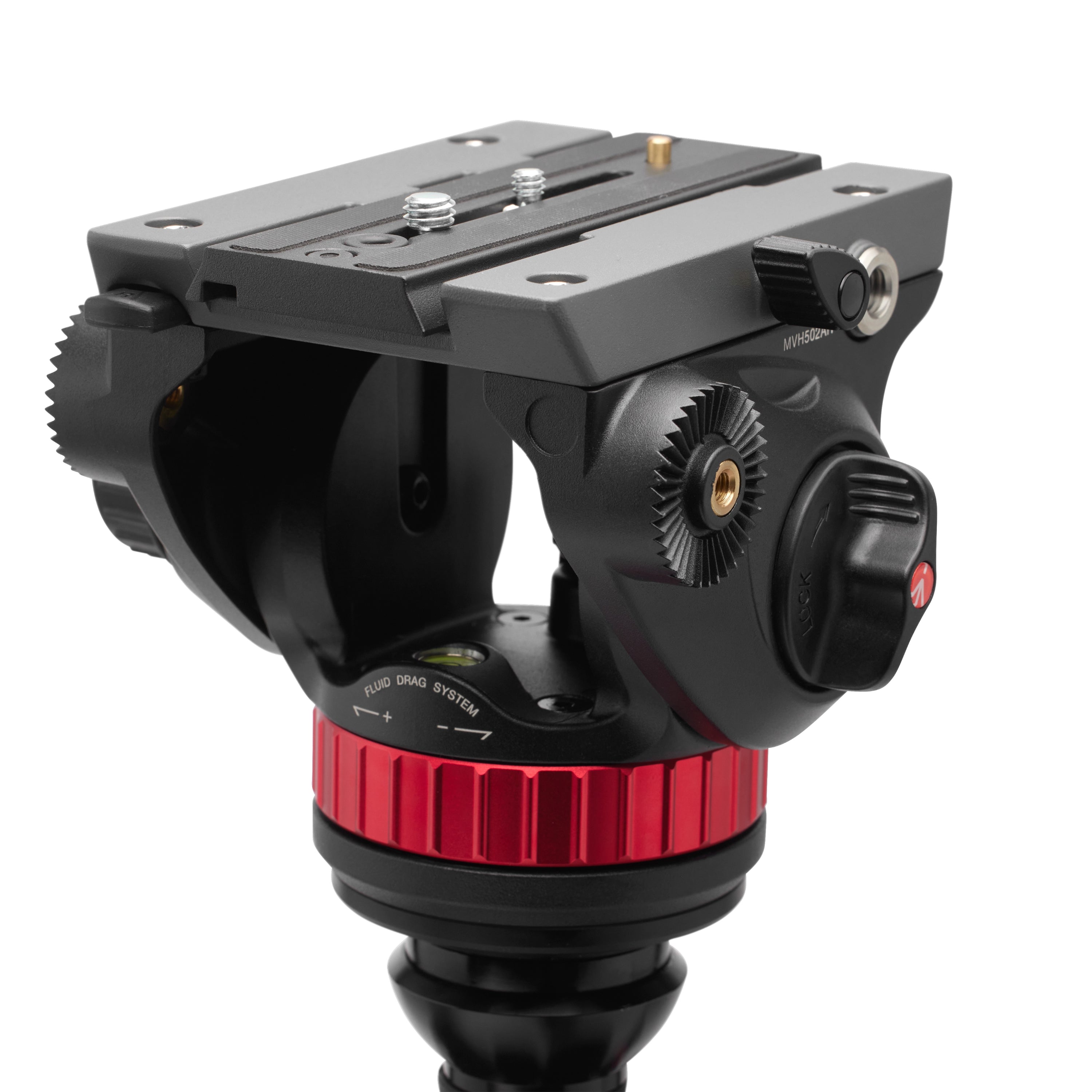

The 502 fluid video head with flat base (Ø 75 mm) is versatile and ideal for use with other video accessories such as a slider. Benefit from a fixed counterweight system of 4 kg at 55 mm center of gravity while supporting up to 10 kg of equipment. Experience smooth movements with the variable continuous Fluid Drag System during pan and tilt movements and conveniently attach external monitors or accessories with the 3/8'' Easy Link attachment points.

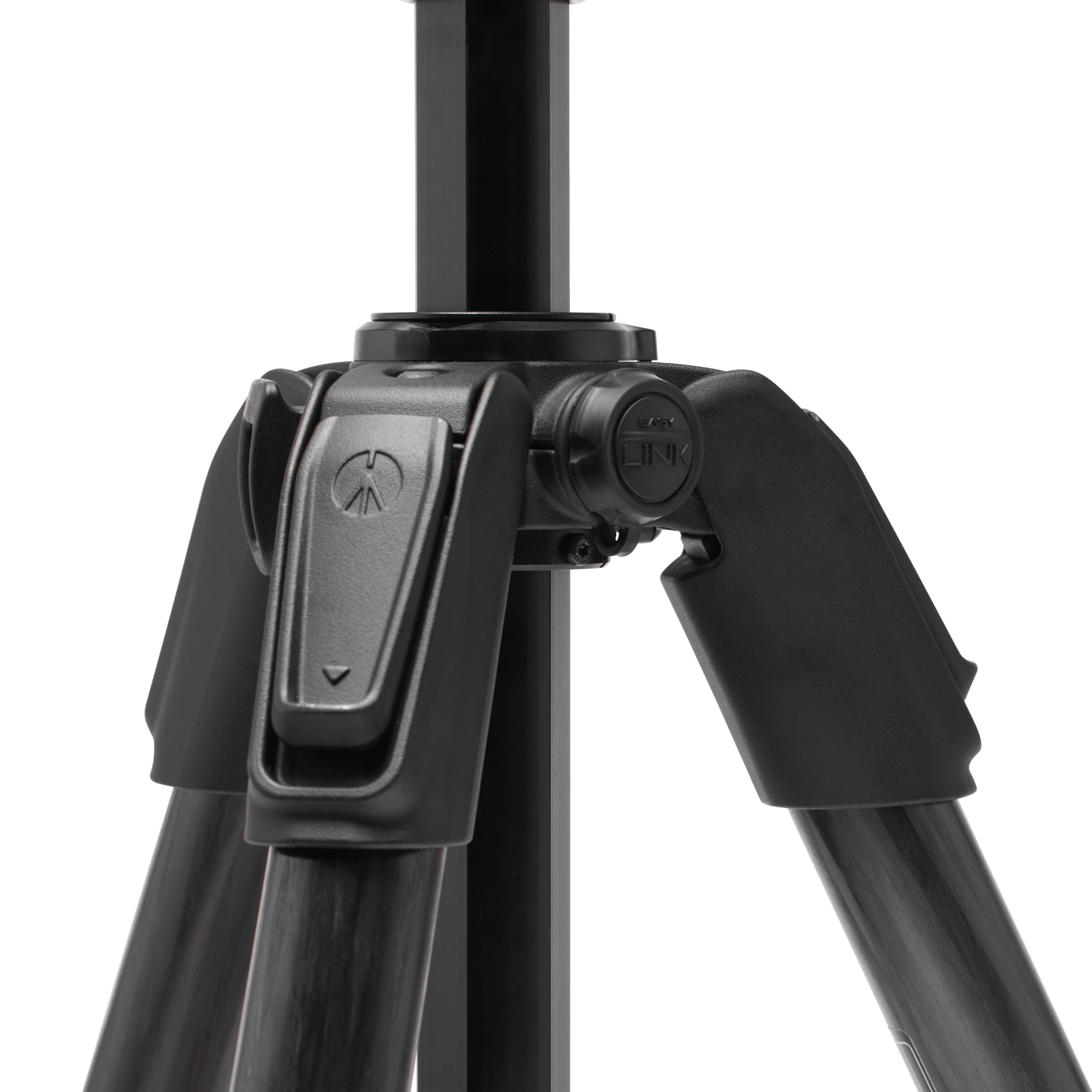

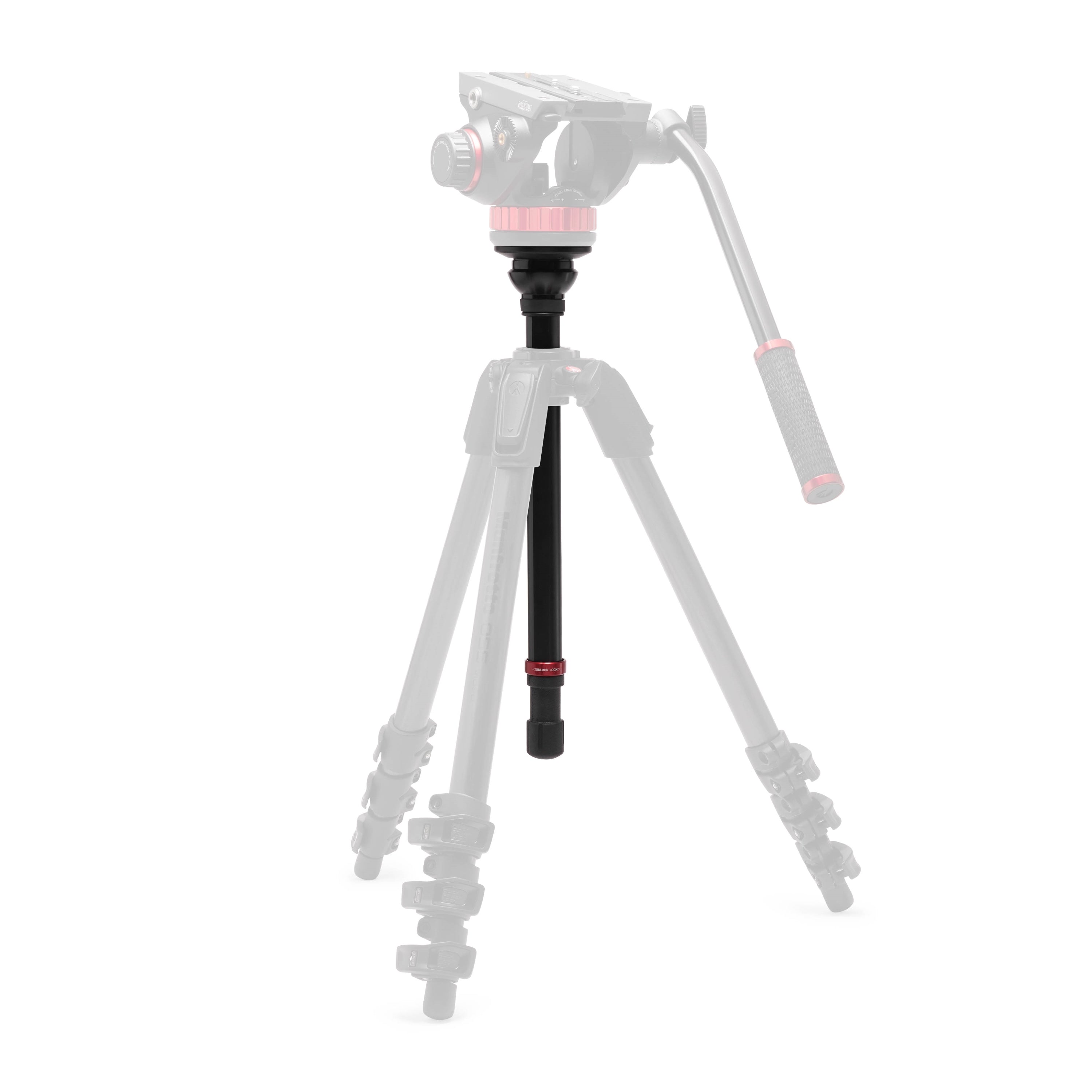

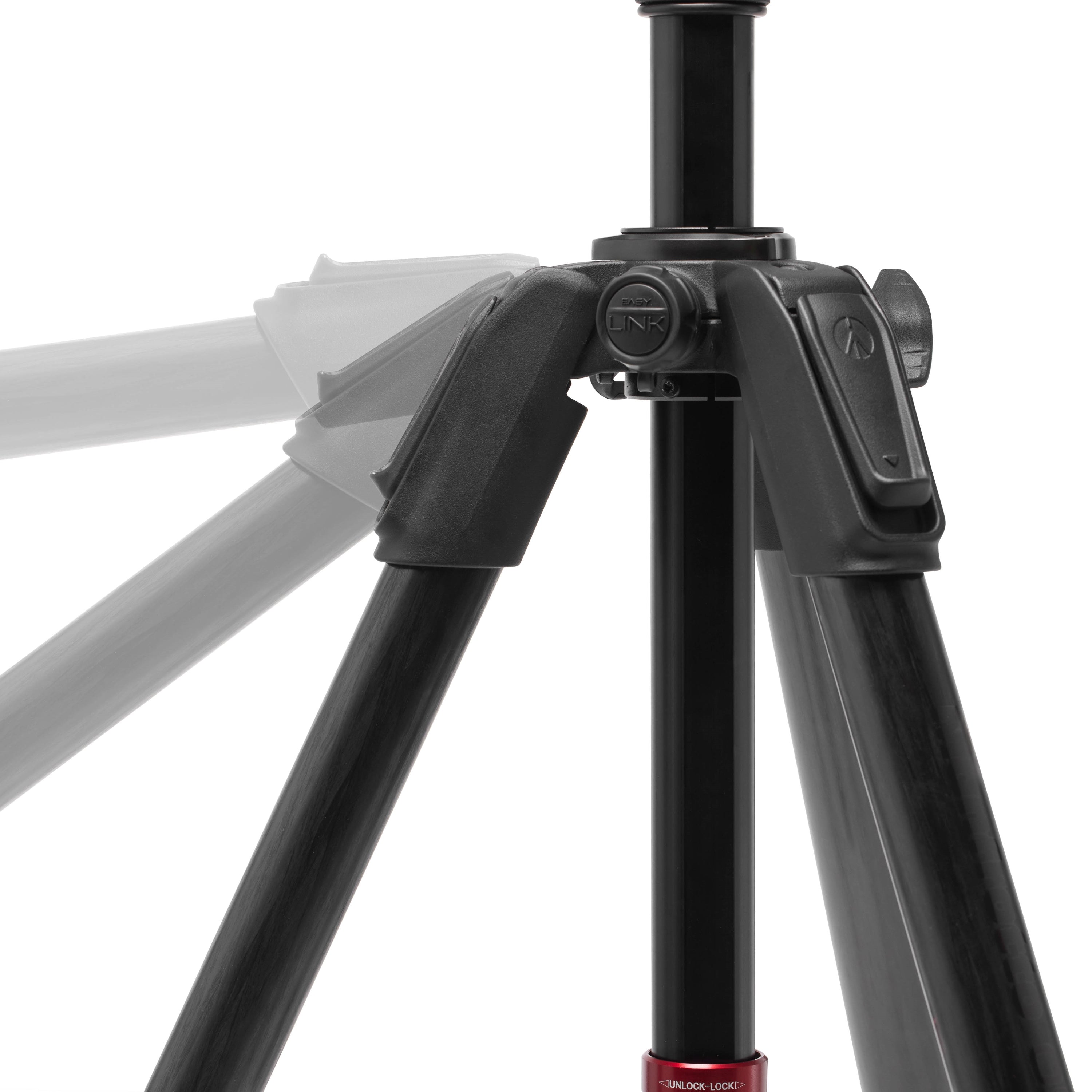

Benefit from the lightweight and stability of the dedicated single leg, 4-section carbon fibre 055 video tripod with levelling column, designed to minimize weight while maintaining top-tier stability and rigidity. Experience quick and easy setup thanks to the Quick Power Lock (QPL) levers specially designed for comfortable, single-handed operation, allowing you to open all leg sections in a single movement. Additionally, ensure maximum rigidity and stability for your tripod with the powerful locks on each leg section. Solidly set each leg independently with intuitive and ergonomic leg angle selectors. Enhance your setup with an Easy Link connector equipped with anti-rotation for accessories.
The system can support up to 10 kg.
| Weight | 4.2 kg |
| Counterbalance System | Fixed |
| Counterweight | 4 kg |
| Maximum Height | 179 cm |
| Min Altitude | 54 cm |
| Base Diameter | 78 mm |
| Spirit Level | 1 |
| Carrying Bag Included | No |
| Center Column | Rapid |
| Height | 70 cm |
| Color | Black Matt |
| Upper Attachment | ¼" screw, 3/8” screw |
| Base | Flat |
| Safety Load | 10 kg |
| Easy Link | Yes |
| Front Inclination | -80° / +90° |
| Tripod Head | Video Fluid Head |
| Tripod Legs | Individually |
| Leg Angle | 25°, 46°, 66°, 88° |
| Closure | Flip Lock |
| Excerpts | 4 |
| Pipe Diameter | 29.2, 24.8, 20.4, 16 mm |
| Material | Aluminum, carbon, plastic |
| Maximum Height (Center Column Bottom) | 157 cm |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Pan Bar Included | Yes |
| Swivel Escapement | Adjustable from 0 to maximum |
| Panorama Rotation | 360° |
| Plate | 504PLONG |
| Quick Change | Yes |
| Incline Resistance | Adjustable from 0 to maximum |
| Upper Disc Diameter | 78 mm |
| Accessory Compatibility | MVAPANBARM; MVAPANBARL; 502HLV; 509HLV |
