Description
- Smooth PAN and TILT Movements with variable Fluid Drag System
- Stable and Adjustable Setup with 3-section aluminum tripod and levelling column

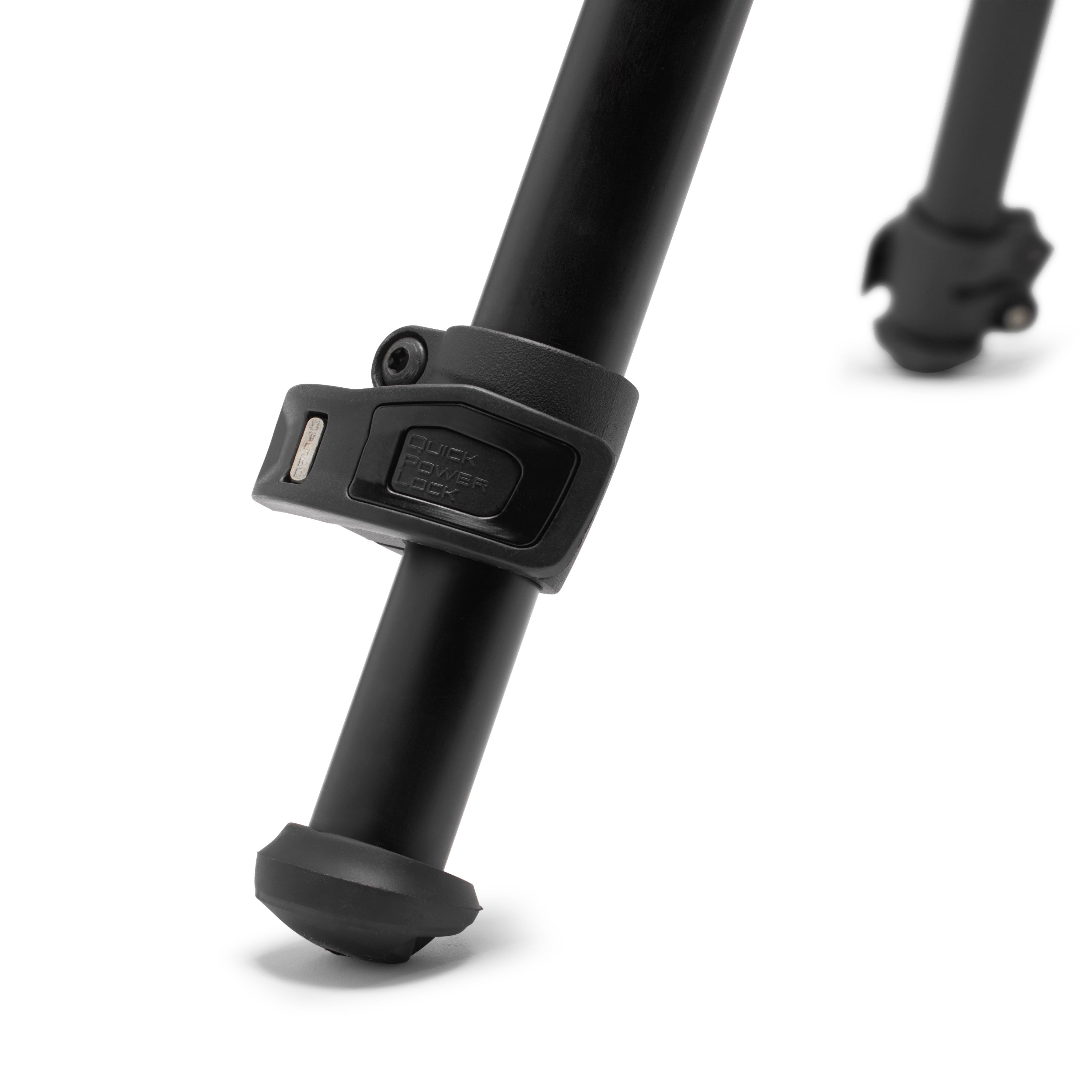

- Effortless and Solid Setups using Quick Power Lock System
- Enhanced Flexibility with Easy Link attachments for accessories
Highest safety standards ensured by UNI/PdR 105:2021 compliance

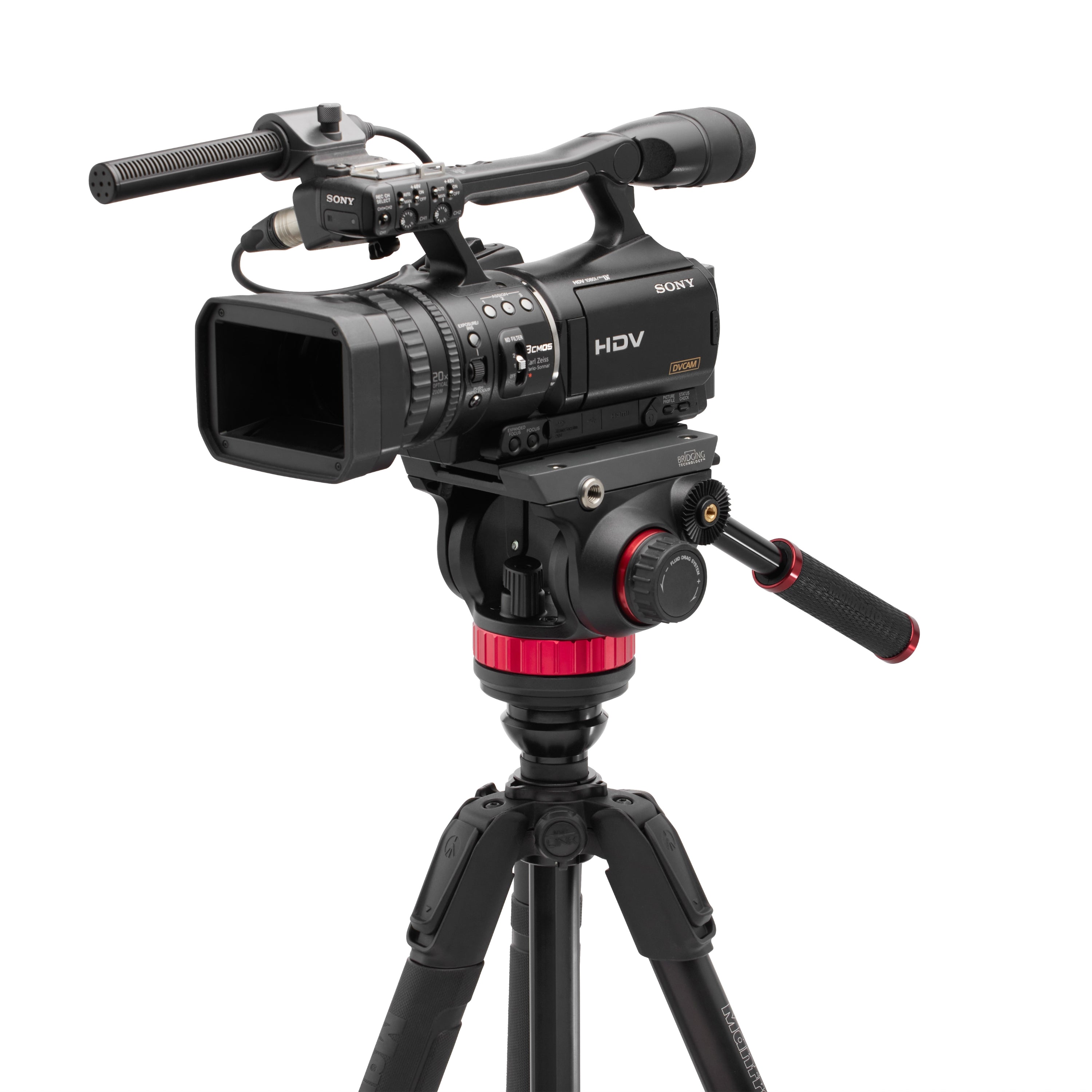

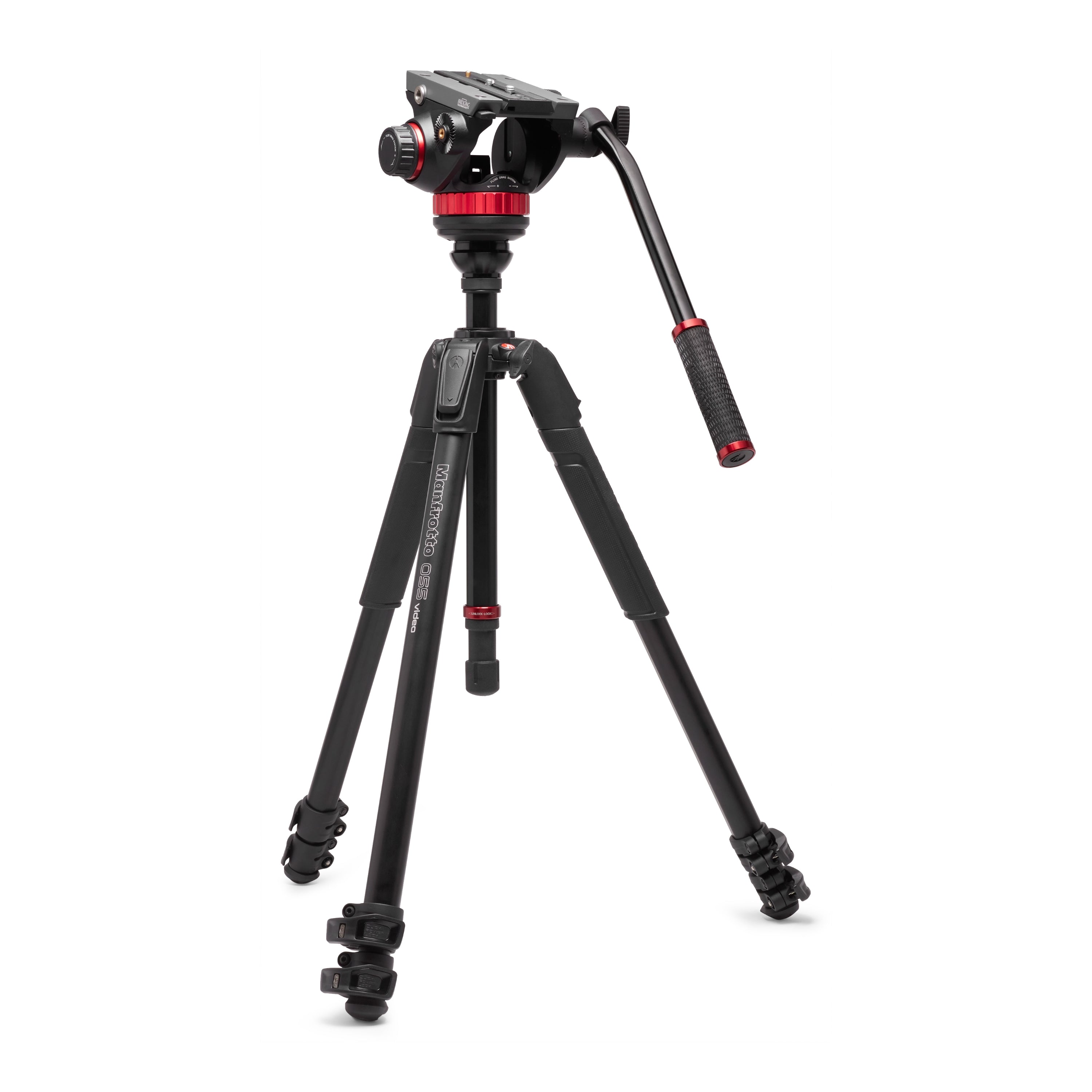

The MVK502055XPRO3V is a comprehensive video system that includes the MVH502AH fluid video head and a dedicated 055 Video aluminum tripod.
Enjoy greater versatility with the 502 fluid video head's flat base (Ø75mm), ideal for use with other video accessories like a slider. Benefit from a fixed counterbalance system of 4 kg at 55mm C.O.G., while supporting up to 10 kg of equipment. Experience smooth movements with the variable continuous Fluid Drag System on both pan and tilt movements, and conveniently fit external monitors or accessories with the 3/8'' Easy Link attachment points.

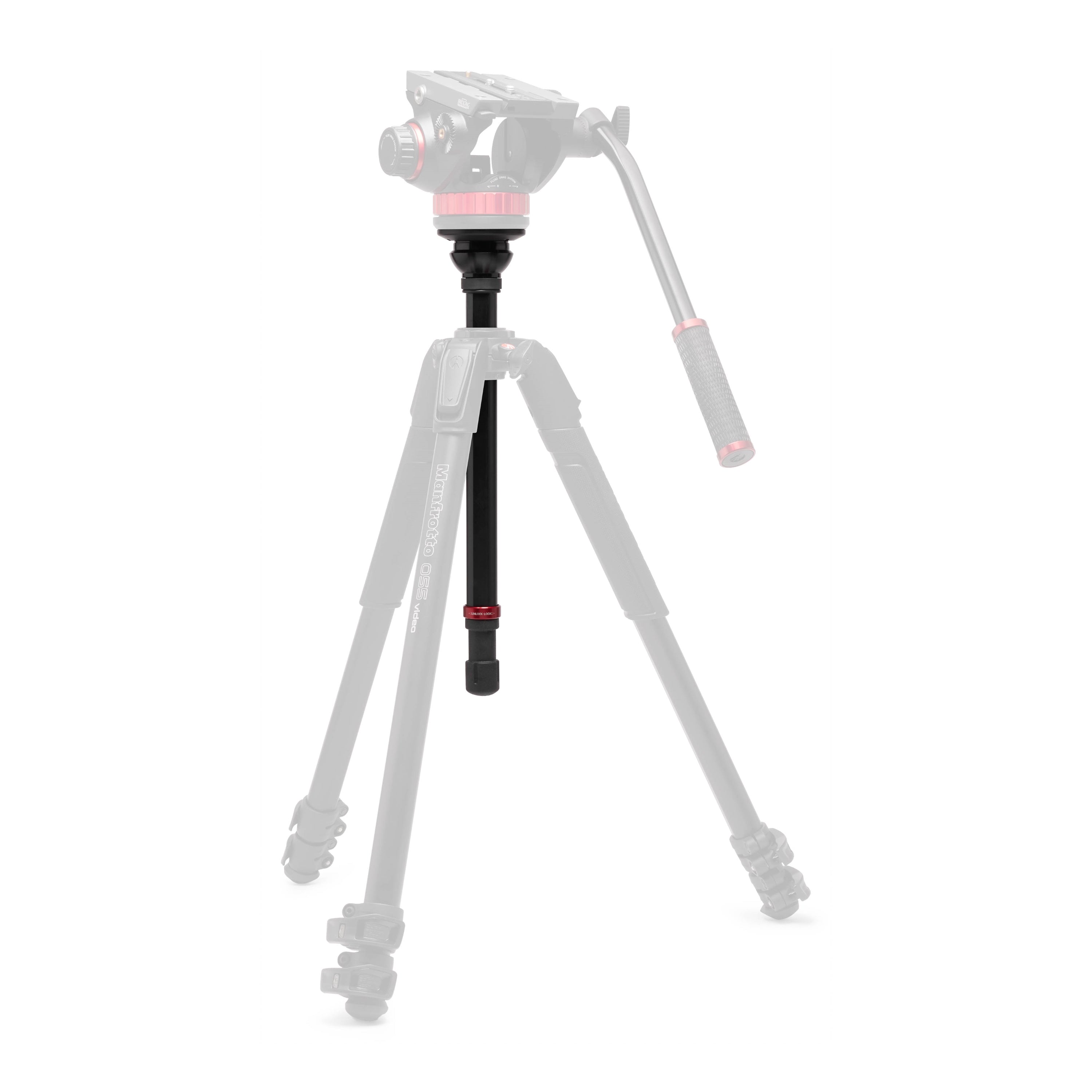

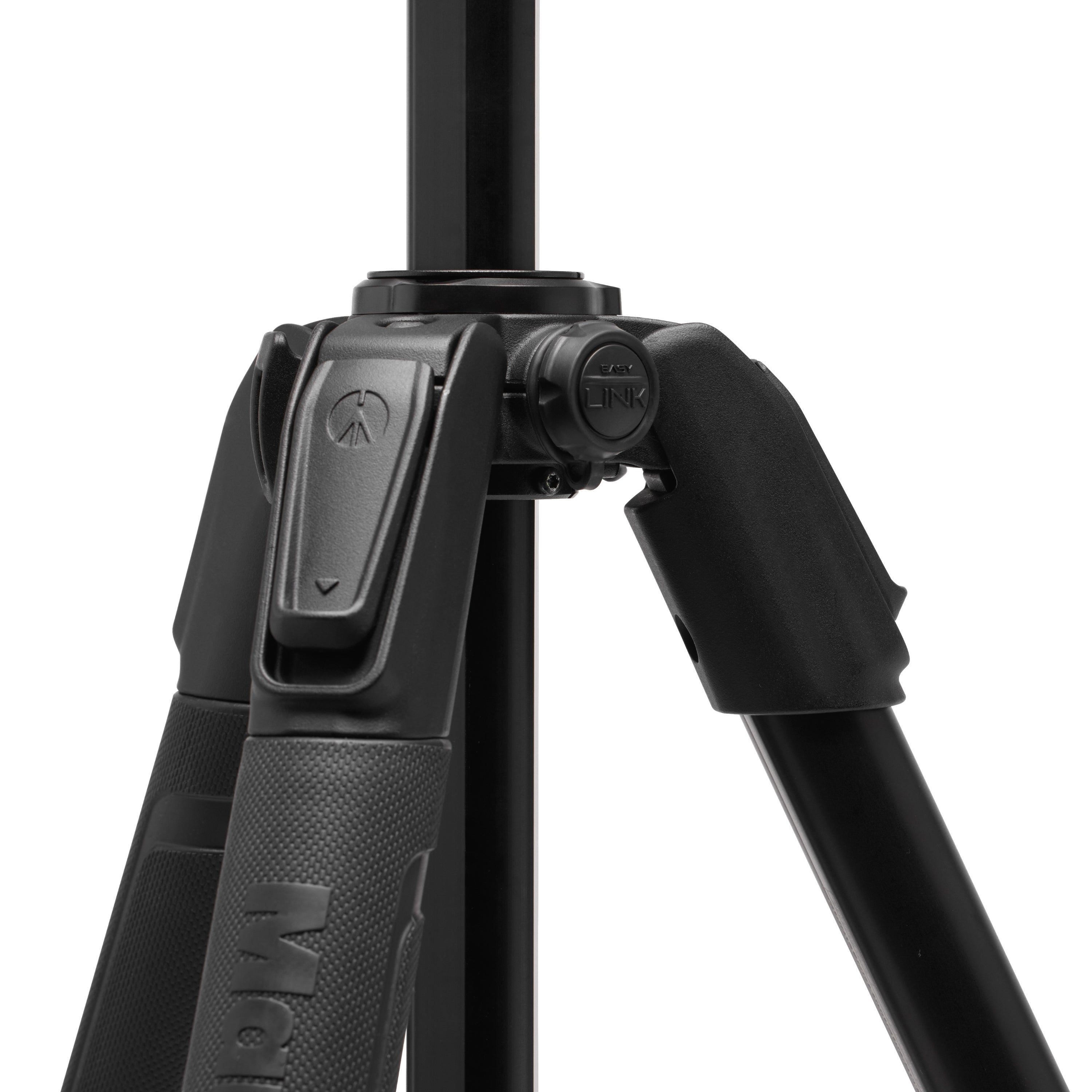

Set up quickly and easily with the dedicated single leg, 3-section aluminum 055 video tripod with levelling column and Quick Power Lock (QPL) levers which are specially designed for comfortable, single-handed operation, allowing you to open all leg sections in a single movement. Additionally, ensure maximum rigidity and stability for your tripod with the powerful locks on each leg section. Solidly set each leg independently with intuitive and ergonomic leg angle selectors. Enhance your setup with an Easy Link connector equipped with anti-rotation for accessories.
The system can support up to 10 kg.
| Weight | 4.5 kg |
| Counterbalance System | Fixed |
| Counterbalance Weight | 4 kg |
| Maximum Height | 179 cm |
| Min Height | 54 cm |
| Base Diameter | 78 mm |
| Bubble Spirit Level (No.) | 1 |
| Carrying Bag Included | No |
| Center Column | Rapid |

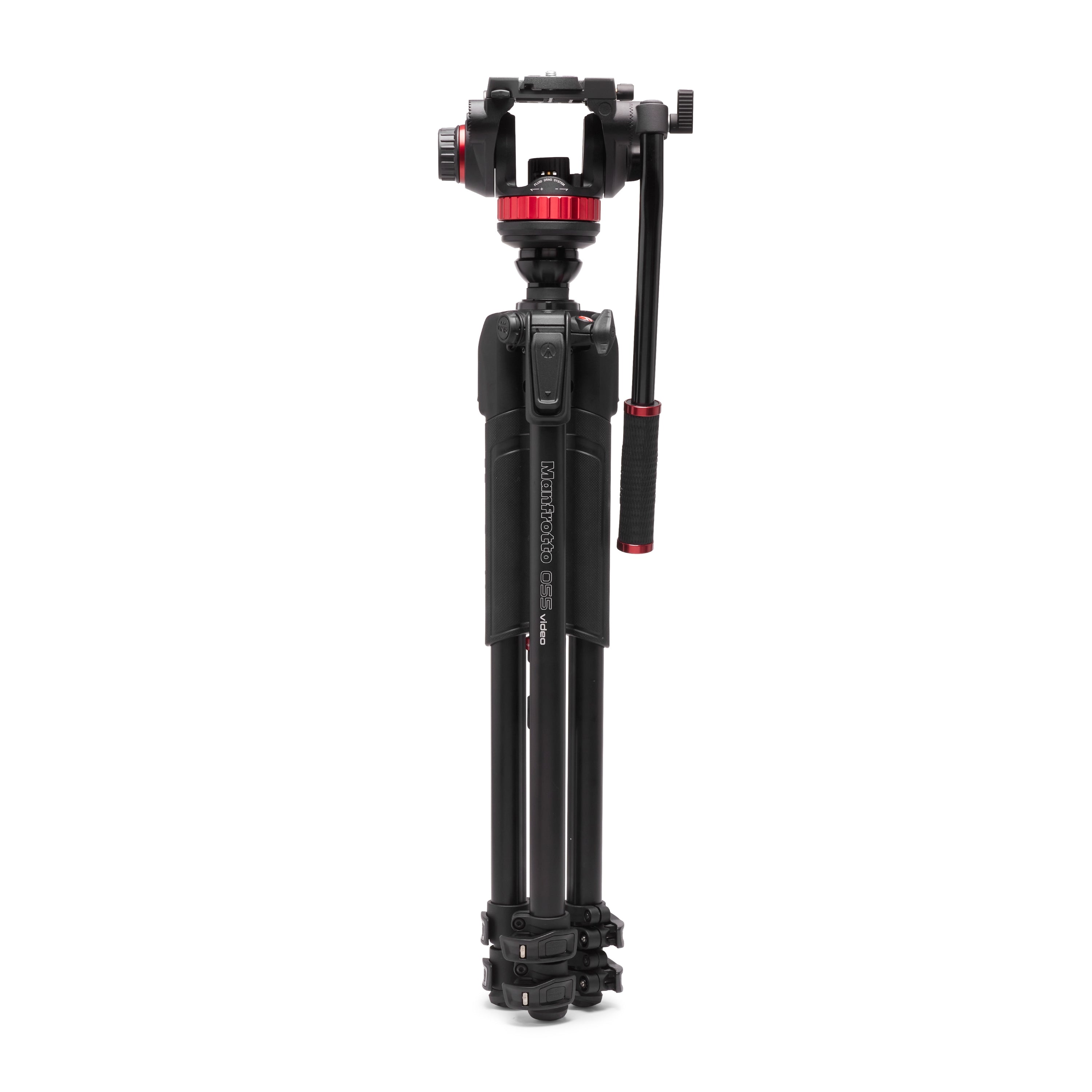

| Closed Length | 79 cm |
| Colour | Black Matt |
| Top Attachment | 1/4” screw, 3/8” screw |
| Ball Flat | Flat |
| Safety Payload Weight | 10 kg |
| Easy Link | Yes |
| Front Tilt | -80° / +90° |
| Head Type | Video/Fluid Head |
| Leg Type | Single |

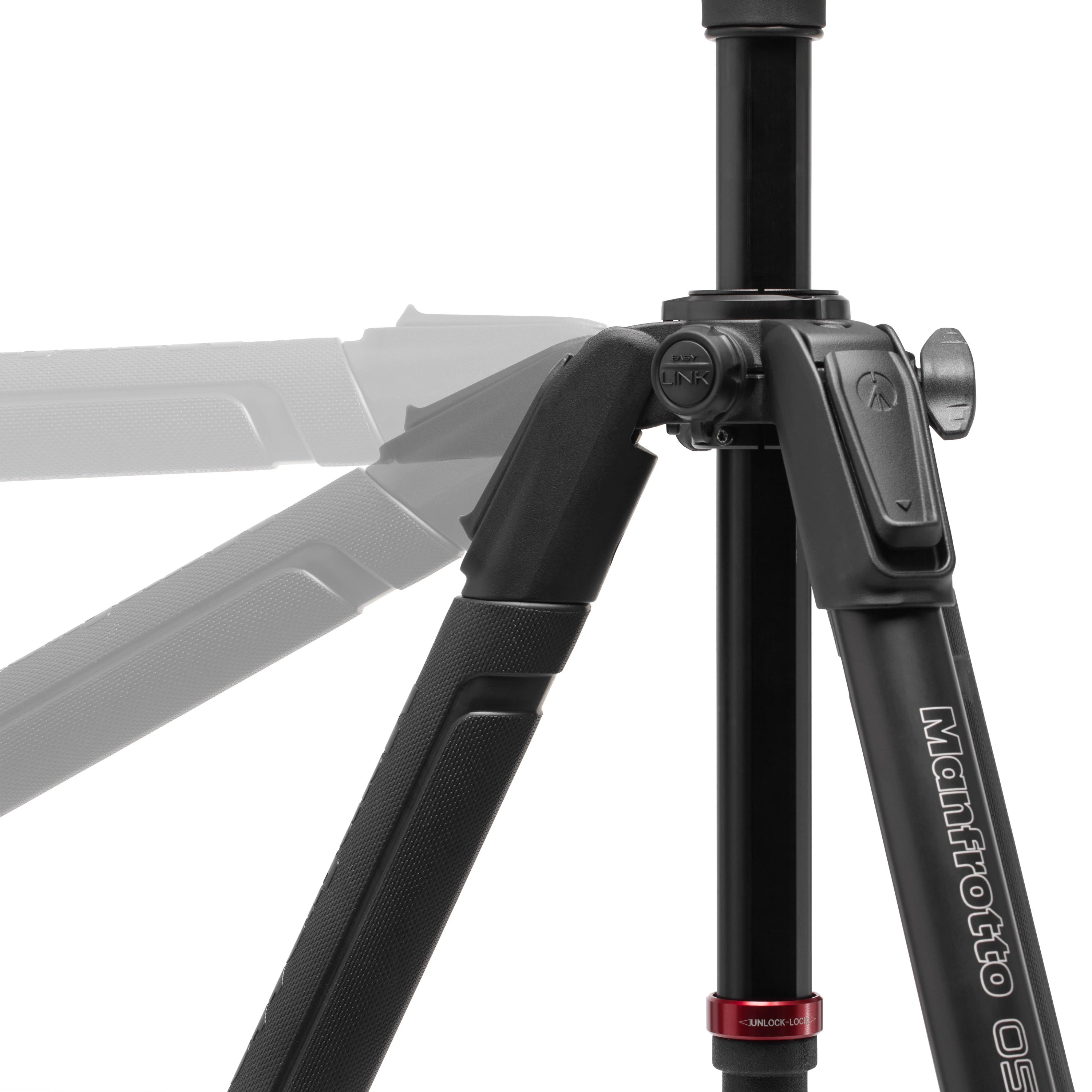

| Leg Angles | 25°, 46°, 66°, 88° |
| Leg Lock Type | Flip Lock |
| Leg Sections | 3 |
| Legs Tube Diameter | 30, 26, 22.5 mm |
| Material | Aluminum, Plastic |
| Maximum Height (with Center Column Down) | 157 cm |
| Maximum Working Temperature | 60 °C |
| Minimum Working Temperature | -20 °C |
| Pan Bar Included | Yes |
| Pan Drag | Continuously adjustable from 0 to max level |
| Panoramic Rotation | 360° |
| Plate Type | 504PLONG |
| Quick Release | Yes |
| Tilt Drag | Continuously adjustable from 0 to max level |
| Upper Disc Diameter | 78 mm |
| Accessory Compatibility | MVAPANBARM; MVAPANBARL; 502HLV; 509HLV |
