Description
- Variable fluid Drag System on PAN & TILT, performed by new fluid
- 4 steps counterbalance system up to 14.3 lbs
- Flat base for shooting on sliders, jibs or other accessories
- Sliding plate side lock attachment
- Easy link connectors with Manfrotto anti rotation technology
Description

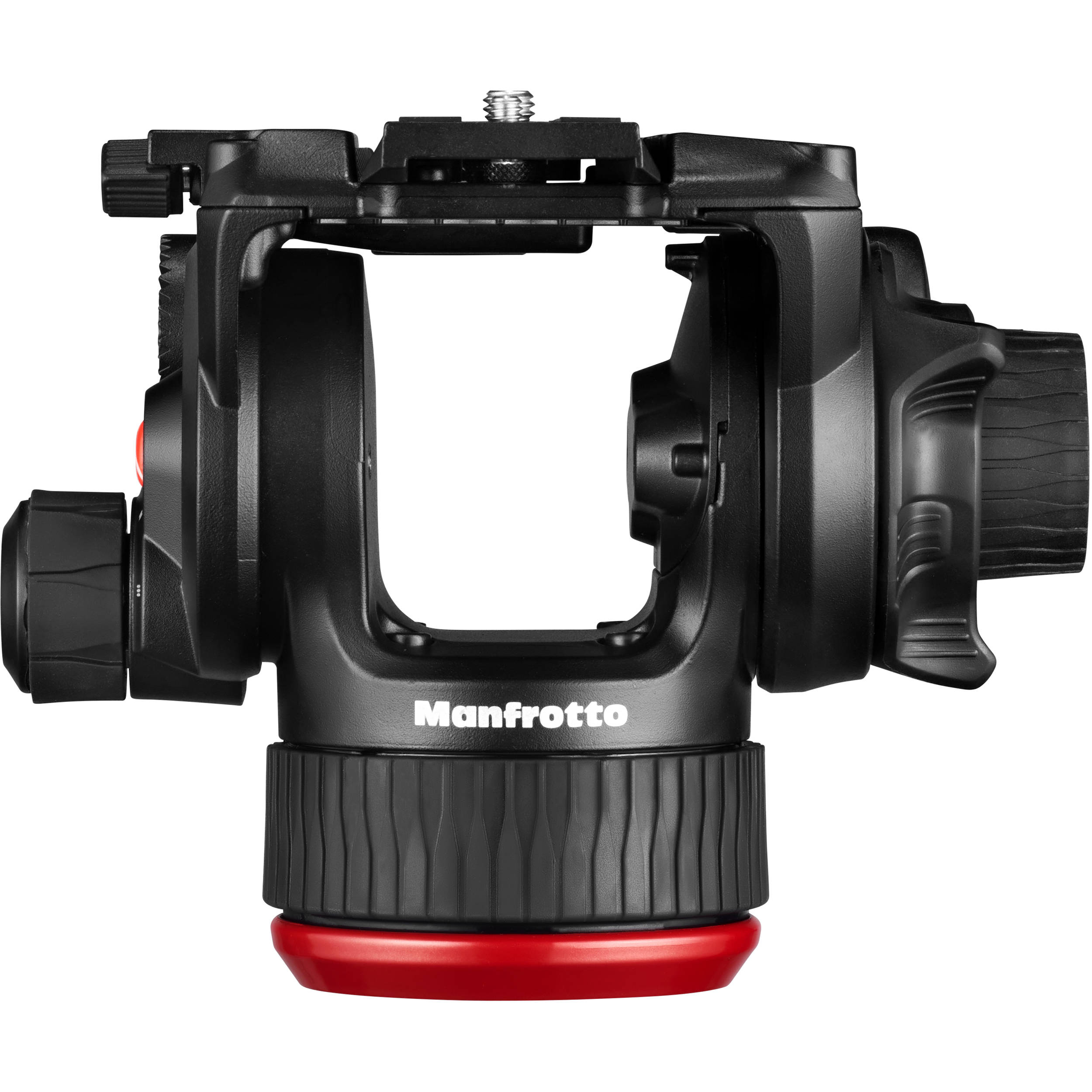

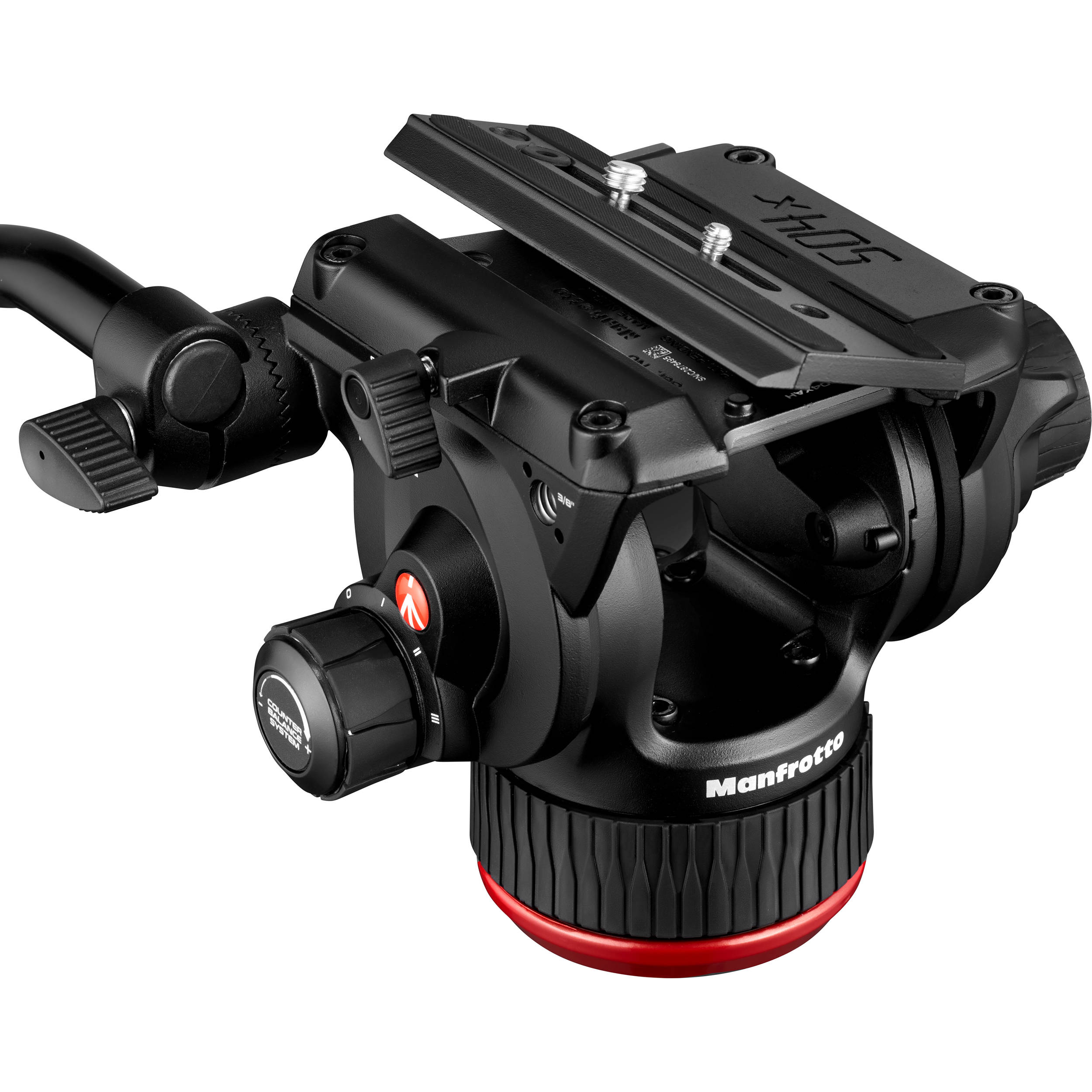

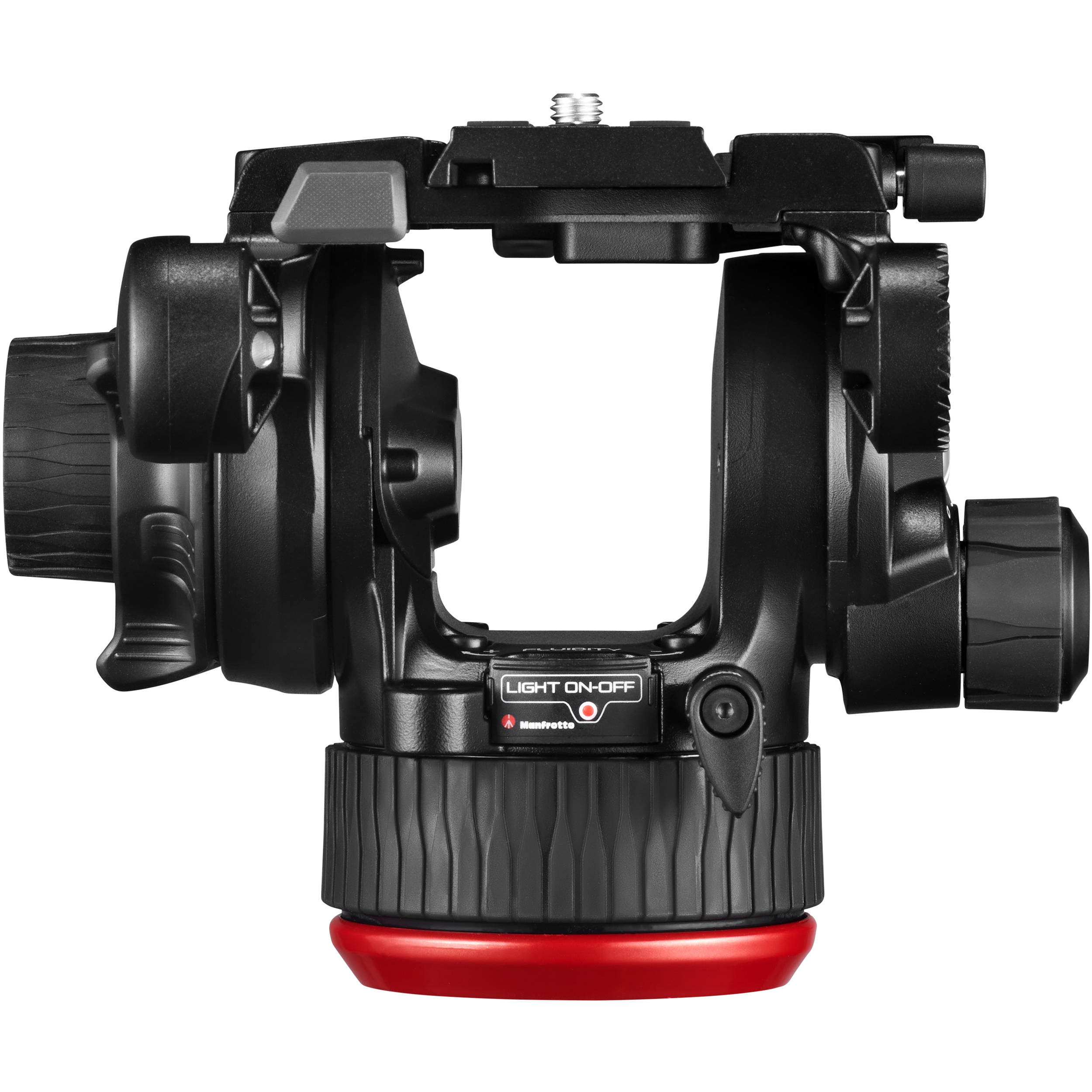

504X fluid video head is the evolution of the hugely successful 504HD.
It's a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.
The head is made from a brand-new catching aluminium design, and has a maximum payload of 26.4 lbs.

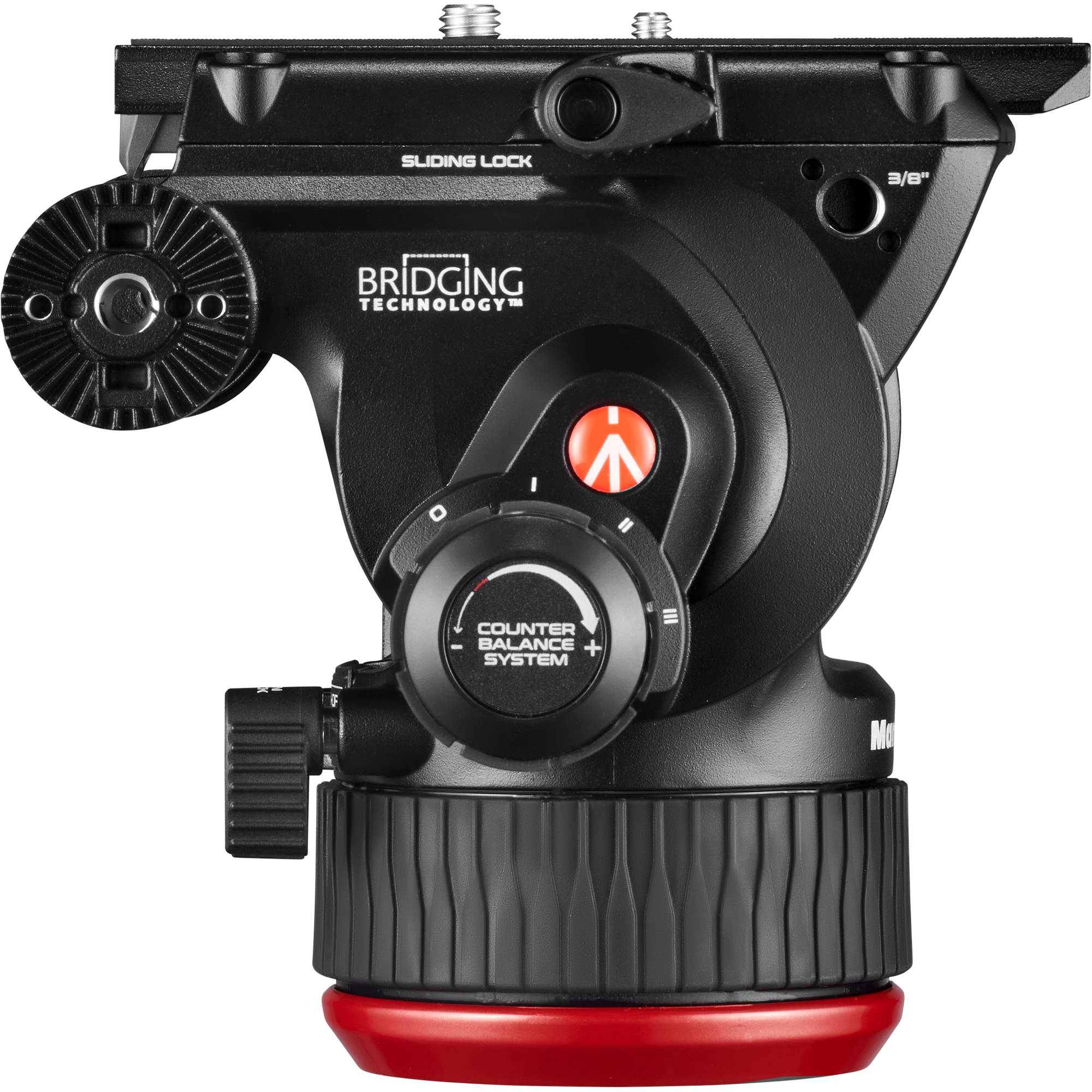

Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It's never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 14.3 lbs at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.

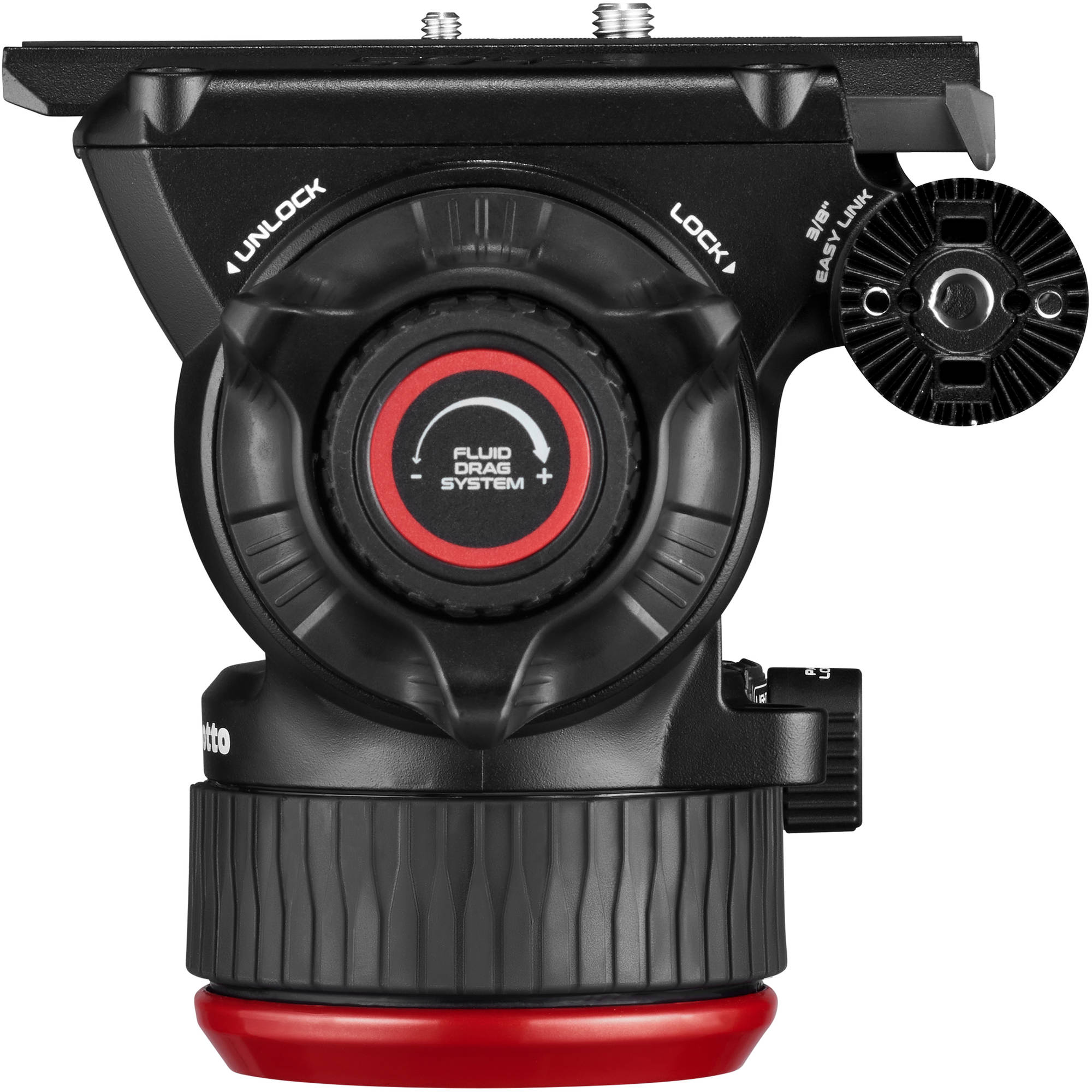

Two easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.

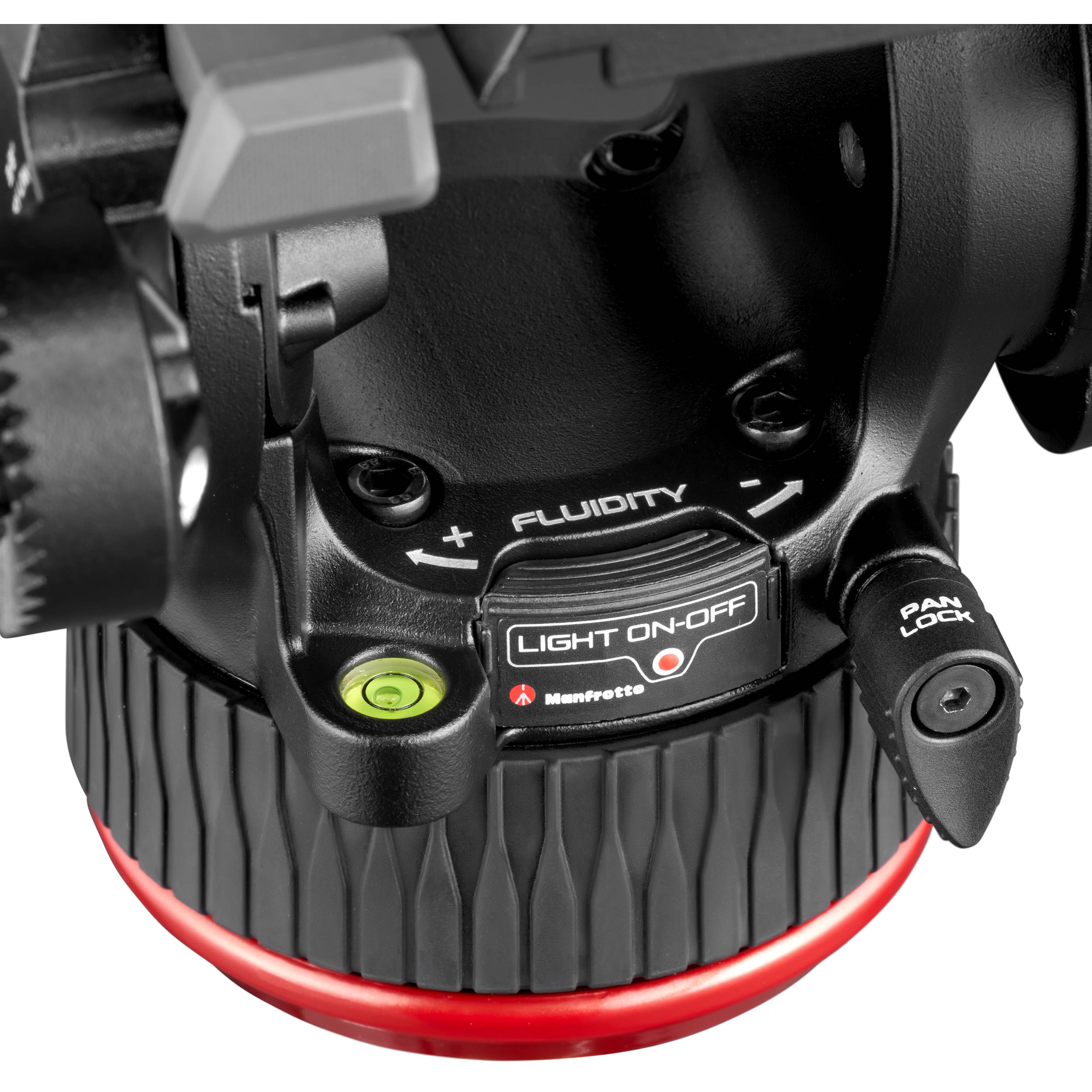

The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit levelling bubble.
Specifications
Weight
2 kg
Top Attachment
1/4″ screw, 3/8″ screw
Ball Flat
Flat
Safety Payload Weight
12 kg
Counterbalance System
Variable Steps
Powered By (Batteries)
Lithium
Base Diameter
75 mm
Counterbalance Weight
2.2, 4.4, 6.5 kg
Bubble Spirit Level (No.)
1
Center Of Gravity
55 mm
Certifications
WEEE; RoHS
Color
Black
Easy Link
Yes
Front Tilt
-70° / +90°
Head Type
Video/Fluid Head
Material
Aluminum
Maximum Working Temperature
60 °C
Minimum Working Temperature
-30 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGR-1
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Working Height
14.9 cm
Accessory Compatibility
MVAPANBARM; MVAPANBARL
