MOVE
- Flawless smoothness for precise framing
- Independent friction control to balance equipment
- Lightweight and strong body holds up to 10kg
- Arca-Swiss-compatible quick-release lock for greater flexibility
- Three bubble spirit levels (one for each axis of rotation)
DESCRIPTION

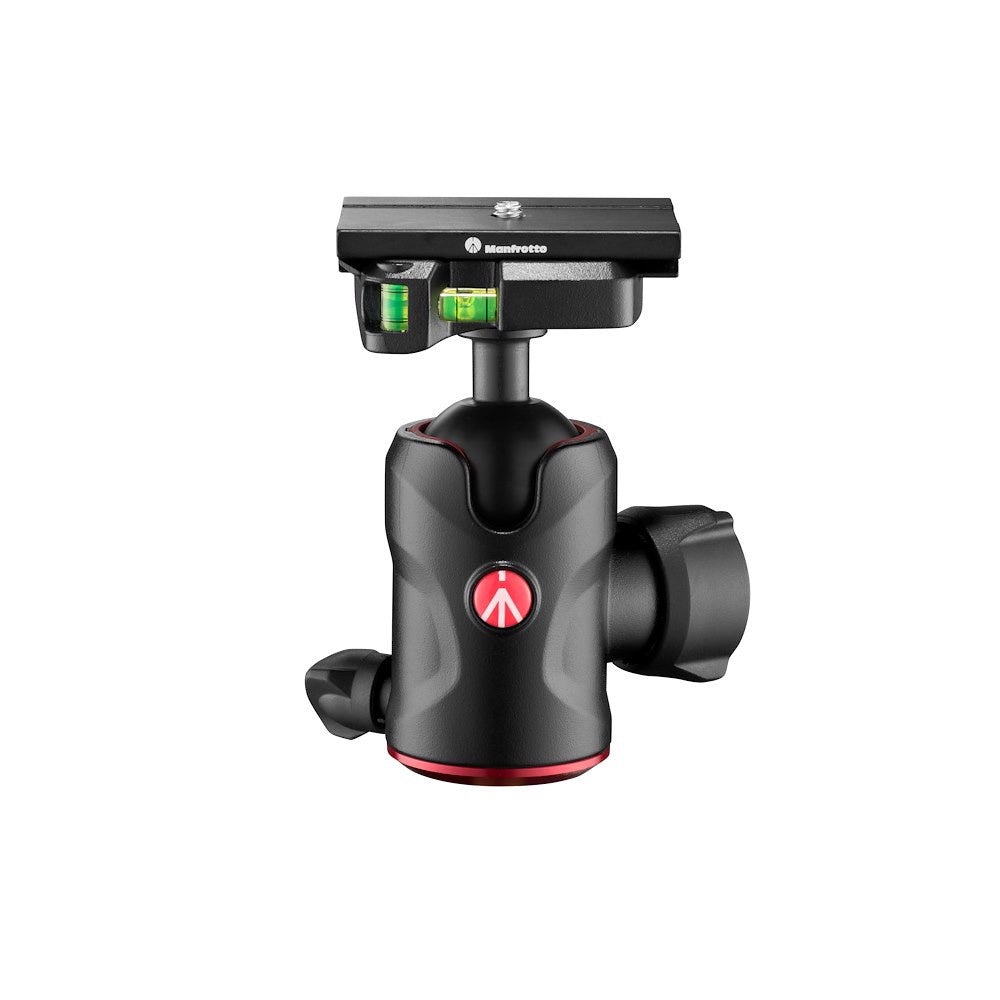

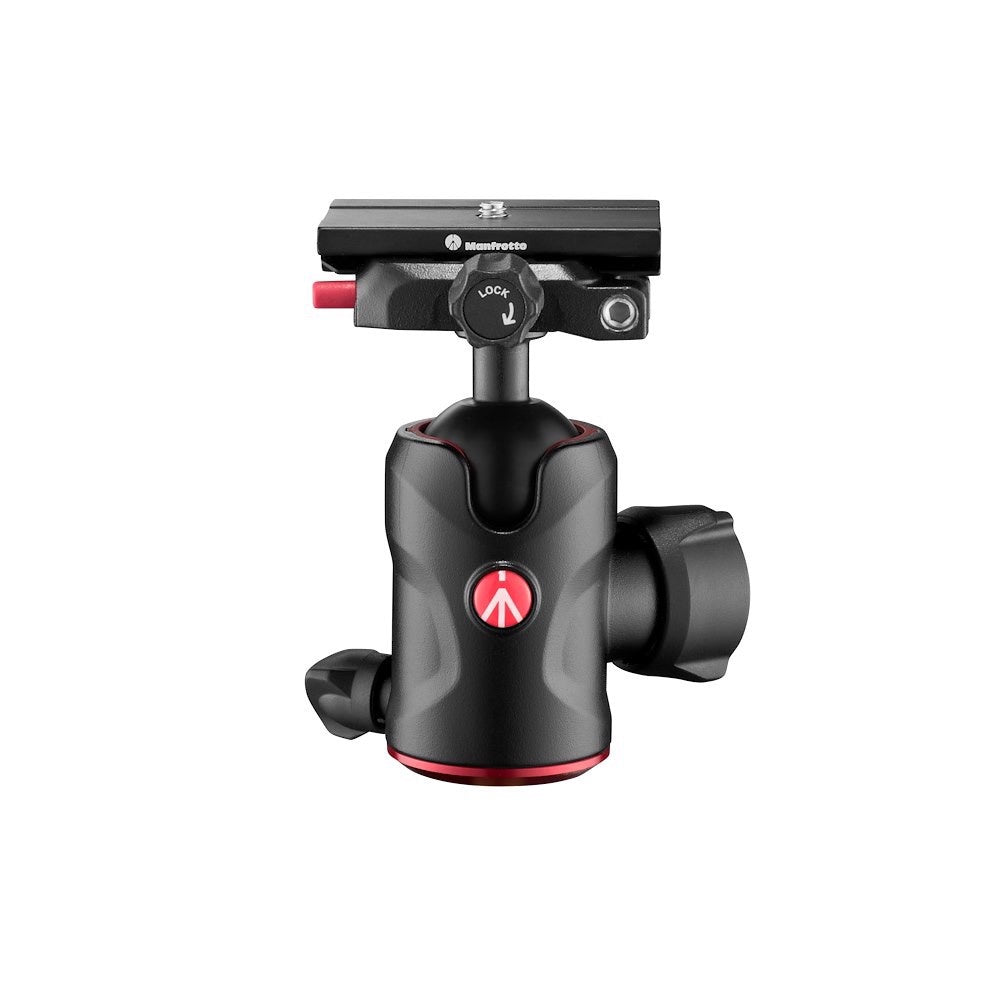

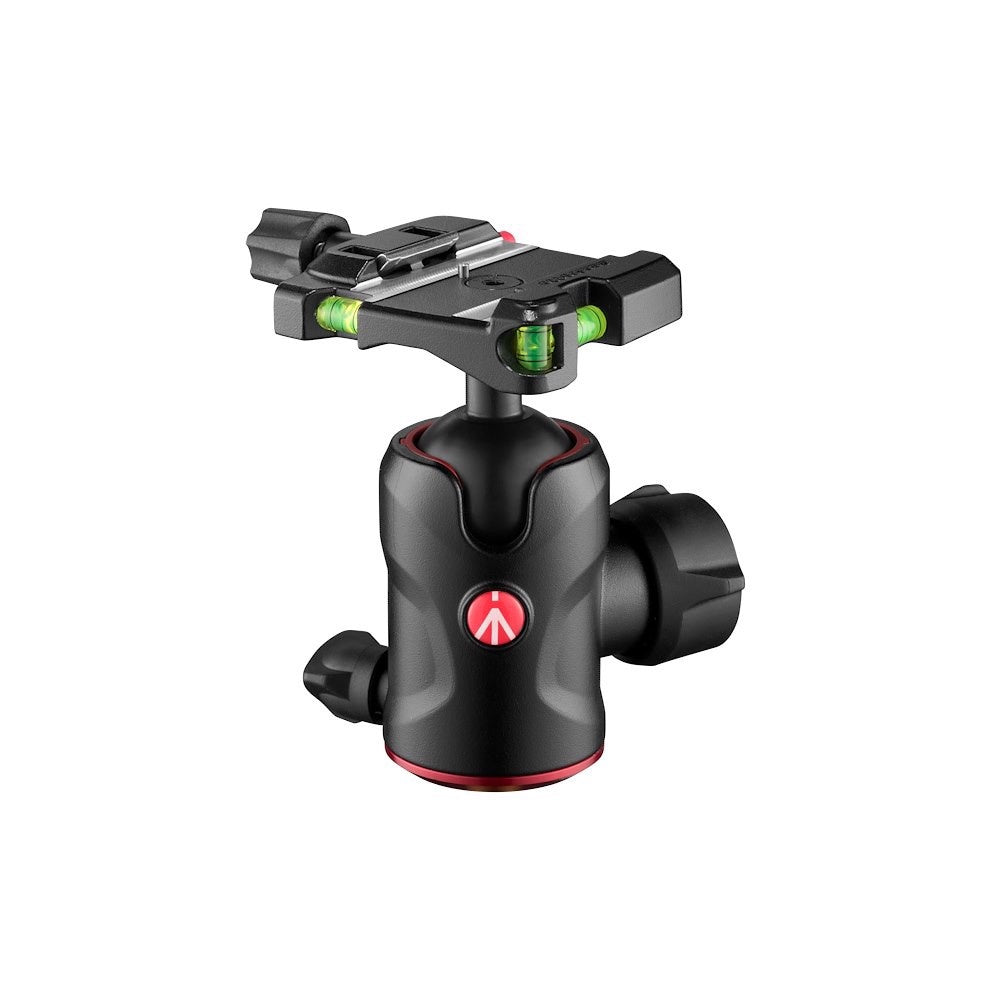

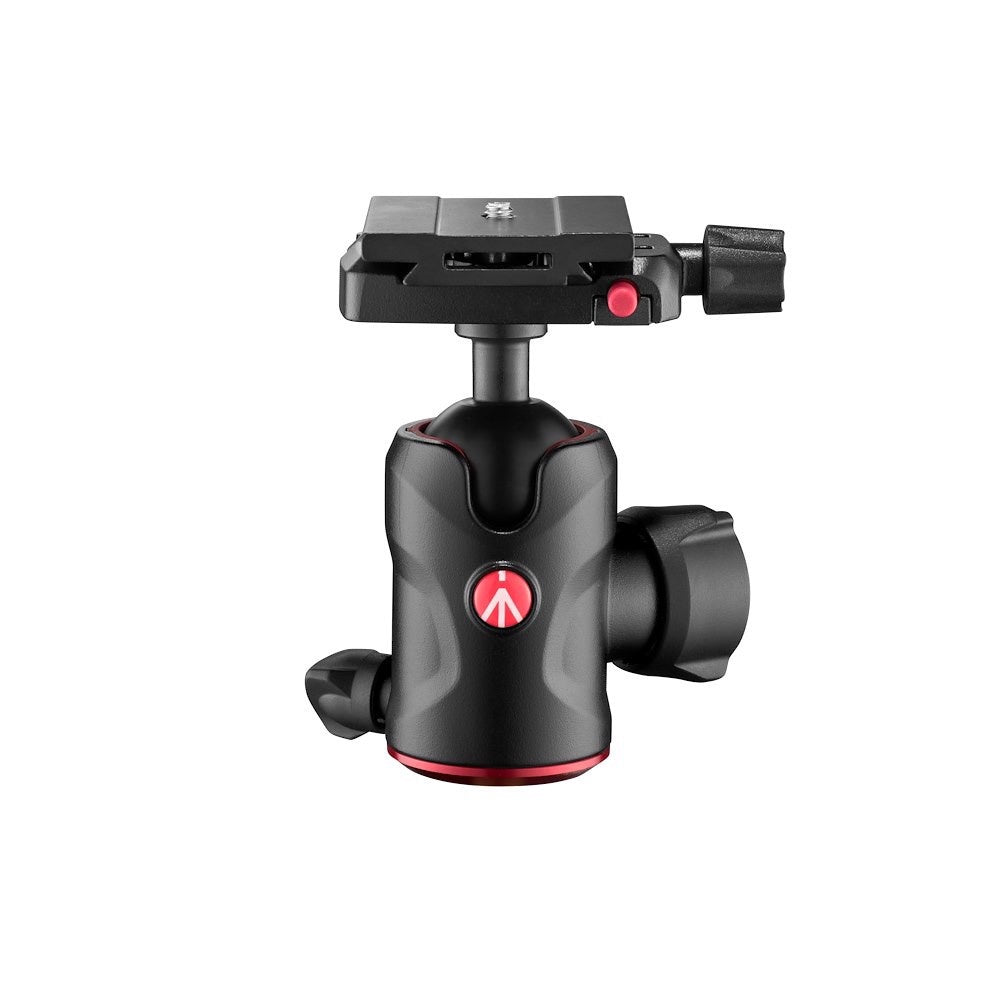

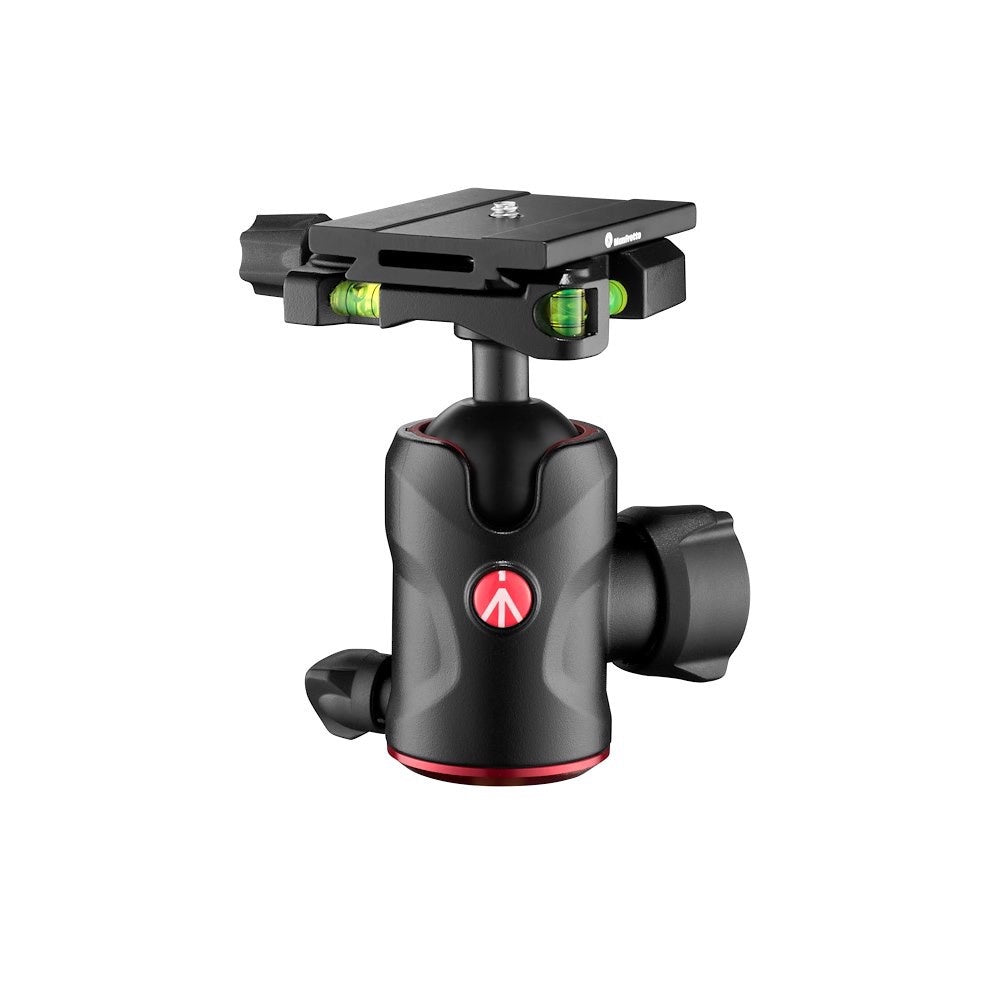

For all photographers looking for a portable yet powerful ball head, the 496 aluminium Centre Ball Head with Top Lock plate enables smooth and precise camera positioning.
This tripod head is made of highly resistant, lightweight aluminium, so it is both portable and strong enough to cope with an impressive payload capacity of up to 10kg/22.03lbs.
It's the perfect solution for all kinds of mirrorless cameras with zoom lenses and DSLRs; the camera sliders and motion controls ensure steadiness and safety.
This advanced ball head combines practicality with high performance and features three independent controls that give it the versatility to suit any environment. A main ergonomic knob manages the sphere lock, and an integrated friction control knob adjusts the ball tension so that equipment weight is always perfectly balanced and shots framed effortlessly. An independent panoramic knob keeps the horizon flat and moves the camera horizontally, enabling astonishing landscape shots. Framing on the new 496 is easier too and opens up limitless options, so you can pursue any angle for new and innovative content creation.
Manufactured to high standards in Italy, the 496 Centre Ball Head mounts an Arca-Swiss-compatible MSQ6PL sliding plate and a Top Lock.
The head has three bubble spirit levels (one for each axis of rotation) to facilitate precise framing and help produce straight images in-camera, ensuring the camera's full frame is usable and reducing post-production time.
For a fast, effortless set-up, the camera is inserted from above rather than from the side. A safety mechanism is released when the plate engages with the head, which prevents your equipment from sliding out.
SPECIFICATIONS
Weight
0.53 kg
Base Diameter
40 mm
Material
Aluminum
Front Tilt
-90° / +40°
Safety Payload Weight
10 kg
Plate Type
MSQ6PL
Color
Black
Ball Locking
Yes
Top Attachment
1/4″ screw
Easy Link
No
Friction Control
Yes
Head Type
Ball Head
Independent Pan Lock
yes
Independent Tilt Lock
yes
Lateral Tilt
-90° / +40°
Maximum Working Temperature
70 °C
Minimum Working Temperature
-30 °C
Pan Bar Included
No
Pan Drag
NONE
Panoramic Rotation
360 °
Quick Release
Yes
Tilt Drag
NONE
Working Height
11.5 cm
