Description

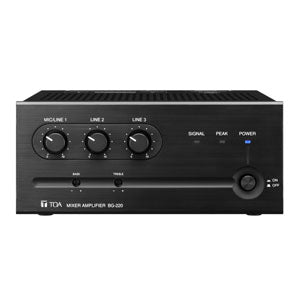

The BG-220 is a 20 W three-input mixer amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms, and is equipped with the MOH OUT that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35 W) or BA-260 (60 W).
| Power Source | 120 V AC, 60 Hz |
|---|---|
| Rated Output | 20 W |
| Power Consumption | 60 W (rated output), 36 W (based on cULus standards) |
| Frequency Response | 50 Hz - 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input |
Mic: -60 dB*/ Line 1: -10 dB* Mic/Line 1 selectable, 600 Ω, electronically balanced, removable terminal block Line 2, 3: -10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack |
| Output |
Speaker: 4 Ω, 25 V (31 Ω) and 70 V (245 Ω), balanced, removable terminal block MOH: 0 dB*, 600 Ω, balanced, removable terminal block Line: 0 dB*, 600 Ω, unbalanced, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio |
Mic/Line 1: 60 dB or more, Line 2, 3: 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) |
| Muting | Manual mute/Automatic mute |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control |
Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1) Mic/Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 ℃ to +35 ℃ (32 ゜F to 95 ゜F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish |
Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 210 (W) × 94.3 (H) × 265 (D) mm (8.27" × 3.71" × 10.43") |
| Weight | 3.5 kg (7.72 lb) |
| Accessory |
Volume control cover: YA-920 ……3 Removable teminal plug (2 pins) ……3, Removable teminal plug (3 pins) ……1 Removable teminal plug (4 pins) ……1, Removable teminal plug (5 pins) ……1 |
| Option | Rack mounting bracket: MB-25B-BK, MB-25B-J |
