Description

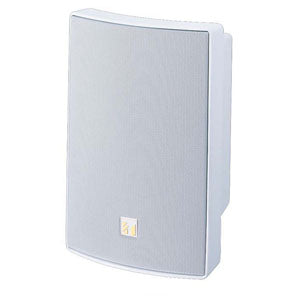

The BS-1030W is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030W can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
| Enclosure | 2-way bass-reflex type |
|---|---|
| Rated Input | 30 W |
| Rated Impedance |
8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 80 Hz - 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Speaker Cord | 2-core cabtyre cord with diameter of 6 mm |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Water Protection | IPX4 (can be installed vertically or horizontally.*) |
| Finish |
Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating |
| Dimension | 196 (W) × 290 (H) × 150 (D) mm (unit only) |
| Weight | 2.5 kg (unit only) |
| Accessory | Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2 |
| Option |
Mounting bracket: SP-420 Applicable bracket: WCB-13W, SP-410 Applicable stand: ST-16A |
