Description

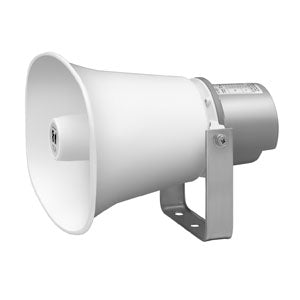

The SC-630TU is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. The SC-630TU is certified to UL 1480 UUMW and ULC-S541 standards, and suitable for outdoor use.
| Rated Input | 30 W |
|---|---|
| Line Voltage | 70 V line or 25 V line |
| Rated Impedance |
70 V line: 170 Ω (30 W), 330 Ω (15 W), 650 Ω (7.5 W) 25 V line: 21 Ω (30 W), 42 Ω (15 W), 170 Ω (3.9 W), 330 Ω (2.1 W), 650 Ω (1.1 W) |
| Sound Pressure Level | 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 250 Hz - 10 kHz |
| Dust/Water Protection | IP65 |
| Polarity | Hot: Black and Red cables, Com: White and Green cables |
| UL Code | UL 1480 UUMW, ULC-S541 |
| Operating Temperature | -40 ℃ to +66 ℃ (-40 ゜F to +151 ゜F) (must be free from dew condensation) |
| Finish |
Horn flare: Aluminum, white (RAL 9010 equivalent), powder coating Reflector horn: ABS resin, white (RAL 9010 equivalent) Rear cover: ABS resin, gray (RAL 7031 equivalent) Bracket, screws and bolts: Stainless steel |
| Speaker Cable |
4-core FPL listed cable 0.6 m (1.97 ft) (4.8 mm (0.19") in diameter, 600 mm (1.97 ft) in length) |
| Dimensions | 285 (W) × 227 (H) × 277 (D) mm (11.22" × 8.94" × 10.91") |
| Weight | 2 kg (4.41 lb) |
| Option | Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
