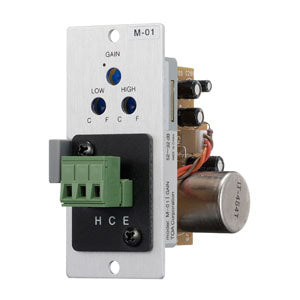

Description
- For Balanced, Low Impedance Microphones.
- High and Low Cut Fileters for tone control, 4.2k Hz and 330 Hz, 6 dB/octave.
- Phantom Power, +22V DC for condenser-type microphones. Avtive by default, cut Jumper J1 to disable.
- Connector: removable terminal block
- High and Low Cut Fileters for tone control, 4.2k Hz and 330 Hz, 6 dB/octave.
- Phantom Power, +22V DC for condenser-type microphones. Avtive by default, cut Jumper J1 to disable.
- Connector: removable terminal block
| Faceplate Controls | Gain, high and low cut filters |
|---|---|
| PCB Controls | Phantom power defeat |
| Input Impedance | 600 ohms, balanced transformer-isolated |
| Sensitivity | '-70 to -50 dBu |
| Gain | 32 to 52 dB |
| Noise (EIN) | -126 dBu, 200 ohms terminated |
