Description

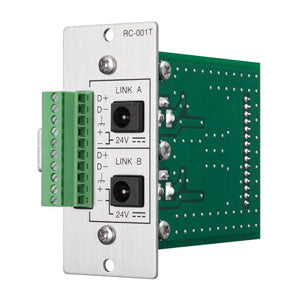

The RC-001T is an interface module to connect between the 9000M2 Series amplifier and the ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote control panel of data communication type. Up to 16 remote control panels can be connected to the RC-001T.
| Power Source | 6 V DC |
|---|---|
| Current Consumption | 30 mA or less |
| Terminal | Removable terminal block (10 pins) |
| Power Input | 24 V DC input × 2 (Applicable AC adapter: AD-246 (option), power supply to Remote Control Panels) Adaptable DC plug: 9.5 (L) × 5.5 (OD) × 2.1 (ID) mm (0.37" × 0.22" × 0.08") |
| Connection Cable | Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP) |
| Maximum Cable Distance | 800 m (874.89 yd) in total |
| Connectable Number of Remote Control Panels | Maximum 16 units (2 link connectors used) |
| Operating Temperature | -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: Aluminum, hair-line |
| Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm (1.38" × 3.07" × 3.6") |
| Weight | 80 g (0.18 lb) |
| Accessory | Module mounting screw …2, Removable terminal plug (10 pins) …1 |
