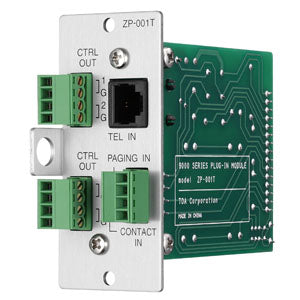

TOA 9000M2 Series Module Telephone

TOASKU: ZP001T

Retail Price:
Sale price$236.90

Product Setup Information

Sorry, no downloads available at this time.

Description

The ZP-001T is a Zone paging module designed for use with the 9000 Series amplifiers and functions as interface to connect the 9000 Series amplifier to an analog PABX, allowing zone paging to be initiated from the PABX. There are two operation modes: ring signal and paging port modes. Broadcast can be initiated regardless of operation mode.
Power Source +24 V DC, +6 V DC
Current Consumption 38 mA (at +24 V DC), 18 mA (at +6 V DC)
Number of Line 1 line
Type of Selectable Signal DTMF signal
Signaling System Loop-Start (or Ground-Start, selectable)
TEL Line 0 dB, 600 Ω, balanced, transformer-isolated,
loop voltage: 24 V DC or more, which should be supplied from the PABX.
RJ11 connector
Paging Input 0 dB, 600 Ω, balanced, transformer-isolated audio input,
removable terminal block (4 pins)
Control Input 1 channel, no-voltage make contact, open voltage: 5 V DC,
short-circuit current: 0.5 mA, removable terminal block (4 pins)
Control Output 4 channels, open collector output (isolated), withstand voltage: 35 V DC,
control current: max. 50 mA, removable terminal block (4 pins)
Operating Temperature -10℃ to +40℃
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm
Weight 153 g
Accessory Removable terminal plug (4 pins) …3, Module mounting screw …2
