Description

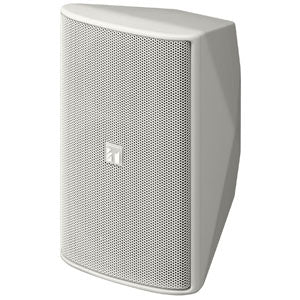

The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
| Enclosure | Bass-reflex type |
|---|---|
| Rated Input | 15 W (high impedance) |
| Power Handling Capacity | Continuos pink noise: 30 W (low impedance) Continuos program: 90 W (low impedance) |
| Rated Impedance | 8 Ω 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 5 kHz |
| Directivity Angle | Horizontal: 90゜, Vertical: 90゜ |
| Speaker Component | Low frequency: 10 cm (4") cone-type High frequency: Balanced dome tweeter |
| Input Terminal | Push-in terminal |
| Finish | Enclosure: HIPS, white Punched net: Surface-treated steel plate, white, paint Joint bracket, wall bracket: Steel plate, t1.6, white, paint Speaker bracket: Die-cast aluminum, white, paint |
| Dimensions | 130 (W) × 202 (H) × 131 (D) mm (5.12" × 7.95" × 5.16") |
| Weight | 2 kg (4.41 lb) (including the supplied brackets) |
| Accessory | Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set |
| Option | Board hanger bracket: HY-BH10B, Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting), Cluster bracket: HY-CL10B, Speaker stand: ST-16A |
