Description

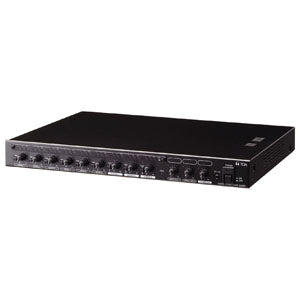

The M-633D is a compact, easy-to-use digital audio mixer designed for Live and AV applications. The M-633D's simple analog interface makes setup and operation fast and efficient. With powerful, automatic on-board DSP, the M-633D eliminates problem acoustics and feedback that optimizes sound quality for any venue. Multiple outputs provide flexibility for operation in several zones and allows recording of main mix signal. Its compliment of inputs makes it ideal for live performance, conferences and banquet events utilizing microphones and music playback or other auxiliary audio sources.
| Power Source | 120 V AC, 60 Hz |
|---|---|
| Power Consumption | 13 W |
| Frequency Response | 20 Hz - 20 kHz |
| Sampling Frequency | 48 kHz |
| Dynamic Range | 90 dB or more (IHF-A weighted) |
| Distortion | 0.03 % or less, 1 kHz, -10 dB(*4) input, 0 dB(*4) output (20 Hz - 20 kHz BPF) |
| Input | 6 monaural input channels (MONO IN 1 - 6), selectable independently from 3 types of inputs below for each channel LINE : -10 dB(*4), 2.4 KΩ MIC : -46 dB(*4), 2.4 KΩ PHANTOM : -46 dB(*4), 2.4 KΩ supplies phantom power of +24 V DC, 10 mA electronically balanced Removable terminal block (3 pins), phone jack 3 stereo inputs (L, R) (STEREO IN 1 - 3) -10 dB(*4)/ 10 kΩ, RCA jack (STEREO IN 1 - 3), Stereo mini jack (ST IN 1) |
| Output | 2 monaural output channels (MONO OUT 1, 2) 0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced, removable terminal block (3 pins) 1 stereo output (L, R) channel (ST OUT L, R) 0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced, removable terminal block (3 pins) 1 stereo recording output (L, R) channel (REC OUT L, R) -10 dB(*4) (applicable load: 1 kΩ or more), RCA jack |
| Bus Line | Monaural channel × 2, Stereo channel × 1 |
| AD Converter | 24 bits |
| DA Converter | 24 bits |
Signal Processing
| Automatic Resonance Control Function | 3 output channels (each monaural output channel, stereo output L, R), independent settings for each channel, automatic creation of EQ curves (for sound field compensation) ARC measurement start switch × 1, Function ON/OFF check indicator × 1 |
|---|---|
| Feedback Suppression Function | 6 channels (each monaural input channel), independent settings for each channel Function ON/OFF switch × 6, Function ON/OFF check indicator × 6 |
| Automatic Clipguard Function | 6 channels (each monaural input channel), independent settings for each channel |
| Automatic Mute Function | Function ON/OFF switch × 1 |
| Input Level Indicator | 2-color LED indicator: Green (for appropriate level)/red (for peak level) |
| Output Level Indicator | 2-color LED indicator: Green (for appropriate level)/red (for peak level) |
| Finish | Panel: Aluminum, black, hairline Case: Precoated steel sheet, black, 30 % gloss |
| Dimensions | 420 (W) × 44 (H) × 341.3 (D) mm (16.54" × 1.73" × 13.44") |
| Weight | 4 kg (8.82 lb) |
| Accessories | Power cord (2 m (6.56 ft)) ……1, Removable terminal plug (3 pins) ……10, Rubber foot ……4, Rack mounting bracket ……2, Machine screw (M3 × 8) ……6 |
