Description

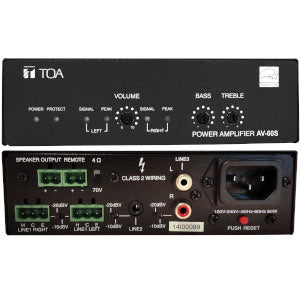

The AV-60S-AM is a single channel digital amplifier for speech and general announcement. This compact amplifier is equipped switching power supply circuit inside, Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for the installation into air handling space without external AC adaptor. The rated output power is 60W at 70V or 4 Ohms. The unit is suited to use in board room, conference room and AV presentation room 60W @ 4 ohms / 60W @ 70V
Clear, Crisp Sound
Micro Class D amplifier for use in meeting/board rooms and signage applications with bass and trebel controls.
Multiple Connectors
Input signal present (-20dB) and peak LED indicators, along with L/R Line inputs via: removable transformer-balanced terminal block, 1/8” TRS mini-jack and RCA connections. Clip Limiter prevents distortion due to overload.
Ease of Use
Remote volume control port for use with 10 K ohm pot
Compact Size
Small size (approx. 6” x 6” x 1.75”) allows convenient & flexible placement: also rated UL 2043-rated for plenum installation
Energy Efficiency
Energy Star v3.0 certified including auto off/standby, and 60W @ 4 Ohms / 60W @ 70V
Optional Accessories
- MB-AV20PM Metal Pole Mount Bracket
- MB-AV20RM Metal Rack Mount Kit (1 or 2 amplifiers are mountable in 1 unit)
- MB-DM820 Metal Desk-mount Bracket
