Description

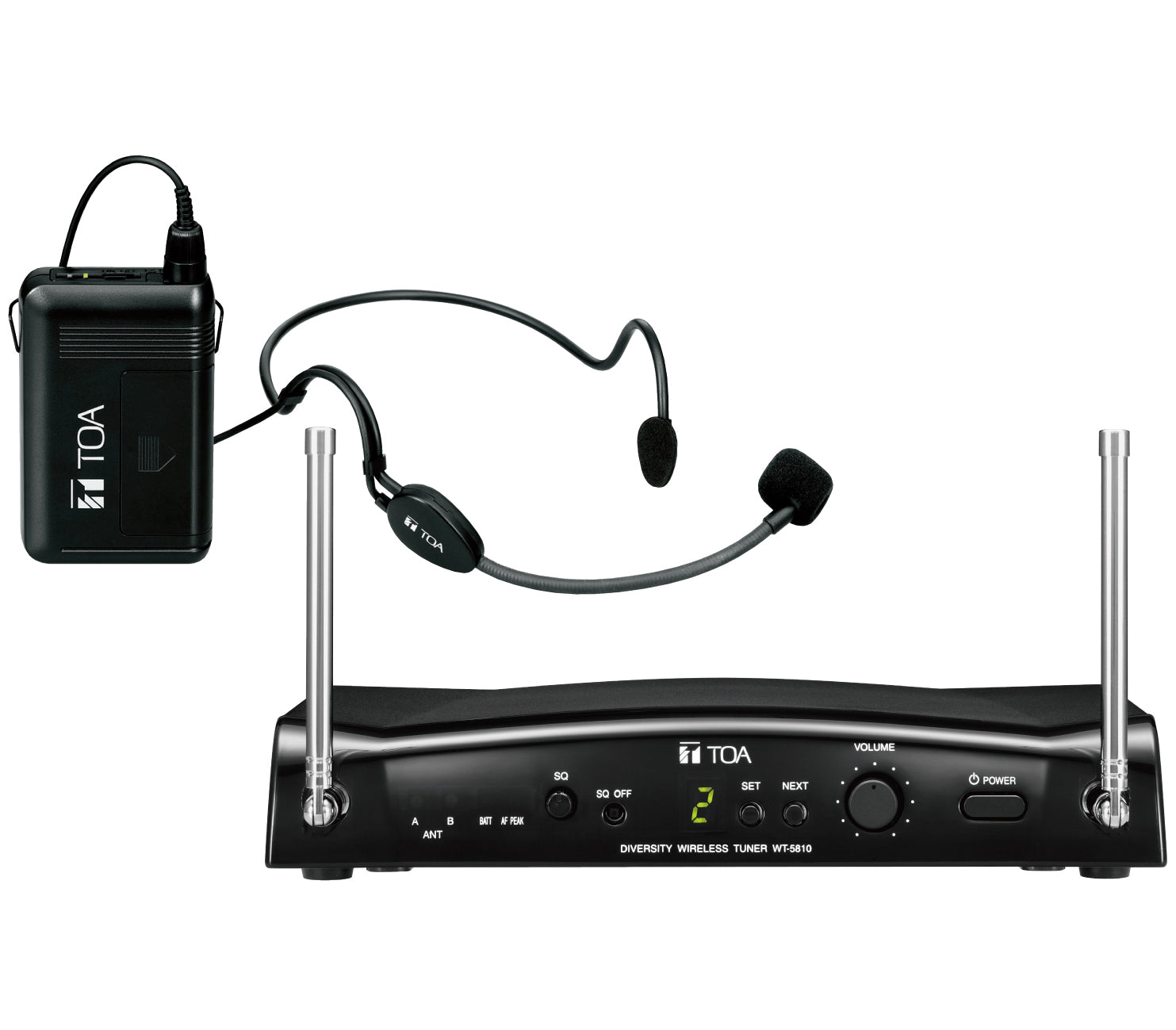

The WS-5325H includes a wireless transmitter WM-5325, a headset microphone WH-4000H, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WH-4000H employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
- Product Composition:
- Wireless transmitter WM-5325 x1
- Headset microphone WH-4000H, x1
- Diversity wireless tuner WT-5810 x1
- Frequency Range: 576 - 865MHz (*1), UHF
- Tone Frequency: 32.768kHz
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
-
Wireless transmitter
- Modulation: Frequency modulation
- Channel Selectable: 64 channels (the number of channels may differ from country to country)
- RF Carrier Power: Less than 50mW (Factory preset 10mW ERP)
- Oscillator: PLL synthesized
- Maximum Input Level: -14dB to -29dB (*3) (Audio level control: Min. to Max.)
- Battery: WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or "AA" alkaline dry cell battery
- Battery Life: Approx. 13hrs (when the WB-2000 rechargeable battery is used) Approx. 10hrs (when the alkaline battery is used)
- Indicator: Power / Battery lamps
- Antenna: Built-in type
- Finish: Resin, coating
- Dimensions: 62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04" × 0.91")
- Weight: 90g (0.2lbs) (with battery)
-
Headset microphone
- Microphone Element: Electret condenser type: Unidirectional
- Sensitivity: -66dB ±3dB (0dB = 1V / 0.1Pa, @ 1kHz)
- Cord Length: 1.3m (4.27ft)
- Finish Frame: Stainless, black (silicon rubber), Gooseneck: Black (shrink tube)
- Weight: 50g (0.11lbs) (cable included)
-
Diversity wireless tuner
- Power Source: AC mains (supplied AC adapter must be used)
- Power Consumption: 130mA (12VDC)
- Channel Selectable: 16 channels
- Receiving System: Double super-heterodyne
- Diversity System: Space diversity
- Mixing Output:
- MIC: -60dB (*3), 600Ω, balanced, XLR-3-32 type connector
- LINE: -20dB (*3), 600Ω, unbalanced, phone jack
- Mixing Input :-20dB (*3), 10kΩ, unbalanced, phone jack
- Antenna: Whip antenna
- Receiving Sensitivity: 90dB or more, Signal to Noise ratio (20dBµV input, 40kHz deviation)
- Squelch Sensitivity: 16 - 40dBµV variable
- Squelch System: Using together of noise SQ, carrier SQ and tone SQ
- Indicator: ANT A / B, Audio (peak), Battery alarm, Channel number
- Channel Check: Usable frequencies scanning
- Signal to Noise Ratio: 104dB or more (A-weight, unbalanced output)
- Harmonic Distortion: 1% or less (typical)
- Frequency Response: 100Hz - 15kHz, ±3dB
- Finish: Resin, black
- Dimensions: 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6" × 6.01") (excluding antenna)
- Weight: 590g (1.3lbs)
