Description

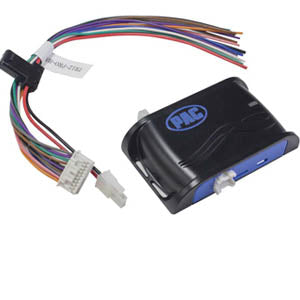

- The TR12 is a smart trigger module that offers a total of four channels and can be programmed individually to provide positive or negative outputs. Conveniently the type of output for each channel can be defined such as pulsed latched timed ground and positive 12 Volt with up to three amps of current. The unit is programmable using a PC to control the outputs with accuracy.
- 8 Input Channels 4 positive and 4 selectable positive/negative.
- 4 Programmable Output Channels Pulsed.
- Latched / Unlatched.
- Delay (Timed).
- Toggle.
- ActuatorGround.
- 12V output (up to 3 Amp each) .
- Customized PC programming capablities: Low Voltage Trigger with Adjustable Trigger Voltage.
- Turn-on / Turn-off delay.
- Latching / Pulsed Outputs.
- Door Lock Pulse Generator.
- Channel Expander.
- 1 or 2 Linear Actuators.
- Pre-configured presets for most popular uses Alpine Clarion and Pioneer radios.
- Ability to save and load user defined configurations.
- LED confirmation indicators.
