Description

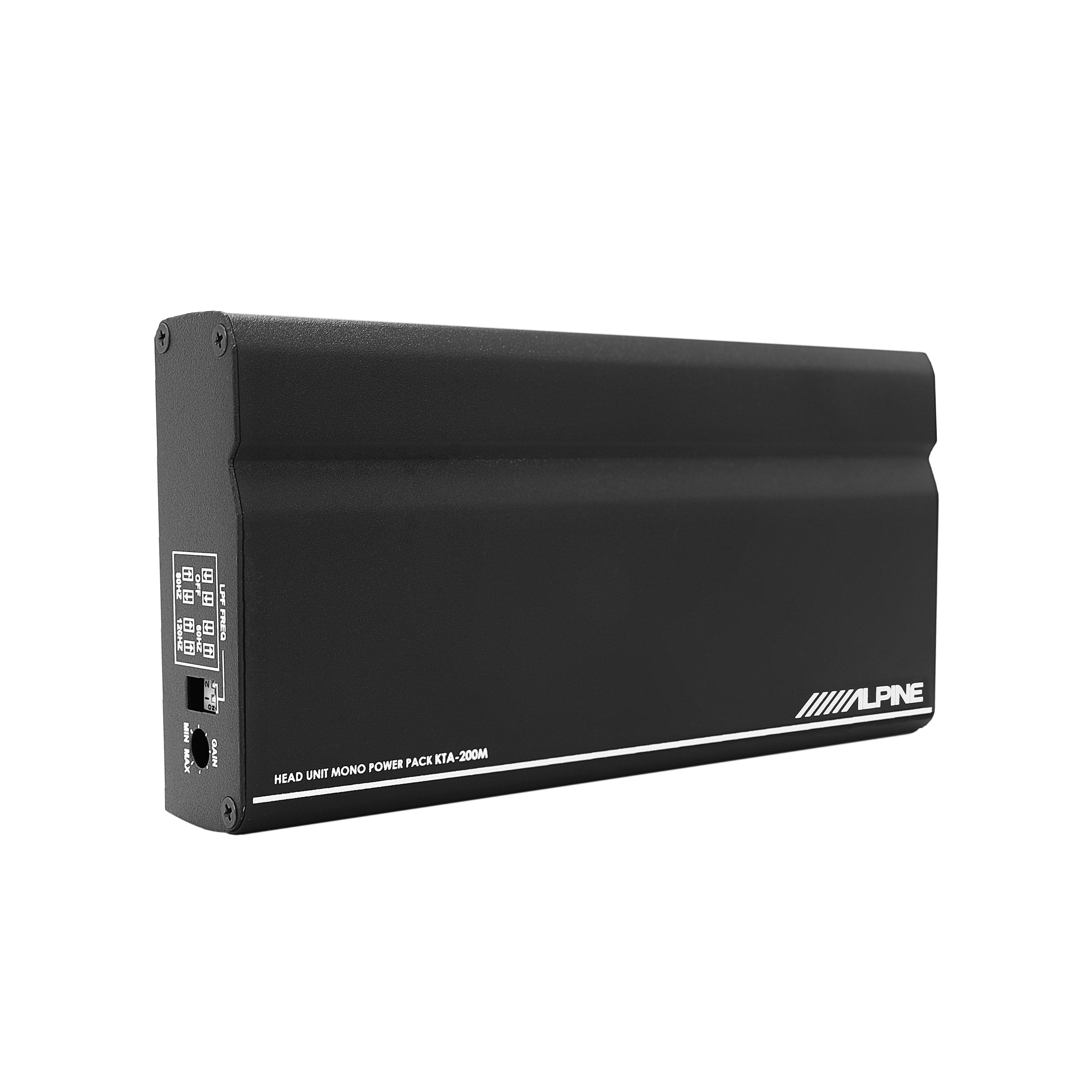

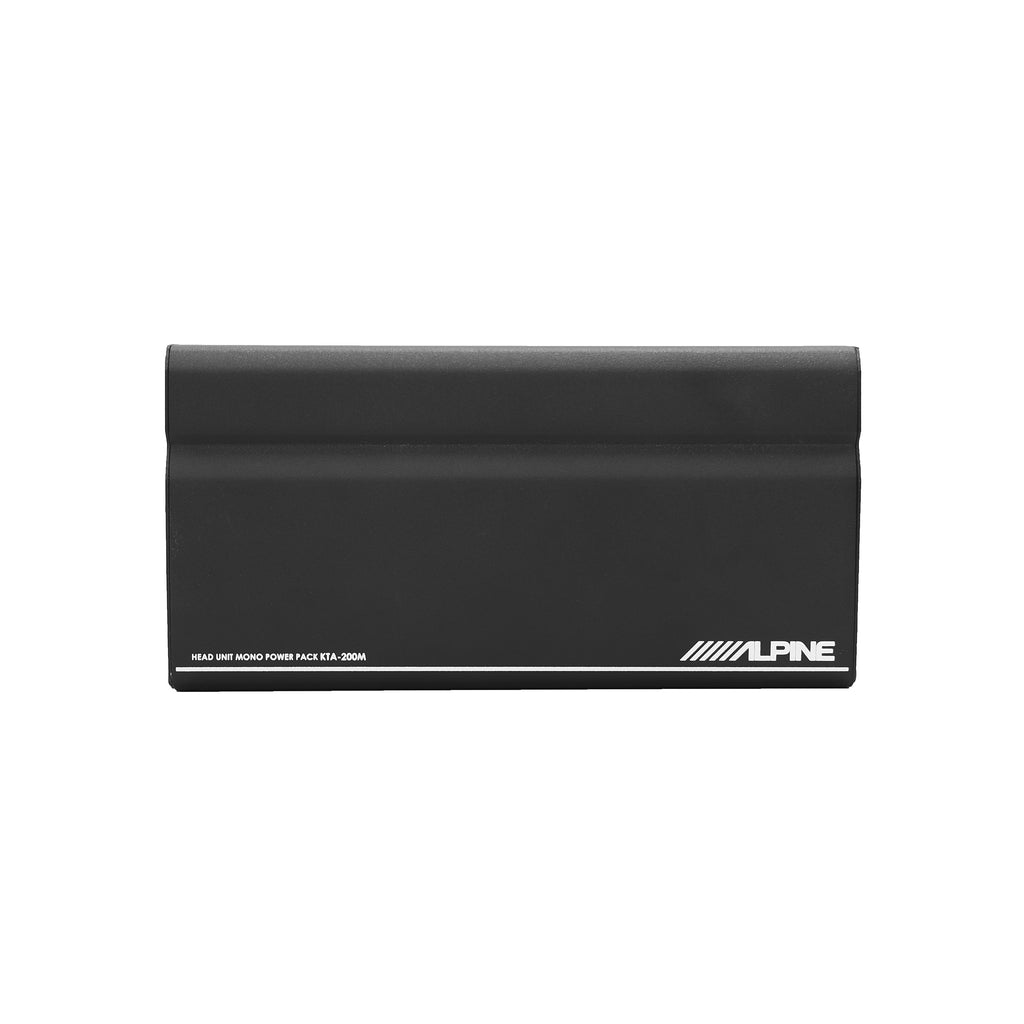

The KTA-200M Mono Power Pack Amplifier produces 400-watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.
With the highest performance value on the market, this mono-power amplifier provides an easy update path to add more bass to a sound system in vehicles that don't normally have the room for a traditional amplifier.
Utilizing Alpine's exclusive Dynamic Peak Power (DPP) technology, the 200-watt KTA-200M delivers bursts of power to meet the peak demands of music, effectively rising to 400-watts and then rolling back to maintain efficiency.
The new voltage adapting circuit is included to maintain the maximum source signal level without clipping.
With the compact, Power Pack design, the amplifier can fit in hidden areas, like a glove box, under a seat, or mounted behind a receiver to optimize power and space in the vehicle.
The KTA-200M mounts behind the iLX-W760 7" Mech-Less Audio/Video Receiver with PowerStack™ technology.
The KTA-200M has input capability to add the optional RUX-H01 Remote Bass Control Knob for quick bass adjustments when needed.
- Alpine’s Exclusive Dynamic Peak Power (DPP) Technology
- THD+N ≤0.1% (ref. 10W into 4Ω)
- Single-side 22-pin connector
- RCA inputs (Low range=0.2-4V)
- Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
- Remote Bass-Knob ready with the RUX-KNOB.2 (sold separately)
- PowerStack™ capable with the Alpine iLX-W650 (sold separately)
- Product Dimensions: 7” x 1.5 “ x 3.5 “
- Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
- 200W x 1 RMS (4Ω, 14.4V, ≤1% THD+N)
- 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N)
- 400W x 1 DPP (4Ω, 14.4V, ≤1% THD+N)
- S/N >80dB (ref. 1W into 4Ω)
