Description

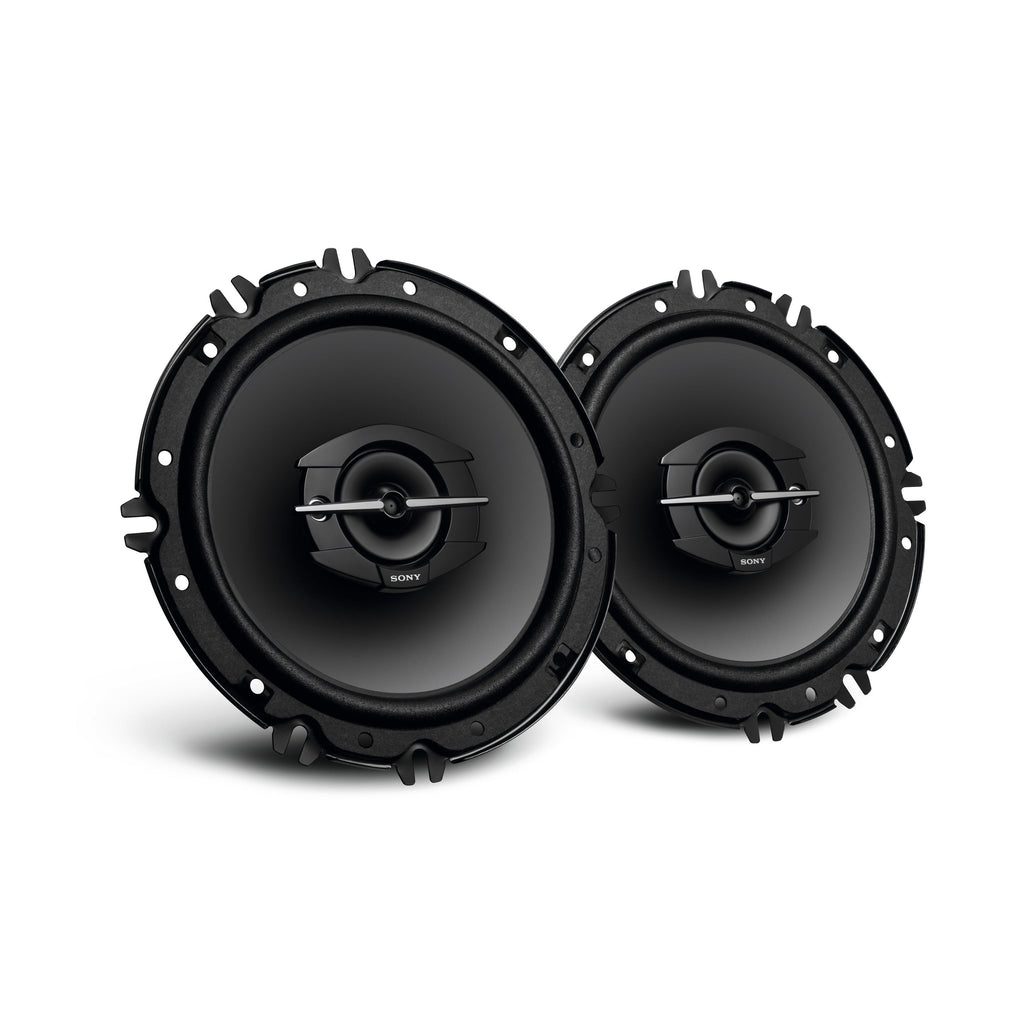

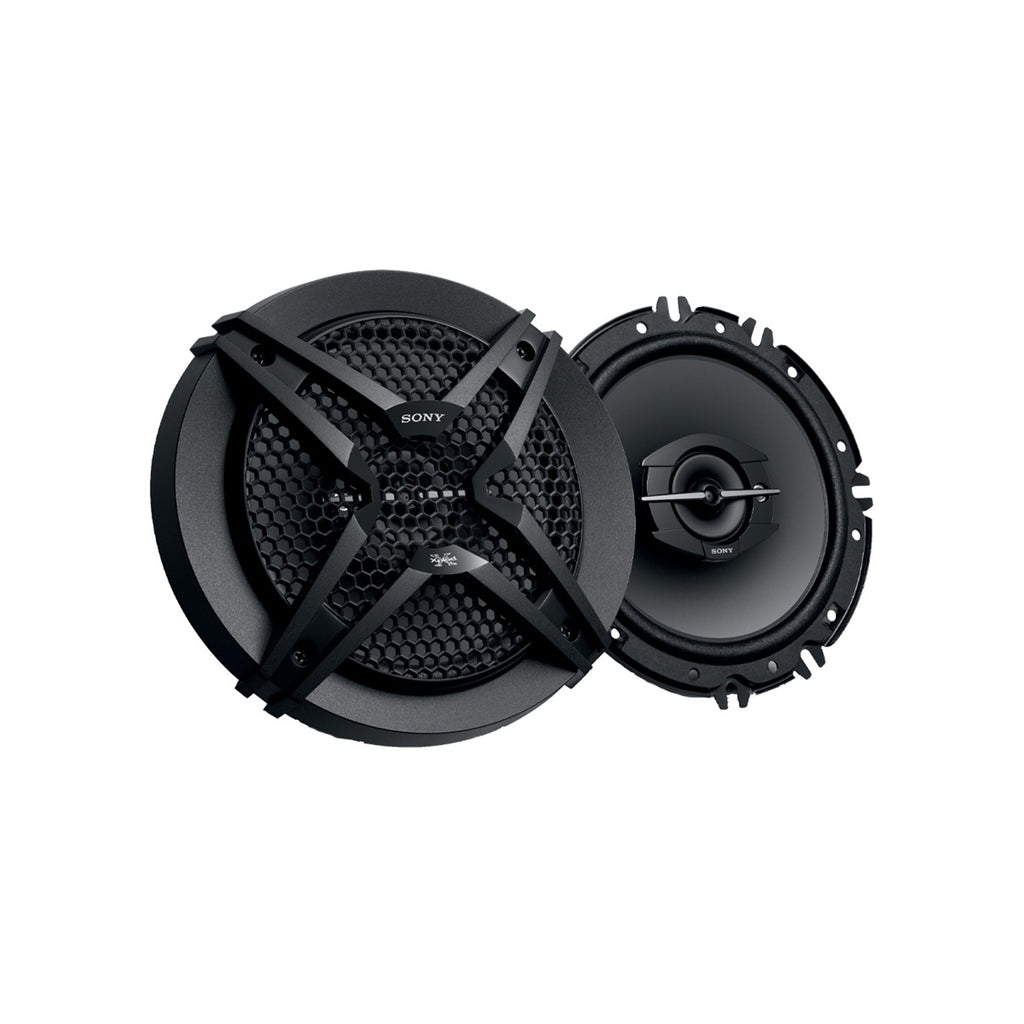

The Sony XSGTF1639 is a 6 1/2 inch full range 3 way pair of speakers. This unit has a peak power of 270w with an total RMS rating of 45W. The effective Frequency range on the XSGTF1639 is 55-24,000Hz. The tweeter is a Balanced Dome.
Size & Weight
- Dimensions (W X H X D): φ158mm x (42mm + 8.4mm) H
- Weight (Driver Unit): 560g
Speaker System
- Configuration: Full range 3way
General Features
- Peak Power: 270W
- RMS Power: 45W
- Effective Frequency Range: 55-24,000Hz
- Output Sound Pressure: 90dB
Woofer
- Type: Cone (HOP+ACFM)
- Surround Material: Rubber coated cloth surround
- Woofer Magnet Material: Ferrite
Tweeter
- Type: Balanced Dome
- Diameter: φ35 mm
- Tweeter Diaphragm Material: PEI
- Tweeter Magnet Material: Neodymium
Super Tweeter
- Super Tweeter Type: Piezo
- Super Tweeter Diaphragm Material: PEI
What's in the Box
- Supplied Accessories: Speaker cord (*m x2): 0.3m x 2
