Product Setup Information
Sorry, no downloads available at this time.
Description

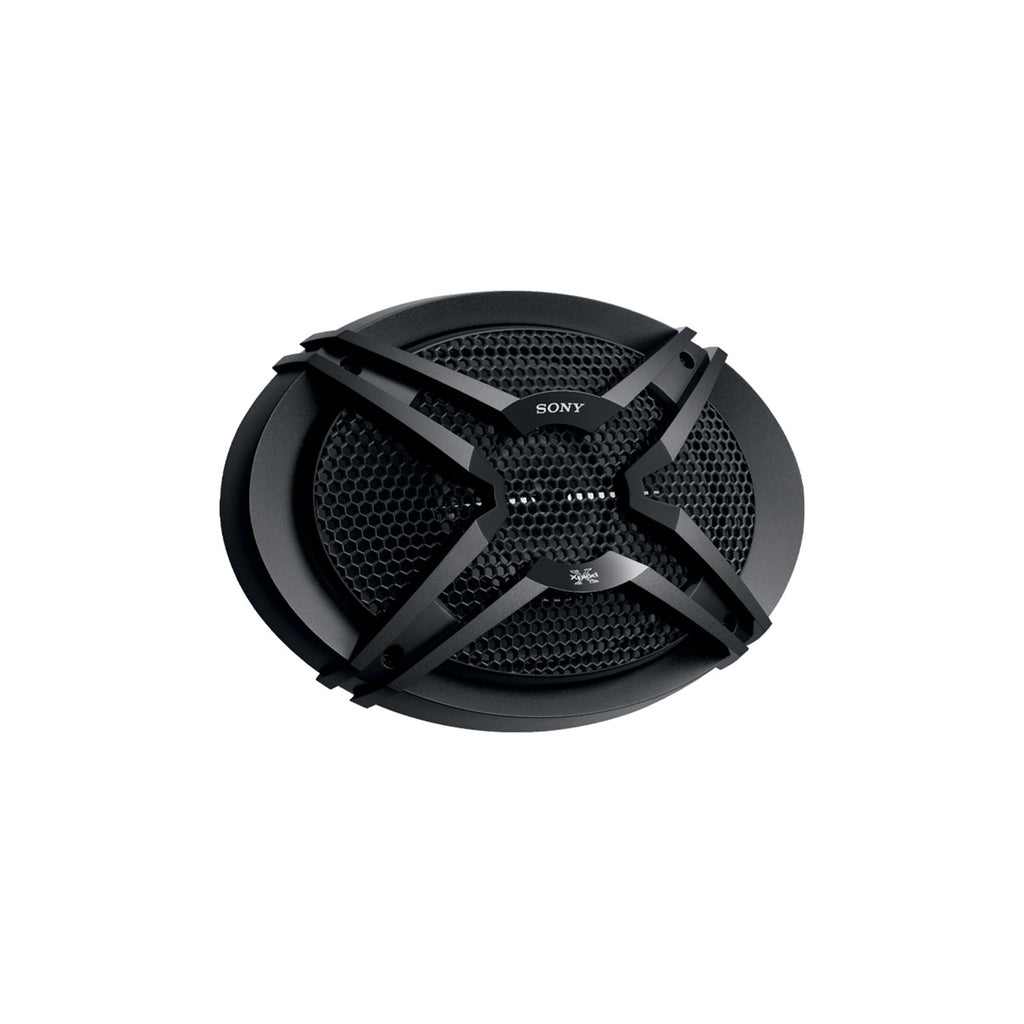

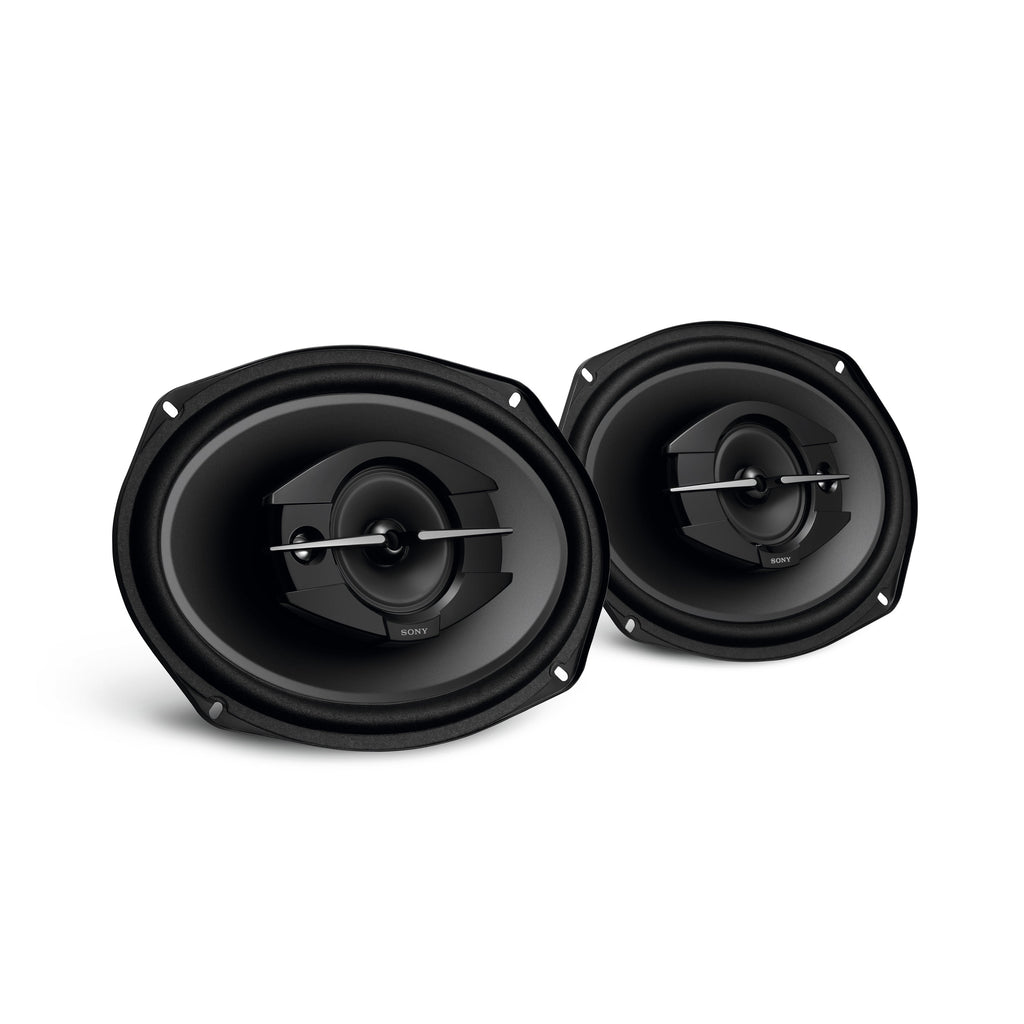

The Sony XSGTF6939 is a 6x9 inch full range 3 way pair of speakers. This unit has a peak power of 420w with an total RMS rating of 60W. The effective Frequency range on the XSGTF6939 is 50-22,000Hz. The tweeter is a Balanced Dome.
Size & Weight
- Dimensions (W X H X D): 237mm x 168mm x (73mm + 21.9mm) H
- Weight (Driver Unit): 1040g
Speaker System
- Configuration: Full range 3way
General Features
- Peak Power: 420w
- RMS Power: 60W
- Effective Frequency Range: 50-22,000Hz
- Output Sound Pressure: 92dB
Woofer
- Type: Cone (PP+mica)
- Surround Material: Rubber coated cloth surround
- Woofer Magnet Material: Ferrite
Tweeter
- Type: Cone
- Diameter: φ66 mm
- Tweeter Diaphragm Material: PEI
- Tweeter Magnet Material: Ferrite
Super Tweeter
- Super Tweeter Type: Piezo
- Super Tweeter Diaphragm Material: PEI
What's in the Box
- Supplied Accessories: Speaker cord (*m x2): 0.3m x 2
